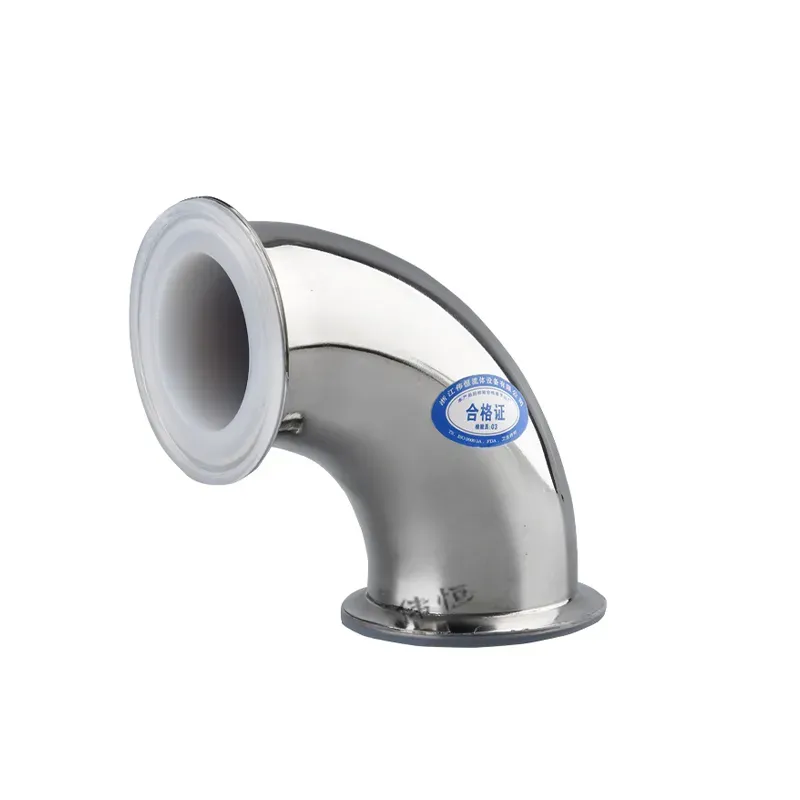

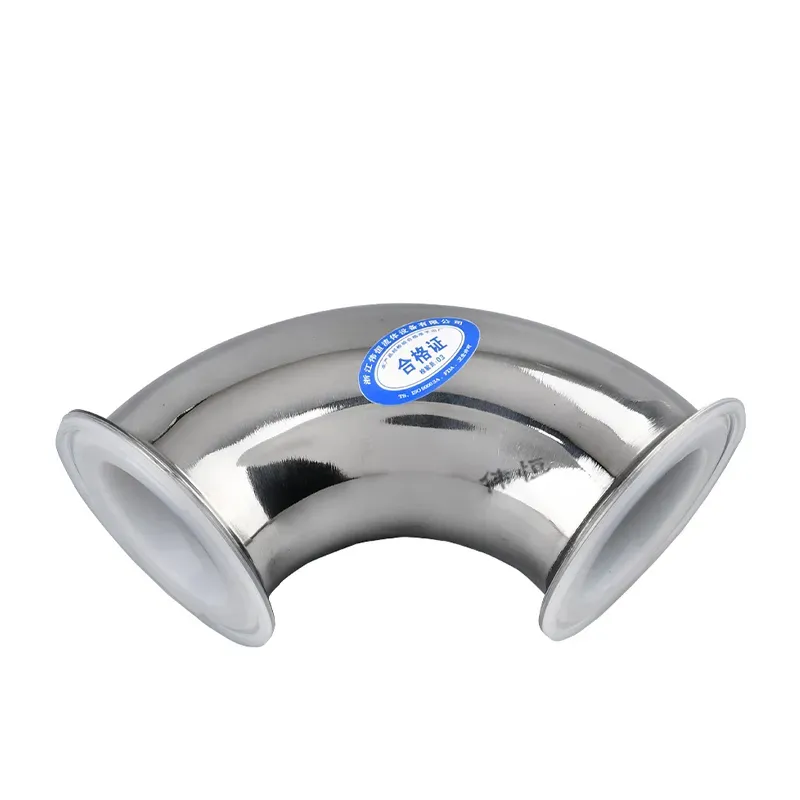

Description
Fluorine lined three-way quick clamp elbow is a kind of high-performance pipe connection, using high-quality materials and advanced technology manufacturing, it has excellent corrosion resistance, sealing performance and convenient installation method, suitable for a variety of strong corrosive media environment, the product is widely used in chemical, petroleum pharmaceutical and other fields, can effectively improve production efficiency and reduce maintenance costs.
Main characteristics
1. Quick clamp pipe fittings: quick clamp method is adopted to achieve quick installation and disassembly of pipes, convenient and quick, saving time.
2. Fluorine lined material: The inner pipe is covered with a thick layer of fluorine plastic, which has good corrosion resistance, insulation and chemical stability, and can effectively resist the erosion of various corrosive media such as strong acids and alkali.
3. Three-way structure: The use of high-quality seamless steel pipe, precision machining and welding, the structure is solid and reliable, can withstand greater pressure and vibration.
4. Sealing performance: The sealing ring is made of fluororubber material with strong corrosion resistance, which has good elasticity and sealing performance, and can effectively prevent medium leakage.
5. High temperature and high pressure: It can work in high temperature and high pressure environment to meet the needs of various industrial pipelines.
6. Anti-corrosion and anti-rust: the surface is sprayed with anti-rust paint to effectively prevent rust and corrosion and ensure long-term use effect.
7. Chemical corrosion resistance: suitable for a variety of strong acid, alkali and other corrosive media environment, to ensure the normal operation of the pipeline system. 8. Connection mode: Through the quick fitting joint to achieve pipe connection, simple and convenient operation, can be applied to all kinds of pipe diameter pipe connection.
There are various standard valve series can be supplied, they are the DIN,3A, SMS, ISO/IDF, BS/RJT, ASME/BPE standard etc. You can choose us with confidence, our products meet the standards of multiple regions, such as American Standards, Japanese Industrial Standard, Korean Standard, German Standard and Italian Standard. The constitute elements of ball valve always included: one handle, one ball body with transfixion cavity, valve body, valve central spindle and spindle shaft seal.
Specification:
Name: Fluorine lined three-way quick clamp elbow
Size: 1/2"-6"
Material: Stainless steel 304/304L, stainless steel 316/316L
Color: Silver
Head Code: Round
Ends: Welded, clamp, union, threads ( internal/external thread)
Finish: mirror polish, sub-light, 180G, 240G, 400G
Material of Seal: PTFE, SI, FEP, PFA, EPDM, NBR, FDA177.2600
Medium: Beer, dairy, beverage, pharmacy, cosmetics, fruit juice, liquor, red wine, chemical, chemical reagent, daily chemical, medicine, injection, botany, organic raw material, fermentation, adhesive, perfume, essential oil
WH sanitary Fluorine Lined Quick Clamp Elbow: The Ultimate Guide

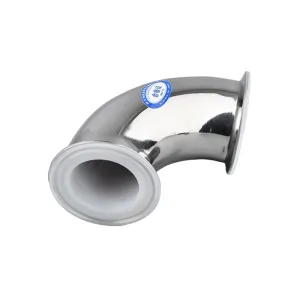

Introduction to WH Sanitary Fluorine Lined Quick Clamp Elbow
The WH Sanitary Fluorine Lined Quick Clamp Elbow is a high-performance piping component designed for industries requiring strict hygiene standards, corrosion resistance, and easy installation. This product is widely used in pharmaceutical, food & beverage, biotechnology, and chemical processing applications where cleanliness and durability are critical.
In this comprehensive guide, we will explore the features, benefits, applications, and maintenance of the WH Sanitary Fluorine Lined Quick Clamp Elbow, ensuring you have all the necessary information to make an informed purchasing decision.
---
Key Features of WH Sanitary Fluorine Lined Quick Clamp Elbow
1. Superior Corrosion Resistance
The WH Sanitary Fluorine Lined Quick Clamp Elbow is lined with high-quality fluorine materials (such as PTFE or PFA), providing excellent resistance to aggressive chemicals, acids, and solvents. This makes it ideal for harsh industrial environments.
2. Sanitary Design for Hygienic Applications
Designed with a smooth, crevice-free interior surface, this elbow prevents bacterial growth and contamination, meeting FDA, 3-A, and EHEDG standards for sanitary fittings.
3. Quick Clamp Connection for Easy Installation
The quick clamp (tri-clamp) design allows for fast and secure connections without the need for welding or threading. This ensures leak-proof performance while reducing downtime during assembly or maintenance.
4. High-Temperature Resistance
With a temperature range of -20°C to 180°C (-4°F to 356°F), the fluorine-lined elbow maintains structural integrity even in extreme thermal conditions.
5. Durable and Long-Lasting
Constructed from high-grade stainless steel (304 or 316L) with a fluorine lining, this elbow offers superior durability, reducing the need for frequent replacements.
6. Available in Multiple Angles
The WH Sanitary Fluorine Lined Quick Clamp Elbow comes in standard angles such as 45°, 90°, and 180°, providing flexibility in piping system design.
7. Compliance with Industry Standards
This product complies with ASME BPE, DIN, ISO, and SMS standards, ensuring reliability and compatibility with global sanitary piping systems.
---
Applications of WH Sanitary Fluorine Lined Quick Clamp Elbow
Due to its exceptional properties, the WH Sanitary Fluorine Lined Quick Clamp Elbow is used in various industries, including:
1. Pharmaceutical Industry
- Used in sterile processing, CIP/SIP systems, and biopharmaceutical manufacturing where contamination-free fluid transfer is crucial.
2. Food & Beverage Industry
- Ideal for dairy, brewing, and juice processing, ensuring hygienic and corrosion-resistant fluid handling.
3. Biotechnology & Life Sciences
- Suitable for fermentation, cell culture, and vaccine production, where high-purity fluid transfer is required.
4. Chemical Processing
- Resistant to acids, alkalis, and solvents, making it perfect for aggressive chemical transfer applications.
5. Cosmetics & Personal Care
- Used in cream, lotion, and perfume production, maintaining product purity and preventing contamination.
---
Advantages of Using WH Sanitary Fluorine Lined Quick Clamp Elbow
1. Enhanced Safety & Hygiene
The smooth, non-porous surface prevents microbial buildup, ensuring compliance with strict sanitary regulations.
2. Reduced Maintenance Costs
The corrosion-resistant fluorine lining minimizes wear and tear, lowering long-term maintenance expenses.
3. Quick & Easy Installation
The tri-clamp connection allows for rapid assembly and disassembly, improving operational efficiency.
4. Versatility in Harsh Environments
Whether handling high temperatures, aggressive chemicals, or ultra-pure fluids, this elbow performs reliably.
5. Long Service Life
The stainless steel construction with fluorine lining ensures durability, reducing replacement frequency.
---
How to Choose the Right WH Sanitary Fluorine Lined Quick Clamp Elbow
When selecting a WH Sanitary Fluorine Lined Quick Clamp Elbow, consider the following factors:
1. Material Compatibility
- Ensure the fluorine lining is suitable for the chemicals or fluids in your application.
2. Size & Angle Requirements
- Choose the correct diameter (1/2" to 6") and angle (45°, 90°, or 180°) for your piping system.
3. Temperature & Pressure Ratings
- Verify that the elbow can withstand your operating conditions.
4. Regulatory Compliance
- Check for FDA, 3-A, or ASME BPE certifications if required for your industry.
5. Supplier Reputation
- Purchase from trusted manufacturers to ensure quality and reliability.
---
Installation & Maintenance Tips
Installation Steps:
1. Inspect the Elbow – Check for any defects before installation.
2. Align the Pipes – Ensure proper alignment to prevent stress on the connection.
3. Secure with Tri-Clamp – Tighten the clamp evenly for a leak-proof seal.
4. Pressure Test – Conduct a test run to confirm no leaks.
Maintenance Best Practices:
- Regular Inspections – Check for wear, cracks, or chemical degradation.
- Proper Cleaning – Use approved cleaning agents to maintain hygiene.
- Avoid Over-Tightening – Excessive force can damage the gasket or flange.
---
Conclusion
The WH Sanitary Fluorine Lined Quick Clamp Elbow is an essential component for industries requiring hygienic, corrosion-resistant, and easy-to-install piping solutions. Its fluorine lining, quick clamp design, and compliance with industry standards make it a top choice for pharmaceutical, food & beverage, biotechnology, and chemical processing applications.
By selecting the right size, material, and angle, you can optimize your fluid handling system for maximum efficiency, safety, and longevity.
For more information on sanitary fittings, quick clamp elbows, and fluorine-lined piping solutions, explore our detailed product guides and industry insights.
---
SEO-Optimized Keywords:
- Sanitary Fluorine Lined elbow
- Quick Clamp Elbow for Hygienic Applications
- PTFE/PFA Lined Sanitary Fittings
- Tri-Clamp Fluorine Lined Elbow
- Corrosion-Resistant Sanitary Elbow
- FDA-Compliant Piping Components
- ASME BPE Sanitary Fittings
- High-Purity Fluid Transfer Elbow
This guide ensures you have all the necessary details about the WH Sanitary Fluorine Lined Quick Clamp Elbow, helping you make an informed decision for your industrial needs.
Would you like additional information on custom sizes, pressure ratings, or specific industry applications? Let us know in the comments!
