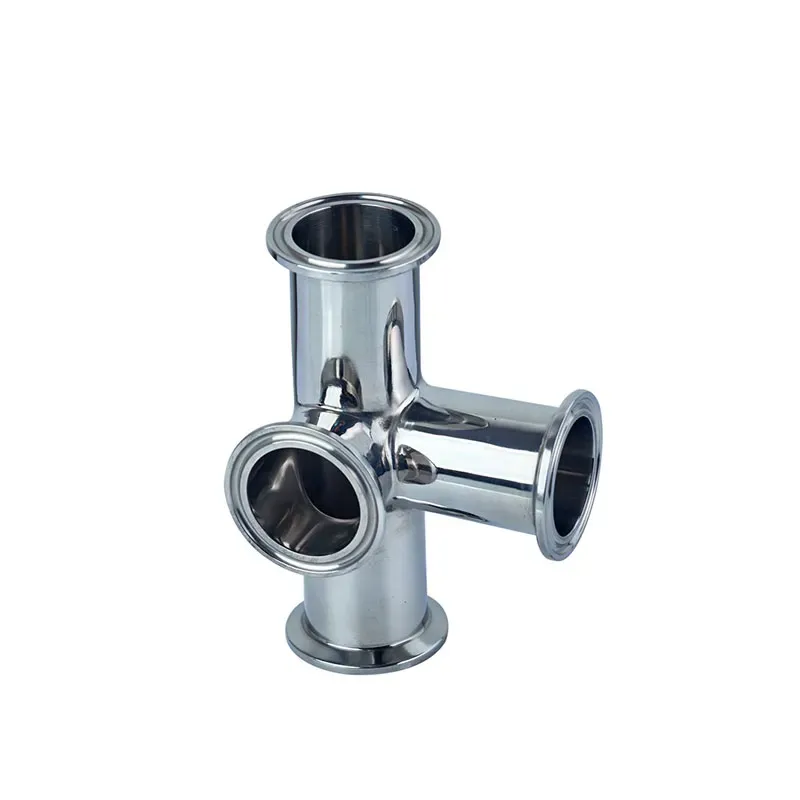

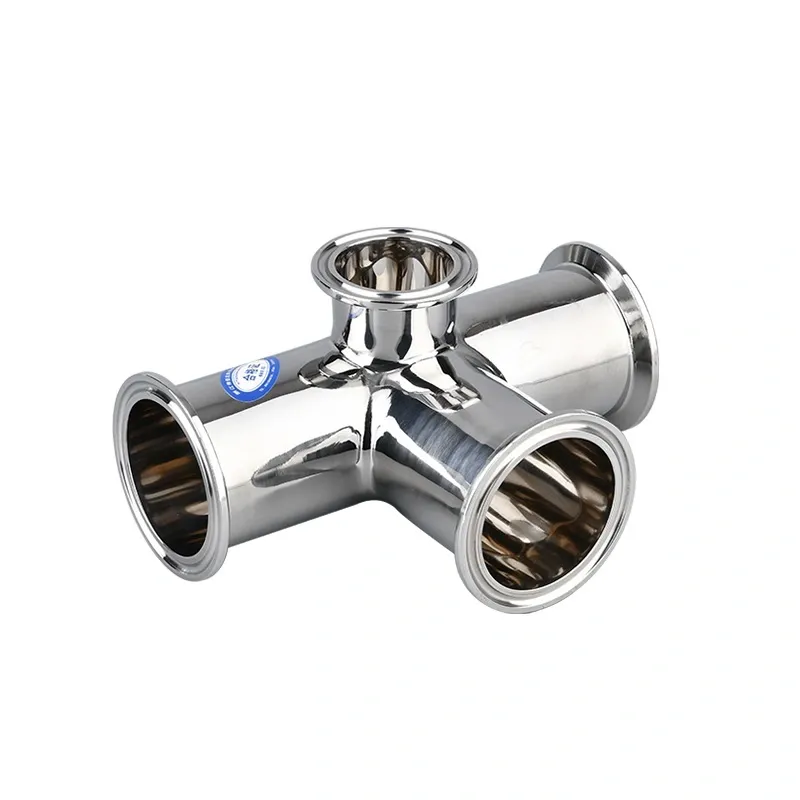

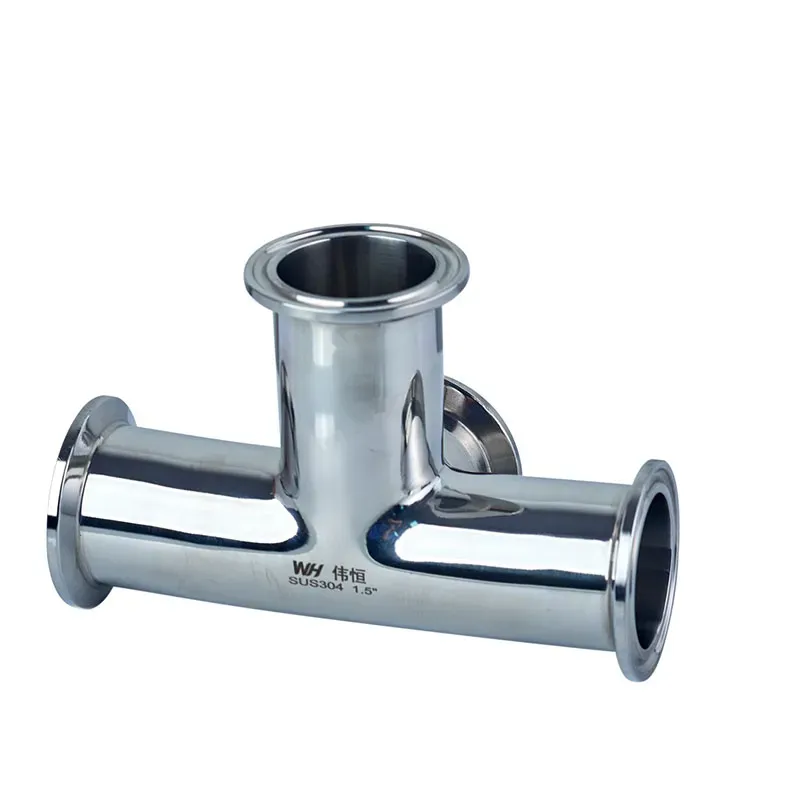

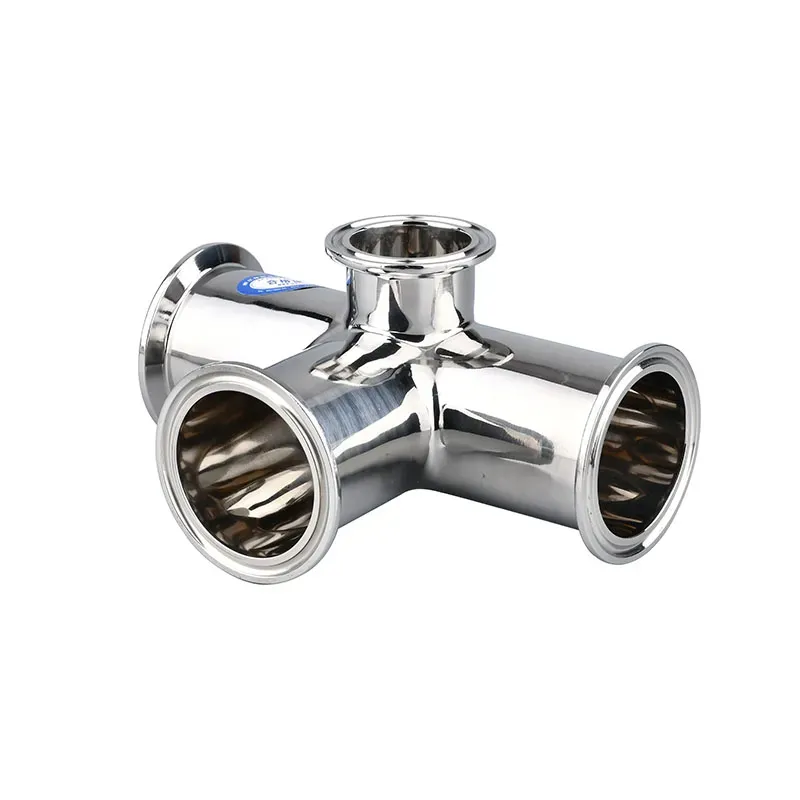

WH Sanitary Quick Clamp Four-Way Pipe

The WH Sanitary Quick Clamp Four-Way Pipe is a high-quality, hygienic piping solution designed for industries requiring strict sanitary standards, such as food & beverage, pharmaceuticals, biotechnology, and dairy processing. This product ensures smooth fluid transfer while maintaining cleanliness and preventing contamination.

Inquiry

E-mail：954089460@qq.com

WhatsApp：8615989663947

Detailed Description
Product Encyclopedia

Description

Fluorine lined three-way quick clamp elbow is a kind of high-performance pipe connection, using high-quality materials and advanced technology manufacturing, it has excellent corrosion resistance, sealing performance and convenient installation method, suitable for a variety of strong corrosive media environment, the product is widely used in chemical, petroleum pharmaceutical and other fields, can effectively improve production efficiency and reduce maintenance costs.

Main characteristics

1. Quick clamp pipe fittings: quick clamp method is adopted to achieve quick installation and disassembly of pipes, convenient and quick, saving time.

2. Fluorine lined material: The inner pipe is covered with a thick layer of fluorine plastic, which has good corrosion resistance, insulation and chemical stability, and can effectively resist the erosion of various corrosive media such as strong acids and alkali.

3. Three-way structure: The use of high-quality seamless steel pipe, precision machining and welding, the structure is solid and reliable, can withstand greater pressure and vibration.

4. Sealing performance: The sealing ring is made of fluororubber material with strong corrosion resistance, which has good elasticity and sealing performance, and can effectively prevent medium leakage.

5. High temperature and high pressure: It can work in high temperature and high pressure environment to meet the needs of various industrial pipelines.

6. Anti-corrosion and anti-rust: the surface is sprayed with anti-rust paint to effectively prevent rust and corrosion and ensure long-term use effect.

7. Chemical corrosion resistance: suitable for a variety of strong acid, alkali and other corrosive media environment, to ensure the normal operation of the pipeline system. 8. Connection mode: Through the quick fitting joint to achieve pipe connection, simple and convenient operation, can be applied to all kinds of pipe diameter pipe connection.

There are various standard valve series can be supplied, they are the DIN,3A, SMS, ISO/IDF, BS/RJT, ASME/BPE standard etc. You can choose us with confidence, our products meet the standards of multiple regions, such as American Standards, Japanese Industrial Standard, Korean Standard, German Standard and Italian Standard. The constitute elements of ball valve always included: one handle, one ball body with transfixion cavity, valve body, valve central spindle and spindle shaft seal.

Specification:

Name: Fluorine lined three-way quick clamp elbow

Size: 1/2"-6"

Material: Stainless steel 304/304L, stainless steel 316/316L

Color: Silver

Head Code: Round

Ends: Welded, clamp, union, threads ( internal/external thread)

Finish: mirror polish, sub-light, 180G, 240G, 400G

Material of Seal: PTFE, SI, FEP, PFA, EPDM, NBR, FDA177.2600

Medium: Beer, dairy, beverage, pharmacy, cosmetics, fruit juice, liquor, red wine, chemical, chemical reagent, daily chemical, medicine, injection, botany, organic raw material, fermentation, adhesive, perfume, essential oil

WH Sanitary Quick Clamp Four-Way Pipe Product Introduction

Introduction to WH Sanitary Quick Clamp Four-Way Pipe

With its quick clamp (tri-clamp) connection, the WH Sanitary Four-Way Pipe allows for easy assembly, disassembly, and cleaning, making it ideal for applications where frequent maintenance is necessary. The four-way design enables efficient fluid distribution in complex piping systems, reducing the need for multiple fittings and improving workflow efficiency.

Key Features of WH Sanitary Quick Clamp Four-Way Pipe

1. Sanitary Design for Hygienic Applications

The WH Sanitary Quick Clamp Four-Way Pipe is manufactured from high-grade stainless steel (304 or 316L), ensuring excellent corrosion resistance and durability. The smooth, polished interior surface (Ra ≤ 0.8µm) minimizes bacterial buildup, making it compliant with FDA, EHEDG, and 3-A Sanitary Standards.

2. Quick Clamp (Tri-Clamp) Connection

The tri-clamp fitting ensures a secure, leak-proof connection while allowing for fast installation and removal. This feature is particularly beneficial in industries requiring CIP (Clean-in-Place) and SIP (Sterilize-in-Place) processes.

3. Four-Way Distribution for Efficient Flow

The four-way pipe design allows for multi-directional fluid distribution, reducing the need for additional connectors. This improves system efficiency and minimizes pressure drops in pipelines.

4. High-Pressure and Temperature Resistance

The WH Sanitary Four-Way Pipe can withstand high-pressure environments (up to 10 bar) and temperatures ranging from -10°C to 120°C, making it suitable for various industrial applications.

5. Easy Maintenance and Cleaning

Thanks to its quick-release clamp mechanism, the pipe can be disassembled effortlessly for thorough cleaning and inspection, ensuring compliance with strict hygiene regulations.

Applications of WH Sanitary Quick Clamp Four-Way Pipe

The WH Sanitary Four-Way Pipe is widely used in industries where hygienic fluid transfer is critical, including:

- Food & Beverage Industry – For milk, juice, beer, and other liquid processing.

- Pharmaceutical & Biotechnology – Ensures contamination-free transfer of sensitive fluids.

- Dairy Processing – Maintains hygiene in milk and cream distribution systems.

- Cosmetics & Personal Care – Used in the production of lotions, creams, and sanitizers.

Benefits of Using WH Sanitary Quick Clamp Four-Way Pipe

✅ Improved Hygiene & Safety

The sanitary design prevents bacterial growth and contamination, ensuring product safety.

✅ Reduced Downtime

The quick clamp system allows for fast assembly and disassembly, minimizing production interruptions.

✅ Cost-Effective Solution

By reducing the need for multiple fittings, the four-way pipe lowers installation and maintenance costs.

✅ Long Service Life

Made from high-quality stainless steel, the pipe offers excellent durability even in harsh environments.

Technical Specifications

| Parameter | Specification |

|------------------------|------------------|

| Material | 304 / 316L Stainless Steel |

| Surface Finish | Ra ≤ 0.8µm (Electropolished) |

| Connection Type | Tri-Clamp (Quick Clamp) |

| Pressure Rating | Up to 10 bar |

| Temperature Range | -10°C to 120°C |

| Standards Compliance | FDA, EHEDG, 3-A |

Conclusion

The WH Sanitary Quick Clamp Four-Way Pipe is an essential component for industries requiring hygienic, efficient, and durable fluid distribution systems. Its quick clamp design, four-way configuration, and high-grade stainless steel construction make it a top choice for food processing, pharmaceuticals, and biotechnology applications.

For businesses looking for a reliable, easy-to-clean, and long-lasting Sanitary Pipe solution, the WH Sanitary Four-Way Pipe delivers superior performance and compliance with industry standards.

---
