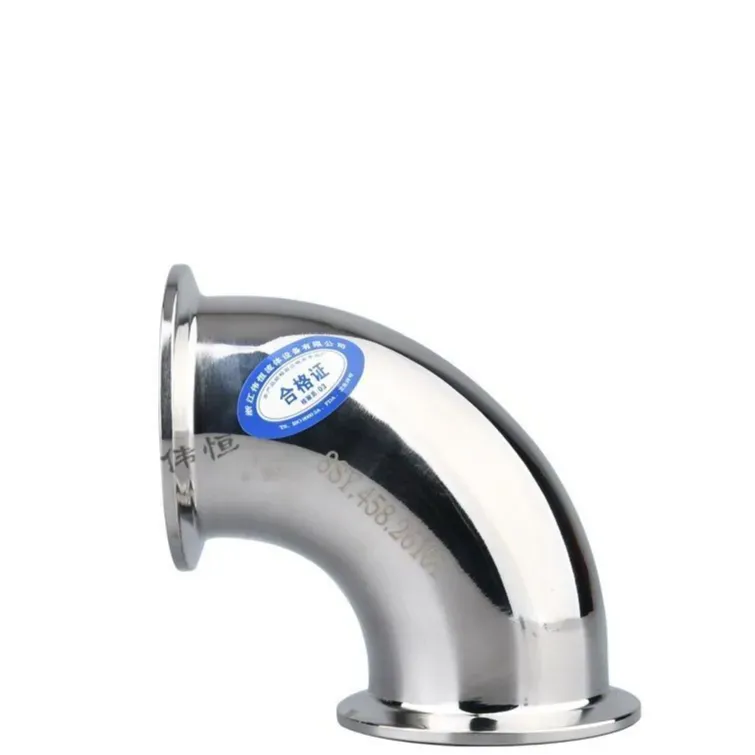

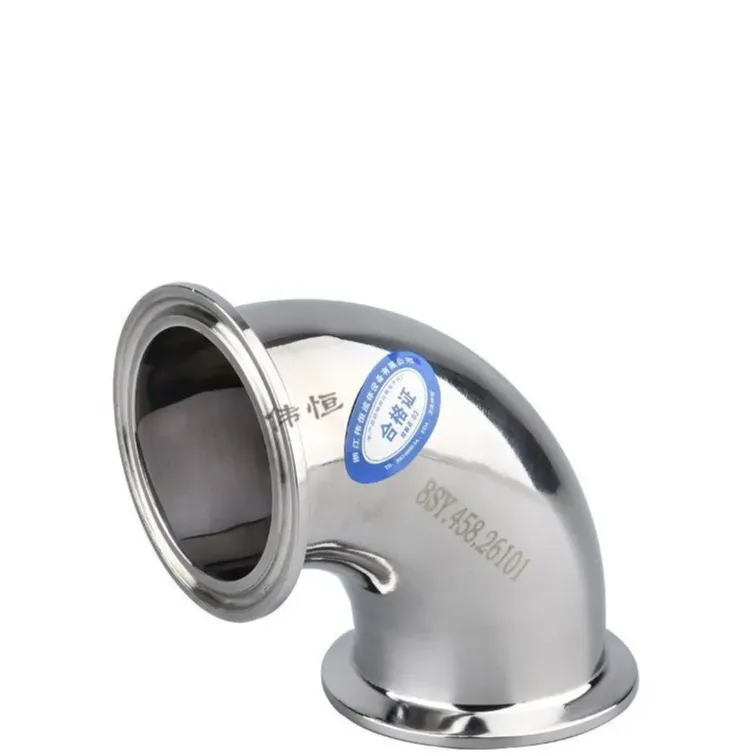

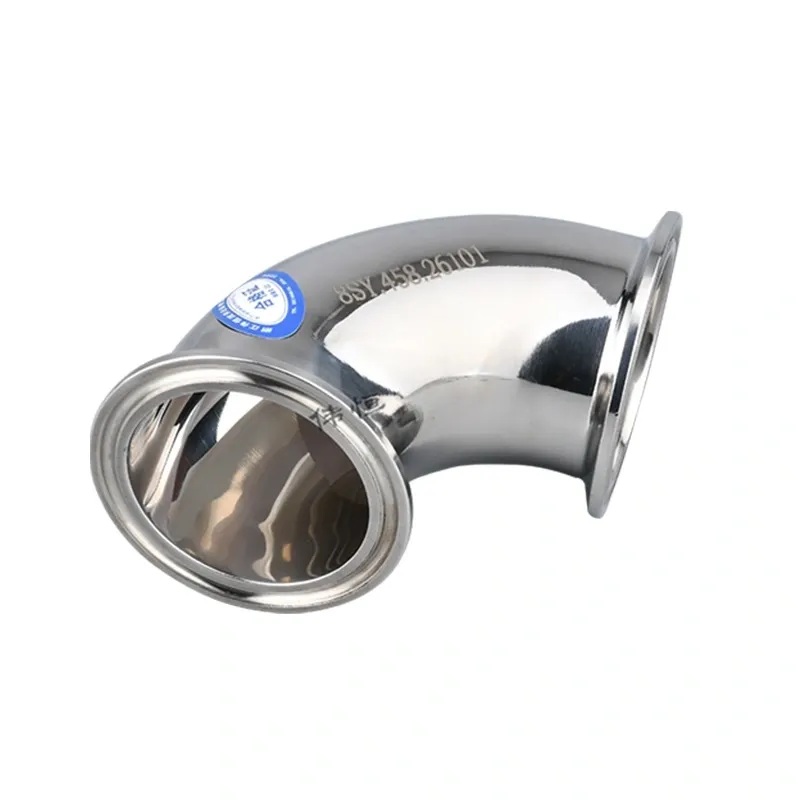

WH Sanitary 90 Degree Quick Clamp Elbow: The Ultimate Product Guide (SEO Optimized)

 Introduction to WH Sanitary 90 Degree Quick Clamp Elbow

The WH Sanitary 90 Degree Quick Clamp Elbow represents a pinnacle of engineering in fluid handling systems, designed specifically for industries requiring the highest standards of hygiene and efficiency. This premium sanitary fitting has become an essential component in pharmaceutical, food & beverage, biotechnology, and cosmetic processing applications where contamination-free transfer is critical.

As a 90-degree elbow with quick clamp connection, this product offers unparalleled convenience in installation and maintenance while maintaining strict sanitary standards. The unique design ensures smooth product flow with minimal pressure drop, making it ideal for processes where product integrity and system efficiency are equally important.

 Key Features and Benefits

 1. Superior Hygienic Design

The WH Sanitary 90 Degree Quick Clamp Elbow features a polished interior surface with a Ra ≤ 0.8 μm finish, exceeding industry standards for cleanability. This mirror-like finish prevents bacterial growth and product buildup, crucial for maintaining sanitary conditions in sensitive processing environments.

 2. Quick Clamp Connection System

The innovative quick clamp mechanism allows for:

- Tool-free assembly and disassembly

- Rapid connection changes during product switchovers

- Secure sealing without thread wear issues

- Visual verification of proper connection

This system significantly reduces downtime during cleaning and maintenance procedures compared to threaded alternatives.

 3. Precision 90-Degree Angle

Engineered with exacting tolerances, the elbow maintains:

- Perfect perpendicular alignment for space-constrained installations

- Consistent flow characteristics

- Optimal directional change with minimal turbulence

- Compatibility with standard piping layouts

 4. Premium Material Construction

Available in multiple material grades to suit various applications:

- 316L stainless steel (standard)

- 304 stainless steel (cost-effective alternative)

- Electropolished options for ultra-sanitary requirements

- Optional special alloys for corrosive media

 5. Compliance with International Standards

The product meets or exceeds:

- 3-A Sanitary Standards

- EHEDG guidelines

- FDA requirements for food contact

- ASME BPE specifications for bioprocessing

 Technical Specifications

 Dimensions and Measurements

| Parameter | Specification |

|-----------|--------------|

| Size Range | 1/2" to 6" (DN15 to DN150) |

| Angle | 90 degrees (±0.5°) |

| Connection Type | Tri-clamp (Sanitary Clamp) |

| Wall Thickness | Schedule 5S to 10S |

| Surface Finish | ≤ 0.8 μm Ra (standard) |

 Performance Characteristics

- Pressure Rating: 150 psi (10 bar) at 100°F (38°C)

- Temperature Range: -20°F to 400°F (-29°C to 204°C)

- Maximum Vacuum: 29" Hg (full vacuum)

- Material Hardness: 80-90 HRB (annealed condition)

 Applications Across Industries

 Pharmaceutical Manufacturing

In sterile drug production, the WH Sanitary 90 Degree Quick Clamp Elbow provides:

- Cleanable surfaces for validated cleaning processes

- Smooth transitions to prevent dead legs

- Material traceability for regulatory compliance

 Food and Beverage Processing

Essential for:

- Dairy product transfer lines

- Brewery and winery piping systems

- High-acid food processing

- Aseptic filling operations

 Biotechnology

Ideal for:

- Cell culture media transfer

- Buffer preparation systems

- Purification process piping

- Clean-in-place (CIP) systems

 Cosmetic Production

Benefits include:

- Prevention of product contamination

- Easy disassembly for batch changeovers

- Compatibility with various cosmetic formulations

 Installation Guidelines

 Proper Assembly Procedure

1. Inspect all sealing surfaces for damage or contamination

2. Position gasket correctly on the ferrules

3. Align elbow with connecting piping

4. Engage clamp and tighten evenly (hand-tight plus 1/4 turn)

5. Verify proper alignment and connection security

 Common Installation Mistakes to Avoid

- Over-tightening clamps (can deform ferrules)

- Using damaged or incorrect gaskets

- Improper gasket positioning

- Mixing components from different manufacturers

- Ignoring proper support for piping systems

 Maintenance and Cleaning

 Routine Inspection Checklist

- Visual examination for surface defects

- Gasket condition assessment

- Verification of clamp tightness

- Check for signs of corrosion or erosion

- Inspection of interior surfaces for buildup

 Cleaning Recommendations

For optimal performance:

- Use approved CIP procedures

- Follow validated cleaning protocols

- Select appropriate cleaning agents

- Maintain proper flow velocities during cleaning

- Document all cleaning activities

 Replacement Indicators

Consider replacing the elbow when observing:

- Visible pitting or corrosion

- Surface scratches affecting cleanability

- Deformation of ferrules

- Recurrent leakage issues

- After specified service life in critical applications

 Comparison with Alternative Products

 Advantages Over Threaded Elbows

- Faster installation and removal

- No thread galling or seizing

- Better cleanability

- More reliable sealing

- Visual connection verification

 Benefits Compared to Welded Connections

- No heat-affected zones

- Easier system modifications

- Simplified inspection

- Reduced downtime for changes

- No special welding skills required

 Superiority to Compression Fittings

- More hygienic design

- Fewer crevices for contamination

- Standardized dimensions

- Higher pressure capability

- Better durability

 Customization Options

 Available Modifications

- Special material certifications (EN 10204 3.1)

- Unique surface finishes (electropolished, passivated)

- Custom markings or laser etching

- Non-standard sizes (upon request)

- Special alloy versions (Hastelloy, Titanium)

 Complementary Accessories

- Matching sanitary clamps

- FDA-compliant gaskets

- Support brackets

- Protective caps

- Installation tools

 Quality Assurance and Testing

 Manufacturing Controls

- Material certification verification

- Dimensional inspection

- Surface finish testing

- Visual examination

- Pressure testing (sample basis)

 Performance Validation

- Flow characteristics analysis

- Cleanability testing

- Material compatibility studies

- Long-term durability assessments

 Environmental and Safety Considerations

 Sustainable Features

- 100% recyclable materials

- Long service life reduces waste

- Energy-efficient manufacturing

- Reduced water usage in cleaning

- Lower carbon footprint than alternatives

 Safety Aspects

- Smooth surfaces prevent injury

- Secure connections prevent leaks

- High visibility for hazard identification

- Fire-resistant materials

- Non-toxic composition

 Frequently Asked Questions

 Q: What makes this elbow "sanitary"?

A: The combination of high-quality materials, superior surface finish, cleanable design, and quick-disconnect features meet strict hygienic standards for sensitive applications.

 Q: How often should gaskets be replaced?

A: Gaskets should be replaced at every disassembly or according to your preventive maintenance schedule, typically every 6-12 months depending on use.

 Q: Can this elbow handle steam cleaning?

A: Yes, the standard version can withstand intermittent steam cleaning up to 204°C (400°F). For frequent steam use, specify high-temperature gaskets.

 Q: Is electropolishing necessary?

A: Electropolishing provides the smoothest surface (≤ 0.5 μm Ra) for ultra-sanitary applications but adds cost. Standard mechanical polishing suffices for many uses.

 Q: How do I determine the right size?

A: Match the elbow size to your existing piping system. The number (e.g., 1", 2") refers to the nominal pipe size the fitting accommodates.

 Conclusion

The WH Sanitary 90 Degree Quick Clamp Elbow stands as an optimal solution for industries demanding uncompromising hygiene standards combined with operational efficiency. Its thoughtful design addresses the critical needs of modern processing facilities while offering practical advantages in installation, maintenance, and long-term performance.

By selecting this high-quality sanitary fitting, operations managers and engineers can ensure reliable product transfer, reduce contamination risks, and maintain efficient processing systems. The combination of premium materials, precision engineering, and user-friendly features makes this elbow a smart investment for any sanitary piping system.

For operations requiring the highest levels of cleanliness and reliability, the WH Sanitary 90 Degree Quick Clamp Elbow delivers exceptional value through superior performance, reduced maintenance costs, and compliance with stringent industry standards. Its versatility across multiple industries and applications makes it an essential component in modern hygienic fluid handling systems.
