Description
Fluorine lined three-way quick clamp elbow is a kind of high-performance pipe connection, using high-quality materials and advanced technology manufacturing, it has excellent corrosion resistance, sealing performance and convenient installation method, suitable for a variety of strong corrosive media environment, the product is widely used in chemical, petroleum pharmaceutical and other fields, can effectively improve production efficiency and reduce maintenance costs.
Main characteristics
1. Quick clamp pipe fittings: quick clamp method is adopted to achieve quick installation and disassembly of pipes, convenient and quick, saving time.
2. Fluorine lined material: The inner pipe is covered with a thick layer of fluorine plastic, which has good corrosion resistance, insulation and chemical stability, and can effectively resist the erosion of various corrosive media such as strong acids and alkali.
3. Three-way structure: The use of high-quality seamless steel pipe, precision machining and welding, the structure is solid and reliable, can withstand greater pressure and vibration.
4. Sealing performance: The sealing ring is made of fluororubber material with strong corrosion resistance, which has good elasticity and sealing performance, and can effectively prevent medium leakage.
5. High temperature and high pressure: It can work in high temperature and high pressure environment to meet the needs of various industrial pipelines.
6. Anti-corrosion and anti-rust: the surface is sprayed with anti-rust paint to effectively prevent rust and corrosion and ensure long-term use effect.
7. Chemical corrosion resistance: suitable for a variety of strong acid, alkali and other corrosive media environment, to ensure the normal operation of the pipeline system. 8. Connection mode: Through the quick fitting joint to achieve pipe connection, simple and convenient operation, can be applied to all kinds of pipe diameter pipe connection.
There are various standard valve series can be supplied, they are the DIN,3A, SMS, ISO/IDF, BS/RJT, ASME/BPE standard etc. You can choose us with confidence, our products meet the standards of multiple regions, such as American Standards, Japanese Industrial Standard, Korean Standard, German Standard and Italian Standard. The constitute elements of ball valve always included: one handle, one ball body with transfixion cavity, valve body, valve central spindle and spindle shaft seal.
Specification:
Name: Fluorine lined three-way quick clamp elbow
Size: 1/2"-6"
Material: Stainless steel 304/304L, stainless steel 316/316L
Color: Silver
Head Code: Round
Ends: Welded, clamp, union, threads ( internal/external thread)
Finish: mirror polish, sub-light, 180G, 240G, 400G
Material of Seal: PTFE, SI, FEP, PFA, EPDM, NBR, FDA177.2600
Medium: Beer, dairy, beverage, pharmacy, cosmetics, fruit juice, liquor, red wine, chemical, chemical reagent, daily chemical, medicine, injection, botany, organic raw material, fermentation, adhesive, perfume, essential oil

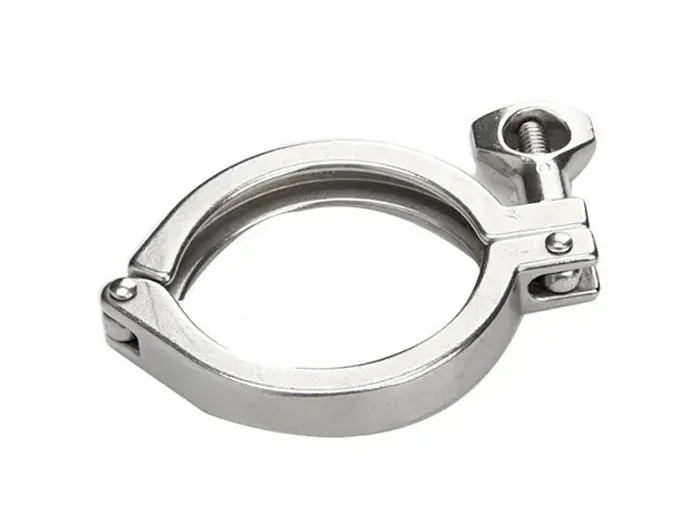

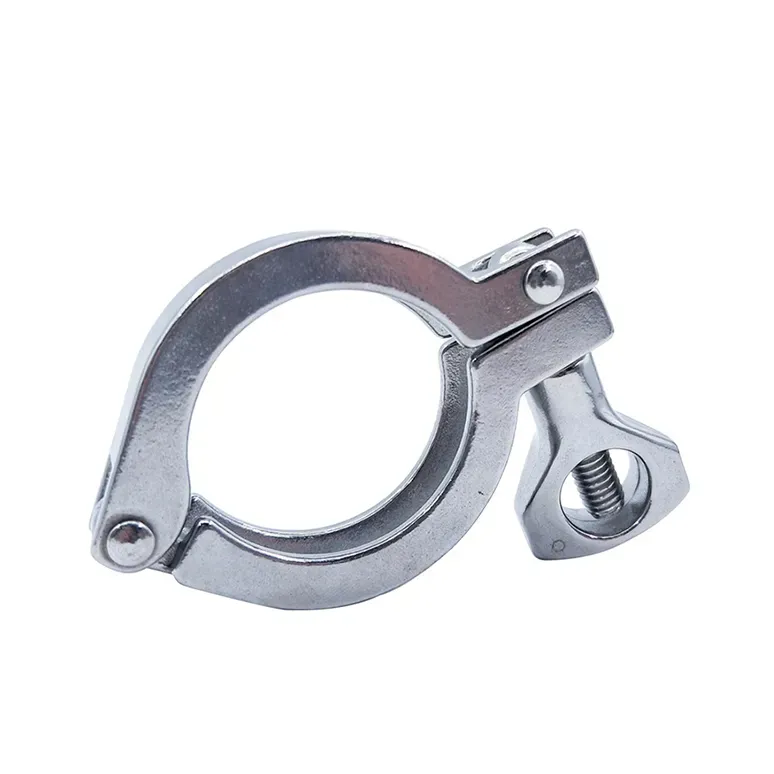

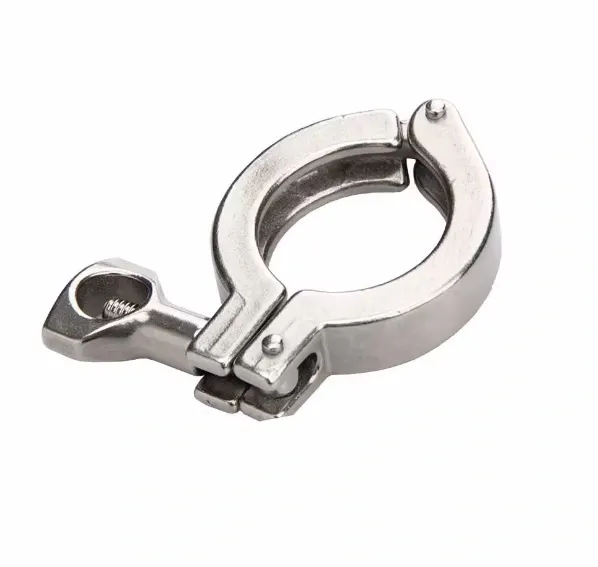

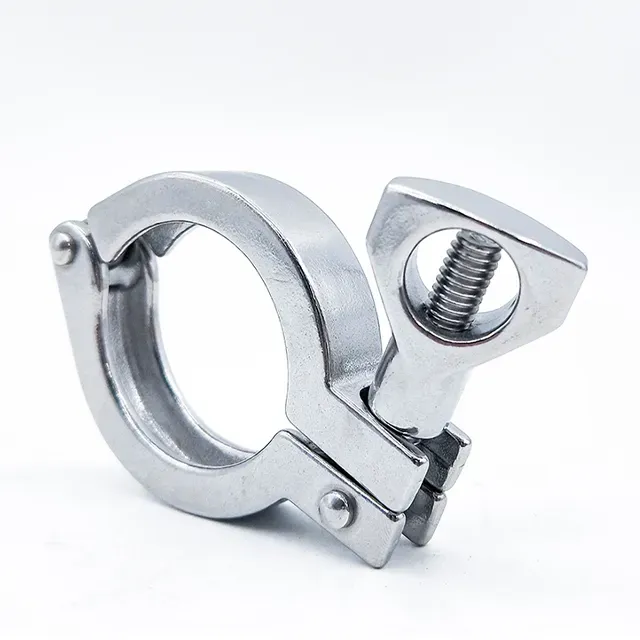

WH Sanitary Clamp Product Introduction: The Ultimate Guide for Hygienic Connections
Introduction to WH Sanitary Clamps
WH Sanitary Clamps are essential components in industries requiring high hygiene standards, such as food and beverage, pharmaceuticals, biotechnology, and dairy processing. These clamps provide secure, leak-proof connections for pipes, tubes, and fittings while ensuring easy disassembly for cleaning and maintenance.
This comprehensive guide covers everything you need to know about WH Sanitary Clamps, including their features, benefits, applications, and selection criteria. Whether you're an engineer, procurement specialist, or industry professional, this article will help you understand why WH Sanitary Clamps are the preferred choice for hygienic fluid handling systems.
Key Features of WH Sanitary Clamps
WH Sanitary Clamps are designed with precision to meet stringent industry standards. Here are their standout features:
1. Hygienic Design
- Smooth, crevice-free surfaces prevent bacterial growth.
- Compliant with FDA, EHEDG, and 3-A Sanitary Standards.
2. Material Options
- Stainless Steel (304/316L): Corrosion-resistant, durable, and ideal for high-pressure applications.
- Carbon Steel with Coating: Cost-effective for less demanding environments.
- Special Alloys: Available for extreme chemical resistance.
3. Easy Installation & Maintenance
- Quick-release mechanism for fast assembly and disassembly.
- No special tools required, reducing downtime.
4. Leak-Proof Performance
- Precision-engineered grooves ensure a tight seal with gaskets.
- Suitable for high-pressure and high-temperature applications.
5. Multiple Size & Pressure Ratings
- Available in sizes from ½" to 12" to fit various piping systems.
- Rated for pressures up to 150 PSI (depending on material and size).
Benefits of Using WH Sanitary Clamps
1. Enhanced Hygiene & Safety
- Prevents contamination in sensitive industries like pharmaceuticals and food processing.
- Easy to clean and sterilize, reducing the risk of microbial buildup.
2. Cost-Effective Solution
- Reduces maintenance costs with long-lasting durability.
- Minimizes product loss due to leaks.
3. Versatility Across Industries
- Used in food & beverage, dairy, biotech, cosmetics, and chemical processing.
- Compatible with various gasket materials (EPDM, silicone, PTFE).
4. Compliance with Global Standards
- Meets 3-A, ISO, ASME BPE, and EHEDG standards for hygienic fittings.
- Suitable for CIP (Clean-in-Place) and SIP (Sterilize-in-Place) systems.
Applications of WH Sanitary Clamps
WH Sanitary Clamps are widely used in industries where hygiene and contamination control are critical:
1. Food & Beverage Industry
- Connects piping in milk, juice, beer, and sauce processing.
- Ensures no bacterial contamination during production.
2. Pharmaceutical & Biotechnology
- Used in sterile fluid transfer systems.
- Essential for vaccine and drug manufacturing.
3. Dairy Processing
- Provides secure connections for milk, yogurt, and cheese production lines.
4. Cosmetic & Chemical Industries
- Prevents leaks in high-purity chemical transfers.
- Used in lotion, shampoo, and perfume manufacturing.
How to Choose the Right WH Sanitary Clamp
Selecting the correct sanitary clamp ensures optimal performance and longevity. Consider these factors:
1. Material Compatibility
- Stainless Steel 316L is best for corrosive environments.
- 304 Stainless Steel is suitable for general food-grade applications.
2. Size & Pressure Requirements
- Match the clamp size to the pipe diameter (e.g., 1", 2", 4").
- Check pressure ratings for high-pressure systems.
3. Gasket Selection
- EPDM: For hot water and steam.
- Silicone: For high-temperature applications.
- PTFE: For aggressive chemicals.
4. Compliance & Certifications
- Ensure clamps meet 3-A, FDA, or EHEDG standards if required.
Installation & Maintenance Tips
1. Proper Installation Steps
1. Align the pipes correctly before clamping.
2. Insert the gasket evenly between flanges.
3. Tighten the clamp evenly to avoid distortion.
2. Maintenance Best Practices
- Inspect gaskets regularly for wear and tear.
- Clean clamps after each use to prevent residue buildup.
- Replace damaged clamps immediately to avoid leaks.
Conclusion
WH Sanitary Clamps are indispensable in industries requiring hygienic, leak-proof connections. Their robust design, compliance with global standards, and ease of maintenance make them a top choice for food, pharmaceutical, and chemical processing applications.
By selecting the right material, size, and gasket combination, you can ensure optimal performance and longevity for your sanitary piping systems. Whether you're upgrading existing equipment or designing a new system, WH Sanitary Clamps provide a reliable, cost-effective solution for high-purity fluid transfer.
For more information on WH Sanitary Clamps, including technical specifications and customization options, consult with a trusted supplier today.
---
SEO-Optimized Keywords Included:
- WH Sanitary Clamp
- Hygienic clamp
- Stainless steel sanitary clamps
- Food-grade clamps
- Pharmaceutical clamps
- 3-A sanitary standards
- EHEDG compliant clamps
- High-pressure sanitary clamps
- CIP/SIP compatible clamps
This guide provides valuable insights while optimizing for search engines to help users find the best sanitary clamp solutions.
