In today’s highly controlled processing environments, maintaining both sanitary integrity and vacuum-rated performance is essential. A vacuum rated sanitary ball valve is specifically engineered to manage liquid or gas flow in systems that operate under vacuum or negative pressure.
These valves are designed with precision-polished stainless steel surfaces, FDA-approved sealing materials, and leak-tight structure, ensuring they meet the most demanding standards of hygiene and performance.
As a leading vacuum rated sanitary ball valve supplier, we offer complete valve solutions tailored for food & beverage, dairy, pharmaceutical, cosmetic, chemical, and biotechnology industries — where product purity and system reliability are paramount.

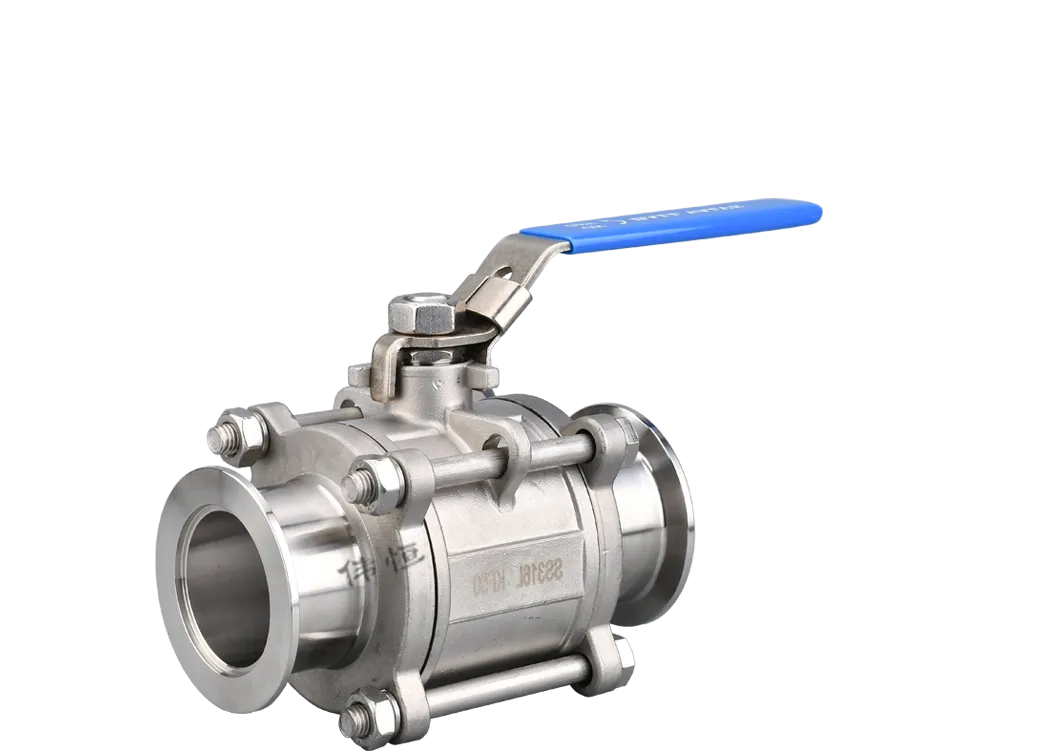

A vacuum rated sanitary ball valve is a type of hygienic valve that uses a spherical closure element (ball) to control flow. The ball has a central bore, allowing flow when aligned with the pipeline and stopping it when rotated 90°.
The key difference between a standard sanitary ball valve and a vacuum-rated one lies in its construction and sealing capability. A vacuum-rated design can maintain tight seals and prevent leakage even when exposed to vacuum or low-pressure environments.
Valve Body: 304 or 316L stainless steel for superior corrosion resistance.
Ball Element: Precision-polished stainless steel with mirror finish for minimal friction.
Sealing Seats: PTFE, TFM, or PEEK materials resistant to high temperature and vacuum conditions.
End Connections: Tri-clamp, weld, or thread types for flexible installation.
Actuator/Handle: Manual, pneumatic, or electric actuation options.
This design allows the valve to handle not only high-pressure conditions but also full vacuum (up to 10⁻⁶ torr) without deformation or leakage.
Vacuum rated sanitary ball valves incorporate advanced features that distinguish them from ordinary valves.
Manufactured from AISI 316L stainless steel, the valve offers excellent corrosion resistance, strength, and cleanliness. The internal surface is electropolished to a roughness average (Ra) ≤ 0.8 μm, preventing microbial buildup and ensuring easy cleaning.
These valves are designed for both positive pressure and full vacuum service, maintaining consistent performance across a wide range of operating pressures (up to 10 bar positive pressure and full vacuum).
All seals and seats are made from FDA-approved PTFE, EPDM, or FKM elastomers, ensuring compliance with sanitary regulations and compatibility with aggressive cleaning agents.
The precision-engineered stem packing and body gasket system provide leak-tight sealing, ensuring zero product loss and no contamination risk even under vacuum conditions.
Offered with tri-clamp, weld, thread, or flange ends, these valves provide flexibility for integration into various sanitary piping systems.

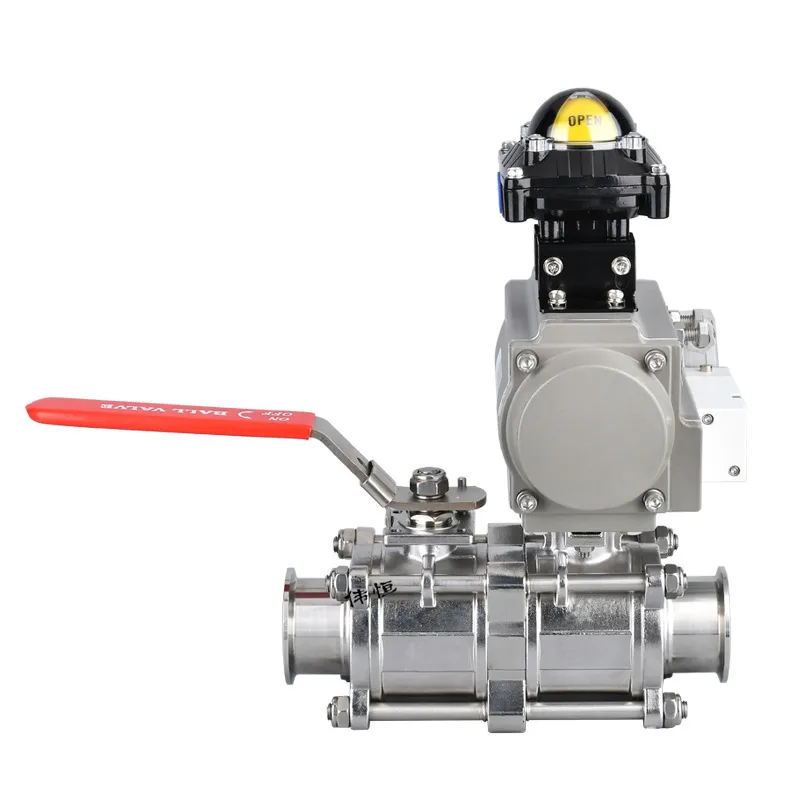

Available with pneumatic or electric actuators, allowing easy integration into automated process control systems for remote or programmable operation.
Designed for Clean-in-Place (CIP) and Sterilize-in-Place (SIP) operations, making them ideal for industries that require frequent sterilization without disassembly.
These valves perform multiple critical functions in sanitary systems:
Regulate or isolate fluid or gas flow accurately in both vacuum and pressure conditions.
Ensure complete isolation between product zones to prevent cross-contamination during processing or cleaning.
Maintain a stable vacuum environment by providing tight seals that prevent air ingress.
Prevent oxidation, contamination, or backflow that can compromise sensitive or sterile media.
Safeguard equipment and operators by ensuring controlled flow and preventing accidental discharge in vacuum systems.
Choosing vacuum rated sanitary ball valves from a trusted supplier offers numerous operational and economic advantages.
Engineered for demanding vacuum environments, these valves maintain full sealing even under negative pressure, ensuring reliability in sensitive processes.
Their smooth, crevice-free surfaces minimize bacterial growth and allow easy cleaning with standard CIP systems, reducing downtime.
Suitable for a wide variety of media — from water, milk, and beer to pharmaceutical-grade solvents and gases.
Robust construction materials and advanced seat design reduce wear, ensuring years of reliable operation with minimal maintenance.
Pneumatic or electric actuators allow seamless integration with PLC or DCS systems, improving process automation and efficiency.
Reduced maintenance, minimal product loss, and extended service life all contribute to lower total cost of ownership.
Vacuum rated sanitary ball valves are used across a broad range of industries that demand both hygienic and vacuum-capable solutions.
| Industry | Application Examples |
|---|---|
| Food & Beverage | Milk, juice, beer, wine, and syrup transfer under vacuum; bottling and filling systems |
| Dairy Processing | Evaporators, pasteurization lines, and vacuum concentrators |
| Pharmaceutical & Biotech | Fermentation systems, WFI (Water for Injection) lines, clean gas handling |
| Cosmetic & Chemical | Mixing, batching, and vacuum distillation processes |
| Vacuum Systems | Process chambers, packaging, and material drying systems |
Whether used for vacuum distillation, freeze drying, or sterile product transfer, these valves ensure secure, hygienic, and efficient operation.
| Parameter | Details |
|---|---|
| Body Material | SS304 / SS316L |
| Seat Material | PTFE / TFM / PEEK |
| Seal Material | EPDM / FKM / Silicone (FDA Approved) |
| Surface Finish | Ra ≤ 0.8 µm (Mirror Polished) |
| Pressure Range | Vacuum to 10 bar |
| Temperature Range | -20°C to +180°C |
| Connection Types | Tri-Clamp, Weld, Thread, Flange |
| Operation | Manual / Pneumatic / Electric |
| Sizes Available | ½" to 4" (DN15–DN100) |
| Standards | 3-A, FDA, ISO, EHEDG, ASME BPE |
As a professional vacuum rated sanitary ball valve supplier, we are committed to delivering high-quality, hygienic, and precision-engineered valves for every application.
Every valve undergoes 100% leak testing, vacuum integrity verification, and dimensional inspection before shipment.
All components are supplied with material certificates (EN 10204 3.1), ensuring transparency and reliability.
We can manufacture valves according to specific process requirements — including special connection types, surface finishes, and actuator configurations.
Valves meet international sanitary and vacuum standards including 3-A, FDA, and ASME BPE, ensuring global market compatibility.
Our engineering team provides technical consultation, installation guidance, and after-sales support for seamless system integration.
Inspect Seals Regularly: Replace worn or deformed gaskets promptly to maintain vacuum integrity.
Clean After Each Batch: Use CIP or manual cleaning to avoid residue buildup.
Lubricate Stem Bearings: Use FDA-grade lubricants for smooth operation.
Check Actuator Pressure: Ensure pneumatic actuators receive correct air pressure for reliable response.
Store Properly: Keep valves dry and clean when not in use to prevent corrosion.
A vacuum rated ball valve is designed to maintain tight sealing under vacuum or negative pressure. It features reinforced stem seals, precision-polished balls, and PTFE seats to prevent gas leakage.
Yes. Vacuum rated sanitary ball valves can handle both positive pressure (up to 10 bar) and full vacuum conditions, making them versatile for dual-duty applications.
They are used in food, beverage, dairy, pharmaceutical, cosmetic, and chemical industries — anywhere hygienic, vacuum-tight performance is required.
Absolutely. All our vacuum rated sanitary ball valves are CIP/SIP compatible, supporting automated cleaning and sterilization processes.
Yes. They can be equipped with pneumatic or electric actuators for full automation and integration with control systems.
Seal replacement intervals depend on usage frequency and cleaning cycles, but typically every 6–12 months in continuous service environments.
Tri-clamp connections allow quick installation and disassembly, ideal for systems requiring frequent cleaning, while weld-end connections provide permanent, leak-proof joints.
A vacuum rated sanitary ball valve is a cornerstone component for any system requiring hygienic, leak-proof control under vacuum conditions.
Its stainless steel body, FDA-approved seals, precision engineering, and automation readiness make it ideal for modern processing industries where cleanliness and reliability are non-negotiable.
As a trusted vacuum rated sanitary ball valve supplier, we deliver not just valves — but total hygienic flow control solutions that ensure product purity, system efficiency, and operational excellence across industries.
