In industries such as food, beverage, and pharmaceuticals, maintaining absolute hygiene and precise process control is vital. Every valve in a sanitary system must ensure cleanability, reliability, and full compliance with strict health standards.
The sanitary electric quick clamp tank valve is specifically engineered to meet these requirements. Designed with 316L stainless steel, FDA-compliant seals, and a compact electric actuator, it provides automated, accurate, and hygienic flow control for tank outlets, mixing vessels, and process pipelines.
This valve combines electric precision, sanitary design, and quick clamp connection convenience, making it one of the most reliable and easy-to-maintain components in sanitary automation systems.

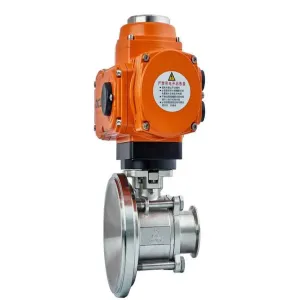

A sanitary electric quick clamp tank valve is a hygienic valve used to control liquid or gas flow from tanks or process lines. It features a quick clamp (tri-clamp) connection, allowing for easy installation and disassembly, and an electric actuator that automatically opens or closes the valve with electronic signals.
It is commonly mounted at the bottom of tanks, mixing vessels, fermenters, and bioreactors, providing accurate flow control, product discharge, or isolation under sterile conditions.
Valve Body: 316L stainless steel (electropolished interior for cleanability)
Disc / Ball / Seat: PTFE or TFM material for chemical and thermal resistance
Seal Rings: EPDM, FKM, or silicone (FDA and USP Class VI certified)
Quick Clamp Ends: Standard tri-clamp connections for tool-free installation
Electric Actuator: Compact, corrosion-resistant motor unit for automatic control
The valve’s design incorporates advanced features to ensure hygienic integrity, operational precision, and ease of maintenance.
Made from AISI 316L stainless steel, offering superior corrosion resistance and durability.
The internal surface finish Ra ≤ 0.8 µm prevents residue buildup and ensures complete cleanability.
All welds are ground and polished to meet 3-A, EHEDG, and ASME BPE sanitary standards.
The tri-clamp design allows fast assembly and disassembly without special tools.
Ideal for systems requiring frequent cleaning or configuration changes.
Reduces downtime during maintenance and supports CIP (Clean-in-Place) and SIP (Sterilize-in-Place) operations.
The integrated electric actuator enables automatic valve operation with high accuracy.
Compatible with PLC and control systems via 4–20 mA, 0–10 V, or Modbus communication.
Provides remote control, programmable positioning, and feedback signals.
The actuator enables gradual opening and closing, preventing product shocks or air entrainment.
Ideal for applications that require gentle handling of sensitive fluids or ingredients.
The valve’s compact footprint saves installation space.
Modular components (actuator, clamp, seals) are easily replaceable for maintenance efficiency.
All materials in contact with product are FDA-compliant and USP Class VI certified.
Designed to meet 3-A Sanitary Standards, EHEDG Guidelines, and ASME BPE specifications.
These valves perform several critical roles in hygienic processing systems:
They serve as reliable tank bottom or outlet valves, ensuring smooth product discharge while maintaining system sterility.
Provide leak-proof separation between different process stages, preventing cross-contamination.
Enable precise flow rate control in mixing, filling, and batching systems.
Control cleaning solutions and steam during automated cleaning and sterilization cycles.
Designed to operate under mild pressure or vacuum conditions, ensuring versatility across applications.
The electric actuator eliminates the need for manual operation, enabling full automation of process lines. This enhances efficiency, accuracy, and operator safety.
Smooth, crevice-free internal surfaces ensure that no residue or bacteria can accumulate, maintaining strict hygiene standards required by food and pharmaceutical production.
Electric actuators consume minimal energy compared to pneumatic systems and can operate quietly and cleanly — ideal for controlled environments.
Quick clamp connections and modular components allow fast seal replacement or valve cleaning without disassembling the entire system.
PTFE or TFM valve seats ensure long-term sealing integrity, even under frequent CIP cycles and thermal expansion.
Supports signal feedback, position control, and remote monitoring, making it easy to integrate with SCADA, PLC, or distributed control systems.
The robust actuator design and corrosion-resistant stainless steel body ensure years of reliable operation in demanding sanitary environments.
This valve’s versatility allows use across multiple process systems in the food & beverage and pharmaceutical industries.
| Industry | Applications |
|---|---|
| Food & Beverage | Dairy processing, juice blending, beer fermentation, syrup handling, tank discharge |
| Pharmaceutical | Bioreactors, fermentation tanks, purified water systems, WFI storage, CIP/SIP loops |
| Dairy | Milk collection tanks, pasteurizers, and mixing vessels |
| Brewery | Fermenters, storage tanks, and filtration systems |
| Cosmetics | Cream mixing, liquid filling, and emulsification tanks |
| Biotechnology | Sterile media handling and downstream processing |
| Parameter | Description |
|---|---|
| Valve Type | Sanitary Electric Quick Clamp Tank Valve |
| Body Material | SS304 / SS316L |
| Surface Finish | Ra ≤ 0.8 µm (Electropolished) |
| Seal Material | EPDM / FKM / PTFE (FDA Approved) |
| Connection Type | Tri-Clamp / Quick Clamp |
| Operating Pressure | 0 to 10 bar |
| Operating Temperature | -20°C to +150°C |
| Actuator Type | Electric (24V, 110V, or 220V) |
| Control Signal | 4–20 mA / 0–10 V / ON-OFF / Modbus |
| Sizes Available | ½" to 4" (DN15–DN100) |
| Standards Compliance | 3-A, EHEDG, FDA, ASME BPE |
When an electrical signal is sent from the control system, the electric actuator rotates the valve disc or ball by 90°, opening or closing the passage.
Open State: Allows fluid to flow freely from the tank or pipeline.
Closed State: The disc or ball seals tightly against the seat, preventing leakage.
The actuator provides position feedback to the controller, ensuring accurate valve positioning and process consistency.
Ensure the valve is mounted vertically beneath the tank outlet for proper drainage.
Use tri-clamp fittings with appropriate gaskets for leak-free connection.
Confirm actuator wiring according to manufacturer’s diagram.
Check power supply voltage compatibility before startup.
Perform a functional test before introducing product flow.
Inspect seals regularly and replace them as needed.
Clean the valve interior after each production batch using CIP.
Avoid submerging the actuator in liquid.
Verify that all clamp joints are tightened evenly.
Re-calibrate actuator position sensors annually.
As a professional manufacturer and supplier of Sanitary Valves, we offer customized, high-performance solutions to meet diverse process needs.
All valves comply with 3-A, FDA, and ASME BPE standards and include material traceability certificates.
Valves can be customized with different body sizes, actuator voltages, communication interfaces, and seal materials.
Our streamlined production and inventory management ensure quick delivery for urgent projects.
We supply to over 60 countries, supporting OEM and ODM services for equipment manufacturers and system integrators.
Our engineers provide guidance on installation, configuration, and maintenance to maximize valve performance.
Each sanitary electric quick clamp tank valve undergoes:
Hydrostatic and Leak Testing
Electrical Function Testing
Surface Roughness Inspection
Dimensional Verification
Documentation includes Material Certificates, Test Reports, and Conformity Declarations to meet international compliance requirements.
It’s used to control product discharge or flow from tanks and vessels in sanitary systems. Ideal for food, beverage, and pharmaceutical applications requiring automated operation and hygiene.
The valve body is made of 316L stainless steel, while seals are EPDM, PTFE, or FKM, all FDA-approved for hygienic applications.
Yes, the electric actuator supports multiple control signals such as 4–20 mA, 0–10 V, and digital Modbus for PLC integration.
Absolutely. The valve is designed for Clean-in-Place and Sterilize-in-Place operations, ensuring full sanitary compliance.
Standard sizes range from ½" to 4", with custom dimensions available upon request.
Electric valves require no compressed air, making them more energy-efficient, quieter, and easier to install in environments where air supply is limited.
Our valves comply with 3-A Sanitary, FDA, EHEDG, and ASME BPE standards.
The sanitary electric quick clamp tank valve represents the ideal solution for modern food, beverage, and pharmaceutical processing systems that demand hygiene, precision, and automation.
With its 316L stainless steel body, FDA-compliant seals, CIP/SIP compatibility, and smart electric actuator, this valve ensures efficient and contamination-free control of product flow.
Whether used for tank discharge, mixing control, or automated cleaning, it delivers outstanding reliability, easy maintenance, and full compliance with global sanitary standards.
Choose a trusted supplier of sanitary electric quick clamp tank valves to enhance your production efficiency, product purity, and long-term system stability.
