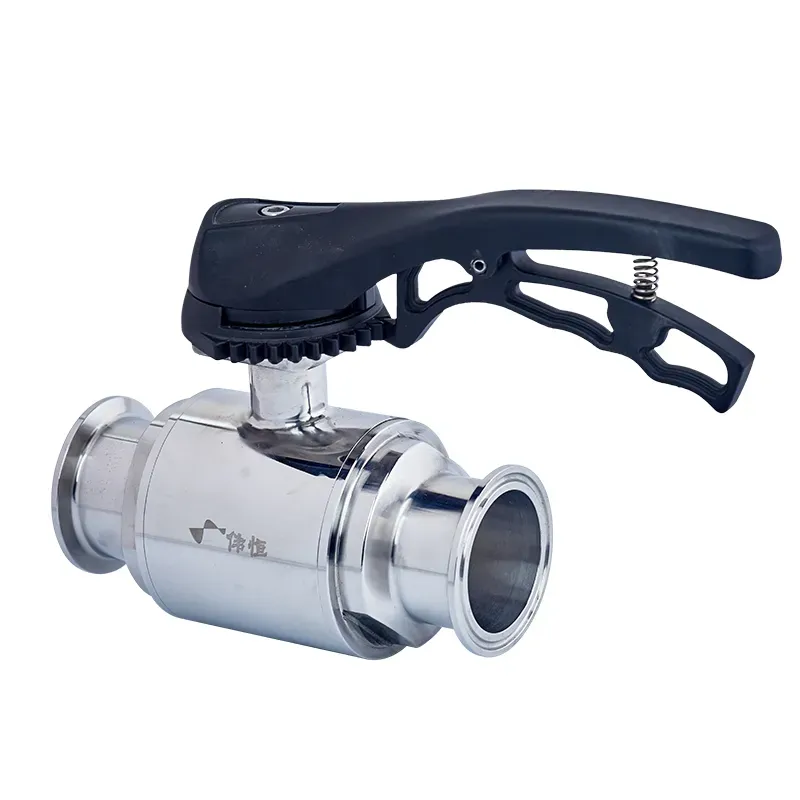

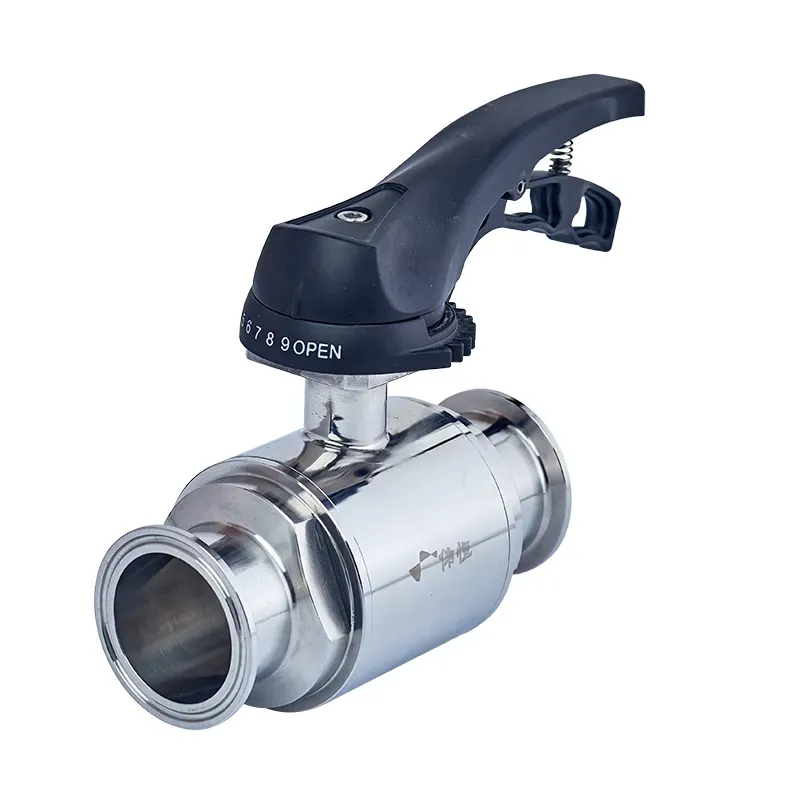

Sanitary Duckbill handle multi-gear straight through ball valve is a special valve, its structure and working principle are different from the ordinary ball valve. The valve is usually composed of a valve body, a seat, a ball and a stem, and has the function of multi-gear adjustment.
The ball is usually shaped and made of a special material to better control the flow of the medium when it is opened and closed, and the design of the seat and stem is optimized to provide better sealing performance and regulation.
This valve usually has multiple gears, can be adjusted according to different needs, by rotating the valve stem, you can change the position and Angle of the ball, so as to control the flow and flow of the medium, this valve is used for the need to accurately control the flow and flow of the medium occasions, such as chemical, petroleum, pharmaceutical and other fields.
The duckbill handle multi-gear straight through ball valve is a powerful, easy to operate valve to meet the needs of different areas of fluid control. Its unique design and optimized performance make it an important component in the field of fluid control.
Through 360° rotary handle, the ball body which have transfixion cavity and precise manufacture will open or close the valve, reaching the purpose of controlling the flow rate of medium.
There are various standard valve series can be supplied, they are the DIN,3A, SMS, ISO/IDF, BS/RJT, ASME/BPE standard etc. You can choose us with confidence, our products meet the standards of multiple regions, such as American Standards, Japanese Industrial Standard, Korean Standard, German Standard and Italian Standard. The constitute elements of ball valve always included: one handle, one ball body with transfixion cavity, valve body, valve central spindle and spindle shaft seal.
Specification:
Name: Duckbill handle multi-gear straight through ball valve
Size: DN10-DN100 or 1/2" - 4"
Valve body material: Stainless steel 304/304L, stainless steel 316/316L
Connection way: Flanges, welded, quick clamp, threads ( internal/external thread)
Operate mode: Manual/handle, pneumatic, electric
Max. Work Pressure: 10 bar
Max. Working Temperature: 150ºC
Material of Seal: PTFE, SI, FEP, PFA, EPDM, NBR, FDA177.2600
Medium: Beer, dairy, beverage, pharmacy, cosmetics, fruit juice, liquor, red wine, chemical, chemical reagent, daily chemical, medicine, injection, botany, organic raw material, fermentation, adhesive

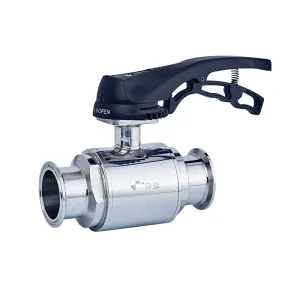

WH Sanitary Duckbill Handle Multi-Gear Straight Through Ball Valve: The Ultimate Solution for Hygienic Flow Control
Introduction
In industries where hygiene and precision are paramount, the WH Sanitary Duckbill Handle Multi-Gear Straight Through Ball Valve stands out as a superior flow control solution. Designed for pharmaceutical, food & beverage, biotechnology, and dairy applications, this valve ensures contamination-free operation with its smooth, crevice-free design.
This comprehensive guide explores the features, benefits, applications, and maintenance of the WH Sanitary Duckbill Handle Multi-Gear Straight Through Ball Valve, optimized for Google SEO to help you make an informed purchasing decision.
---
What is the WH Sanitary Duckbill Handle Multi-Gear Straight Through Ball Valve?
The WH Sanitary Duckbill Handle Multi-Gear Straight Through Ball Valve is a high-performance valve engineered for sanitary processing environments. Its straight-through design eliminates dead spaces where bacteria or product residues could accumulate, ensuring optimal cleanliness.
Key characteristics include:
- Duckbill handle for ergonomic operation
- Multi-gear mechanism for precise flow control
- Sanitary construction meeting 3-A, EHEDG, and FDA standards
- Full-bore design for minimal pressure drop
---
Key Features & Benefits
1. Sanitary Design for Contamination-Free Operation
The WH Sanitary Duckbill Handle Multi-Gear Straight Through Ball Valve is constructed from 316L stainless steel, offering excellent corrosion resistance. The electropolished surface minimizes bacterial adhesion, making it ideal for aseptic processing.
2. Duckbill Handle for Easy Operation
The duckbill-shaped handle provides a comfortable grip, reducing operator fatigue during frequent adjustments. Its multi-gear mechanism allows for smooth and precise flow regulation, ensuring accurate dosing in critical applications.
3. Straight-Through Full-Bore Design
Unlike traditional ball valves with flow restrictions, this valve features a full-bore design, eliminating turbulence and pressure drops. This ensures efficient product flow while maintaining hygienic conditions.
4. Multi-Gear Mechanism for Precise Control
The multi-gear system enables fine-tuned adjustments, making it perfect for applications requiring exact flow rates, such as biopharmaceutical processing or high-purity liquid transfer.
5. Easy Cleaning & Maintenance
With CIP (Clean-in-Place) and SIP (Sterilize-in-Place) compatibility, the valve can be thoroughly cleaned without disassembly, reducing downtime and maintenance costs.
6. Compliance with Industry Standards
The valve meets:
- 3-A Sanitary Standards
- EHEDG (European Hygienic Engineering & Design Group) guidelines
- FDA & USDA requirements for food and pharmaceutical use
---
Applications of the WH Sanitary Duckbill Handle Multi-Gear Straight Through Ball Valve
Due to its hygienic design and precise control, this valve is widely used in:
1. Pharmaceutical & Biotech Industries
- Aseptic processing of vaccines and injectables
- Bioreactor and fermenter systems
- Sterile filling lines
2. Food & Beverage Processing
- Dairy and beverage production
- High-purity liquid transfer (juices, syrups, alcohol)
- Sauce and condiment manufacturing
3. Cosmetics & Personal Care
- Perfume and essential oil handling
- Lotion and cream production
4. Chemical & Water Treatment
- Ultrapure water systems
- Chemical dosing in water treatment plants
---
Why Choose the WH Sanitary Duckbill Handle Multi-Gear Straight Through Ball Valve?
1. Superior Hygiene & Cleanability
The smooth, crevice-free interior prevents bacterial buildup, ensuring compliance with GMP (Good Manufacturing Practices).
2. Enhanced Durability
Made from high-grade 316L stainless steel, the valve resists corrosion, pitting, and chemical degradation, even in harsh environments.
3. Reduced Product Waste
The full-bore design minimizes product retention, reducing waste and improving efficiency.
4. Cost-Effective Maintenance
With CIP/SIP compatibility, cleaning cycles are faster, lowering operational costs.
5. Versatile Installation Options
Available in clamp, threaded, and welded connections, the valve integrates seamlessly into existing systems.
---
Installation & Maintenance Tips
Installation Guidelines
1. Inspect the valve before installation to ensure no damage.
2. Use proper gaskets (EPDM, PTFE, or silicone) for leak-proof sealing.
3. Align the valve correctly to prevent stress on the piping system.
Maintenance Best Practices
- Regularly inspect seals and O-rings for wear.
- Follow CIP/SIP protocols to maintain sterility.
- Lubricate the gear mechanism (if required) with food-grade lubricants.
---
Conclusion
The WH Sanitary Duckbill Handle Multi-Gear Straight Through Ball Valve is a top-tier solution for industries demanding hygiene, precision, and reliability. Its sanitary design, multi-gear control, and full-bore construction make it ideal for pharmaceutical, food processing, and biotechnology applications.
By choosing this valve, you ensure contamination-free operation, reduced downtime, and long-term cost savings.
For more details on specifications, sizes, and pricing, consult a trusted supplier today!
---
SEO-Optimized Keywords
- Duckbill handle ball valve
- Multi-gear Sanitary Valve
- Straight-through ball valve
- Hygienic ball valve for food processing
- Pharmaceutical-grade ball valve
- CIP/SIP compatible valve
- 3-A compliant ball valve
- FDA-approved sanitary valve
- Full-bore sanitary ball valve
This guide ensures your search for the best sanitary ball valve leads you to the WH Sanitary Duckbill Handle Multi-Gear Straight Through Ball Valve—the ultimate choice for hygienic flow control.
