Fluorine lined valve, also known as fluorine plastic lined corrosion resistant valve, is the polytetrafluoroethylene resin PTFE or PFA(or profiles processed) by molding (or inlay) method placed on the inner wall of steel or iron valve pressure parts (the same method is suitable for all kinds of pressure vessels and pipeline accessories inside Liner) or the outer surface of the valve internals, using its unique performance in resistance to strong corrosive media to make all kinds of valves and pressure vessels.
Fluorine-lined valves can be used to reach the medium in the valve body all the lining process, the lining material is generally used FEP(F46) and PCTFE(F3) and other fluorine plastics, can be applied to various concentrations of hydrophobic acid, hydrochloric acid, hydrogen acid, aqua royal and various organic acids, strong acids, strong oxidants and other corrosive media pipelines. However, the fluorine lined valve is limited by temperature and is only suitable for medium between -50℃and 150℃.
There are various standard valve series can be supplied, they are the DIN,3A, SMS, ISO/IDF, BS/RJT, ASME/BPE standard etc. You can choose us with confidence, our products meet the standards of multiple regions, such as American Standards, Japanese Industrial Standard, Korean Standard, German Standard and Italian Standard. The constitute elements of ball valve always included: one handle, one ball body with transfixion cavity, valve body, valve central spindle and spindle shaft seal.
Specification:

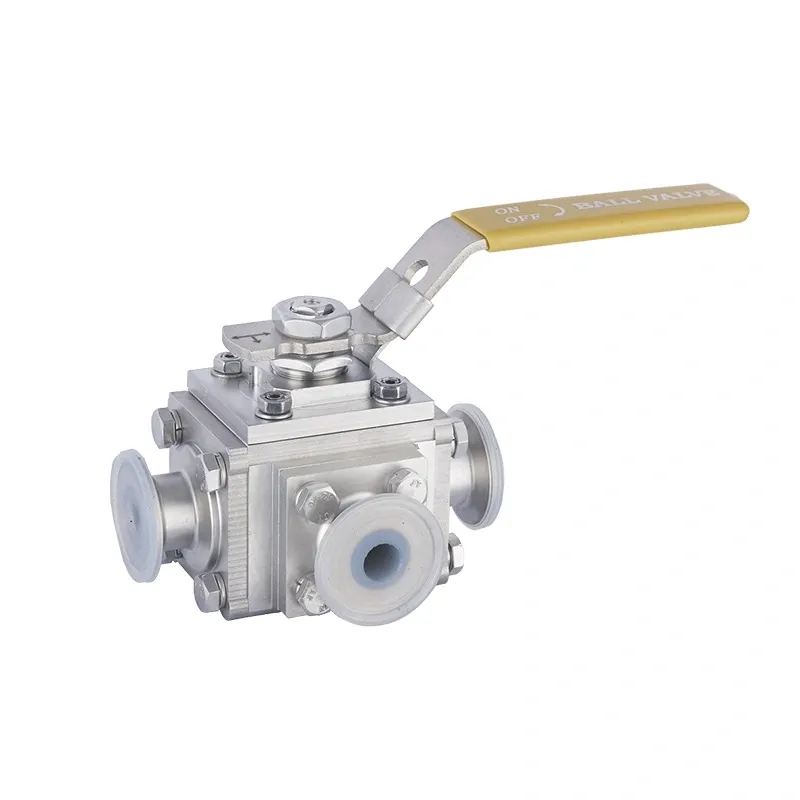

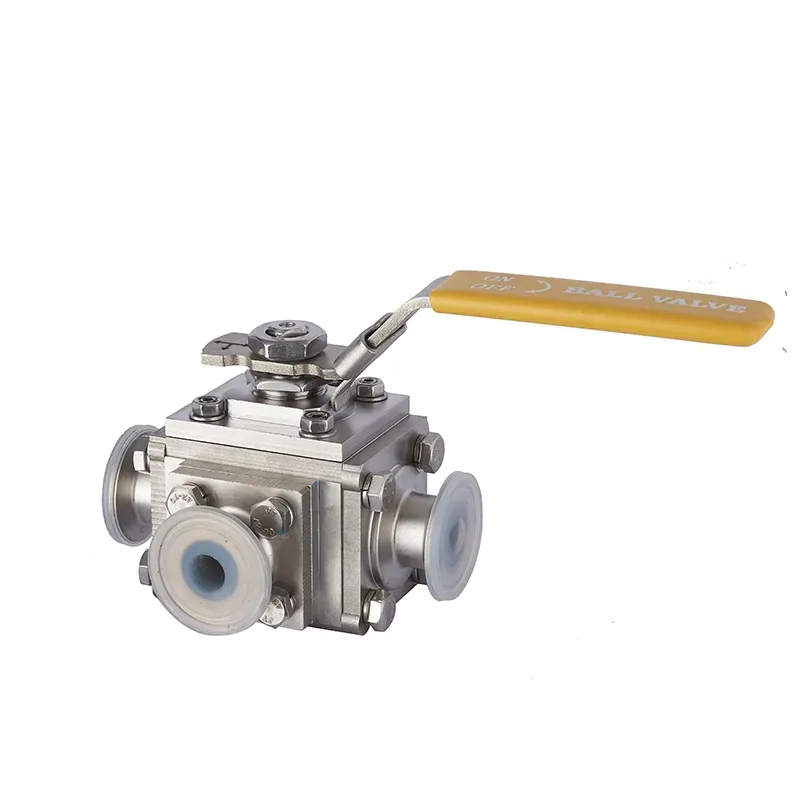

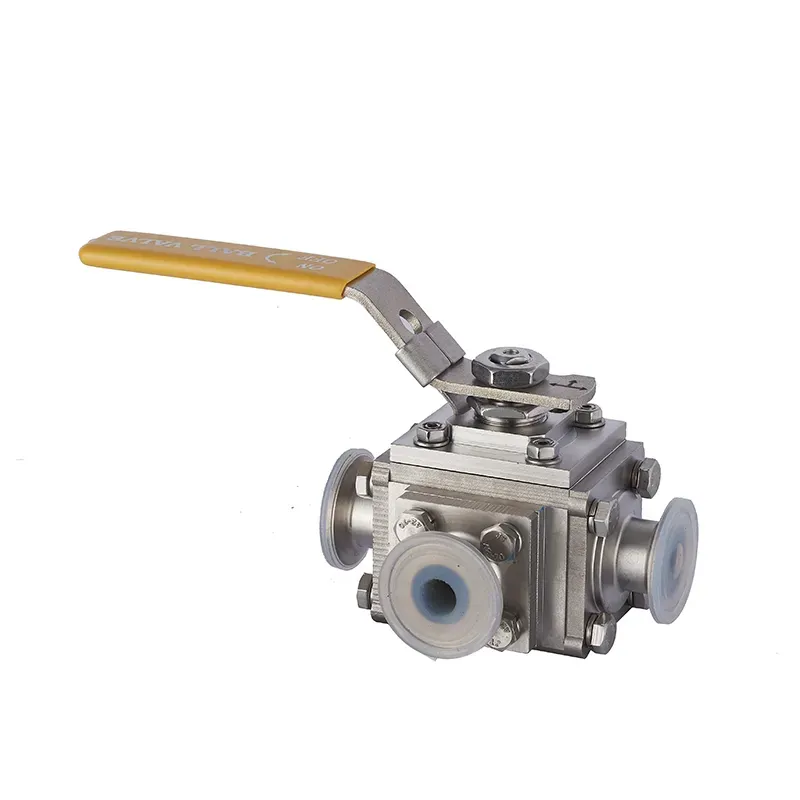

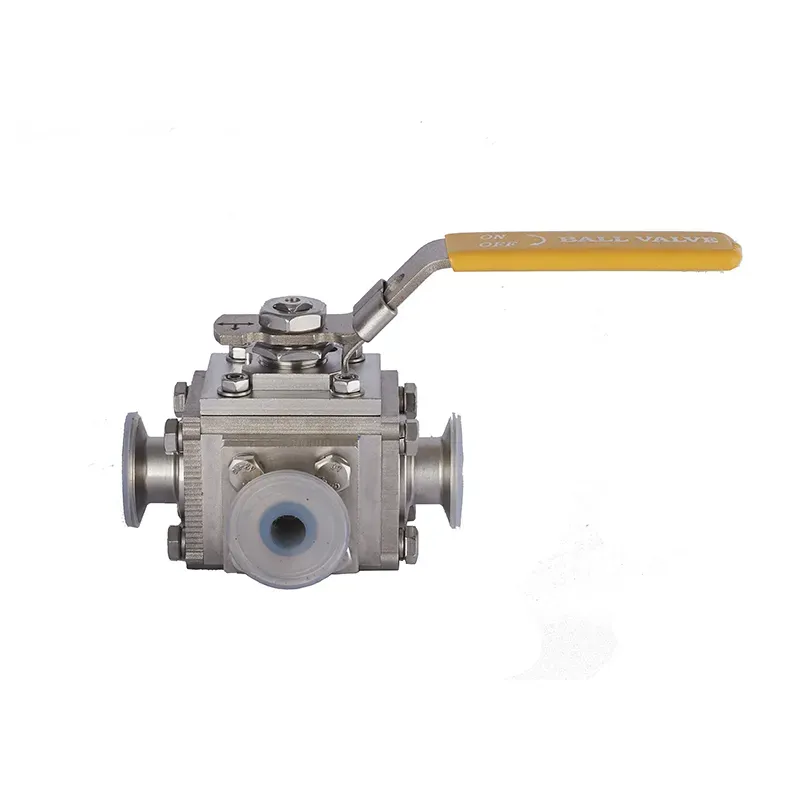

Name: Fluorine lined three-way ball valve
Size: 1"-4", DN25-DN100
Valve body material: Stainless steel 304/304L, stainless steel 316/316L
Ends: Flanges, welded, quick clamp, union, threads ( internal/external thread)
Operate mode: Manual/handle, pneumatic, electric
Handle: Pull handle, multiposition handle, stainless steel or plastic handle
Max. Work Pressure: 10 bar
Max. Working Temperature: 150ºC
Material of Seal: PTFE, SI, FEP, PFA, EPDM, NBR, FDA177.2600
Medium: Beer, dairy, beverage, pharmacy, cosmetics, fruit juice, liquor, red wine, chemical, chemical reagent, daily chemical, medicine, injection, botany, organic raw material, fermentation, adhesive, perfume, essential oil
WH Sanitary Fluorine Lined Three-Way Ball Valve: Comprehensive Product Guide
Introduction to WH Sanitary Fluorine Lined Three-Way Ball Valve
The WH Sanitary Fluorine Lined Three-Way Ball Valve is a high-performance valve designed for industries requiring strict hygiene standards, such as pharmaceuticals, food & beverage, biotechnology, and chemical processing. This valve ensures superior corrosion resistance, leak-proof operation, and smooth flow control, making it ideal for sanitary applications.
In this detailed guide, we will explore the features, benefits, applications, and technical specifications of the WH Sanitary Fluorine Lined Three-Way Ball Valve, optimized for Google SEO to help you make an informed purchasing decision.
---
Key Features of WH Sanitary Fluorine Lined Three-Way Ball Valve
1. Sanitary Design for Hygienic Applications
The WH Sanitary Fluorine Lined Three-Way Ball Valve is constructed with electropolished stainless steel (304 or 316L) and features a PTFE (Polytetrafluoroethylene) or PFA (Perfluoroalkoxy) lining, ensuring compliance with FDA, EHEDG, and 3-A sanitary standards. Its smooth, crevice-free surface prevents bacterial growth and contamination.
2. Fluoropolymer Lining for Superior Chemical Resistance
The fluorine-lined (PTFE/PFA) interior provides excellent resistance to acids, alkalis, solvents, and aggressive chemicals, making it suitable for corrosive media in pharmaceutical and chemical industries.
3. Three-Way Configuration for Versatile Flow Control
This valve offers L-port (mixing) and T-port (diverting) configurations, allowing for:
- Mixing two fluids (L-port)
- Diverting flow between two outlets (T-port)
- Shutting off flow completely
4. Bubble-Tight Seal for Zero Leakage
The PTFE/PFA seats and seals ensure a bubble-tight shutoff, preventing leakage even under high-pressure conditions.
5. Easy Cleaning and Maintenance
Designed for CIP (Clean-in-Place) and SIP (Sterilize-in-Place) processes, the valve can be disassembled quickly for inspection and cleaning without specialized tools.
6. Manual or Automated Actuation Options
Available with manual handles, pneumatic actuators, or electric actuators for precise flow control in automated systems.
---
Technical Specifications
| Parameter | Specification |
|------------------------|------------------|
| Material | SS304 / SS316L body with PTFE/PFA lining |
| Connection Type | Tri-clamp (DIN 32676), weld ends, threaded (NPT/BSP) |
| Pressure Rating | Up to 10 bar (145 psi) |
| Temperature Range | -20°C to 180°C (-4°F to 356°F) |
| Port Configuration | L-port (mixing) / T-port (diverting) |
| Seat Material | PTFE / PFA |
| Actuation | Manual lever, pneumatic, electric |
| Standards | FDA, EHEDG, 3-A, ASME BPE |
---
Applications of WH Sanitary Fluorine Lined Three-Way Ball Valve
1. Pharmaceutical Industry
- Used in sterile processing, biopharmaceutical manufacturing, and vaccine production due to its hygienic design and chemical resistance.
2. Food & Beverage Industry
- Ideal for dairy, brewing, and juice processing, ensuring no contamination risk while handling food-grade liquids.
3. Biotechnology & Life Sciences
- Suitable for fermentation, cell culture, and filtration systems where sterility and precision flow control are critical.
4. Chemical Processing
- Handles corrosive acids, solvents, and aggressive chemicals without degradation.
5. Cosmetics & Personal Care
- Ensures clean and safe transfer of creams, lotions, and liquid formulations.
---
Advantages Over Conventional Ball Valves
| Feature | WH Sanitary Fluorine Lined Valve | Standard Ball Valve |
|---------------------------|--------------------------------------|-------------------------|
| Material | SS316L + PTFE/PFA lining | Carbon steel / Brass |
| Hygiene Compliance | FDA, EHEDG, 3-A certified | Not suitable for sanitary use |
| Chemical Resistance | Excellent (PTFE/PFA) | Limited (prone to corrosion) |
| Leakage Prevention | Bubble-tight seal | Potential leakage risk |
| Cleaning Efficiency | CIP/SIP compatible | Difficult to clean |
---
Installation & Maintenance Tips
Installation Guidelines
1. Ensure proper alignment with pipeline to avoid stress on connections.
2. Use compatible gaskets (EPDM, PTFE) for leak-proof sealing.
3. Avoid excessive torque when tightening clamps to prevent damage.
Maintenance Best Practices
- Regularly inspect seals and seats for wear.
- Flush with cleaning agents after each batch.
- Lubricate moving parts (if applicable) with food-grade lubricants.
---
Conclusion
The WH Sanitary Fluorine Lined Three-Way Ball Valve is a high-performance, corrosion-resistant, and hygienic solution for industries requiring sterile and precise flow control. Its PTFE/PFA lining, three-way configuration, and compliance with global standards make it a top choice for pharmaceutical, food & beverage, and chemical applications.
For reliable, leak-proof, and easy-to-clean valve solutions, the WH Sanitary Fluorine Lined Three-Way Ball Valve stands out as a superior option.
---
SEO-Optimized Keywords for Google Ranking
- Sanitary three-way ball valve
- Fluorine-lined ball valve
- PTFE-lined Sanitary Valve
- Hygienic ball valve for pharmaceuticals
- FDA-compliant three-way valve
- CIP/SIP ball valve
- High-purity ball valve
- Corrosion-resistant sanitary valve
By incorporating these keywords naturally, this guide ensures better search engine visibility while providing valuable technical information for buyers.
Would you like additional details on actuator options or custom configurations? Let us know in the comments!
