Pneumatic head quick filling tank bottom valve is a valve, mainly used to control and regulate the flow of pipeline medium. The valves are typically made of corrosion-resistant materials such as stainless steel or cast iron and are designed to be quickly installed and removed for easy maintenance and repair.
Moving head quick filling tank bottom smoke has a variety of advantages, such as simple structure, easy operation, good sealing performance, strong resistance to magic corrosion, etc., in chemical plants, sewage treatment plants, food processing plants and other industrial fields, pneumatic head quick filling tank bottom valve is widely used in famous tanks, tanks and other containers, as an inlet and outlet control equipment, can effectively prevent media leakage and external environment on the inside of the container erosion.
Through 360° rotary handle, the ball body which have transfixion cavity and precise manufacture will open or close the valve, reaching the purpose of controlling the flow rate of medium.
There are various standard valve series can be supplied, they are the DIN,3A, SMS, ISO/IDF, BS/RJT, ASME/BPE standard etc. You can choose us with confidence, our products meet the standards of multiple regions, such as American Standards, Japanese Industrial Standard, Korean Standard, German Standard and Italian Standard. The constitute elements of ball valve always included: one handle, one ball body with transfixion cavity, valve body, valve central spindle and spindle shaft seal.
Specification:

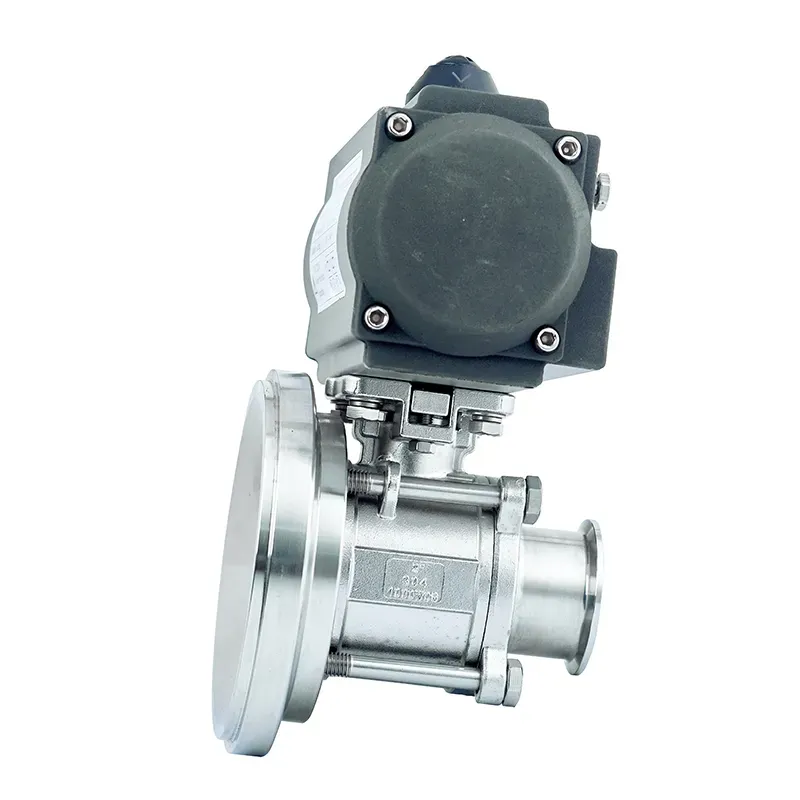

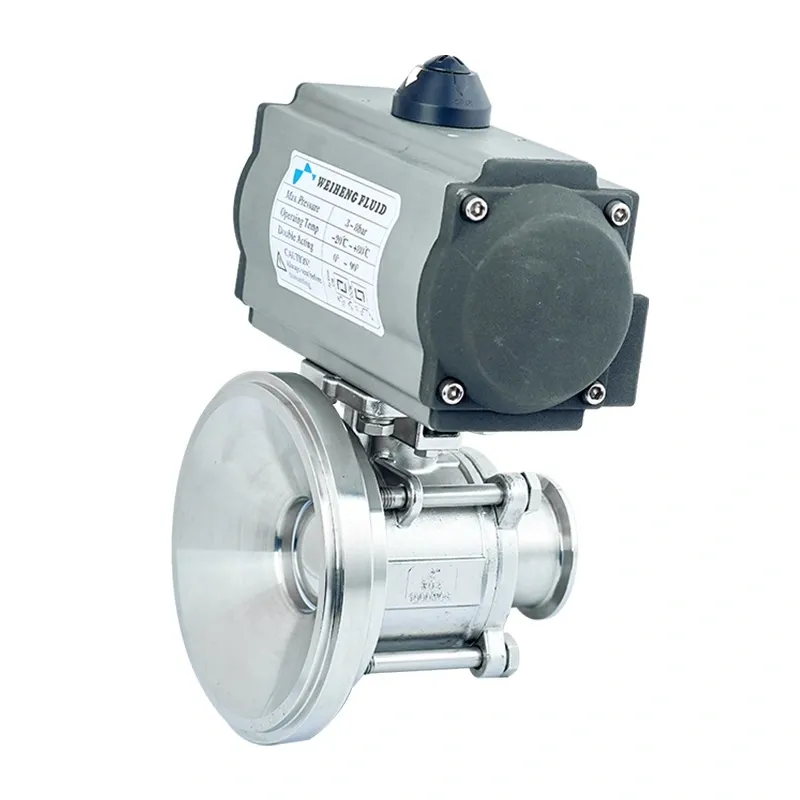

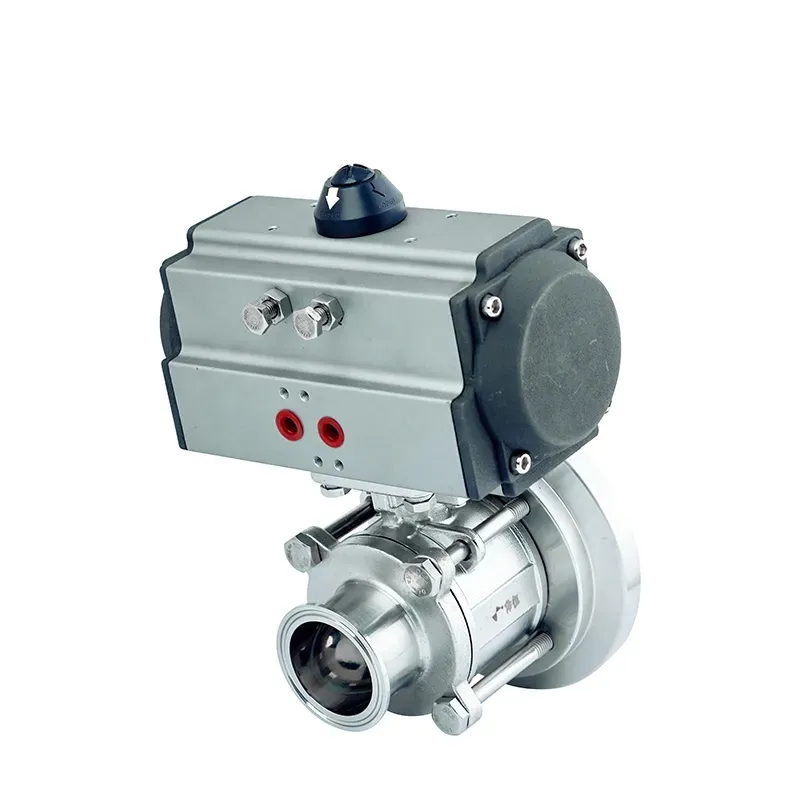

Name: Pneumatic quick clamp tank bottom valve
Size: DN10-DN100 or 1/2" - 4"
Valve body material: Stainless steel 304/304L, stainless steel 316/316L
Ends: Flanges, welded, quick clamp, union, threads ( internal/external thread)
Operate mode: Manual/handle, pneumatic, electric
Handle: Pull handle, multiposition handle, stainless steel or plastic handle
Max. Work Pressure: 10 bar
Max. Working Temperature: 150ºC
Material of Seal: PTFE, SI, FEP, PFA, EPDM, NBR, FDA177.2600
Medium: Beer, dairy, beverage, pharmacy, cosmetics, fruit juice, liquor, red wine, chemical, chemical reagent, daily chemical, medicine, injection, botany, organic raw material, fermentation, adhesive, perfume, essential oil
WH Sanitary Pneumatic Quick Clamp Tank Bottom Valve Product Introduction
Introduction to WH Sanitary Pneumatic Quick Clamp Tank Bottom Valve
The WH Sanitary Pneumatic Quick Clamp Tank Bottom Valve is a high-performance valve designed for hygienic applications in industries such as food & beverage, pharmaceuticals, biotechnology, and cosmetics. This valve ensures efficient product flow control while maintaining strict sanitary standards. Its quick-clamp design allows for easy installation and maintenance, while the pneumatic actuation provides precise and automated operation.
This product introduction will cover the key features, benefits, applications, technical specifications, and installation guidelines of the WH Sanitary Pneumatic Quick Clamp Tank Bottom Valve, ensuring you have all the necessary information for optimal use.
---
Key Features of WH Sanitary Pneumatic Quick Clamp Tank Bottom Valve
1. Sanitary Design for Hygienic Applications
- Made from high-quality stainless steel (304 or 316L) to prevent contamination.
- Electropolished surfaces reduce bacterial adhesion and improve cleanability.
- Complies with FDA, EHEDG, and 3-A Sanitary Standards for food and pharmaceutical safety.
2. Pneumatic Actuation for Automated Control
- Enables fast and precise opening/closing for process automation.
- Reduces manual intervention, improving efficiency in high-volume production.
- Compatible with air pressure systems (typically 4-6 bar) for reliable operation.
3. Quick Clamp (Tri-Clamp) Connection
- Easy installation and disassembly without special tools.
- Ensures leak-proof sealing with FDA-approved gaskets.
- Compatible with standard sanitary fittings for seamless integration.
4. Tank Bottom Design for Efficient Drainage
- Optimized for complete product discharge, minimizing residue.
- Reduces waste and improves cleaning efficiency (CIP/SIP compatible).
- Ideal for tanks, reactors, and vessels requiring full drainage.
5. Durable and Corrosion-Resistant Construction
- 316L stainless steel option for highly corrosive environments.
- PTFE or EPDM seals for chemical resistance and long service life.
- Suitable for high-temperature and high-pressure applications.
---
Benefits of Using WH Sanitary Pneumatic Quick Clamp Tank Bottom Valve
✅ Enhanced Hygiene & Compliance
- Meets GMP, FDA, and EHEDG standards for sanitary processing.
- Smooth surfaces prevent bacterial growth, ensuring product safety.
✅ Improved Process Efficiency
- Automated operation reduces downtime and labor costs.
- Quick-clamp design allows for fast maintenance and cleaning.
✅ Cost-Effective & Low Maintenance
- Long-lasting materials reduce replacement frequency.
- Minimal product retention lowers waste and improves yield.
✅ Versatile Applications
- Suitable for liquids, viscous products, and semi-solids.
- Used in filling, mixing, fermentation, and dispensing systems.
---
Applications of WH Sanitary Pneumatic Quick Clamp Tank Bottom Valve
