The brewing industry mainly adopts high quality ball valve manufacturing process. The valve body is made of 304L and 316L forged pieces which are acid, alkali and corrosion resistant with high steel strength and higher acid and alkali under the action of temperature. It can effectively solve the common problems of the liquid medium such as plasticization and corrosion.
The structure of the drain outlet is safe, sanitary and free of dead angle. When the alcohol medium passes through the valve, there is no adverse chemical reaction such as oxidation. It makes the valve run more durable and stable on the process pipeline.
There are various standard valve series can be supplied, they are the DIN,3A, SMS, ISO/IDF, BS/RJT, ASME/BPE standard etc. You can choose us with confidence, our products meet the standards of multiple regions, such as American Standards, Japanese Industrial Standard, Korean Standard, German Standard and Italian Standard. The constitute elements of ball valve always included: one handle, one ball body with transfixion cavity, valve body, valve central spindle and spindle shaft seal.
Specification:

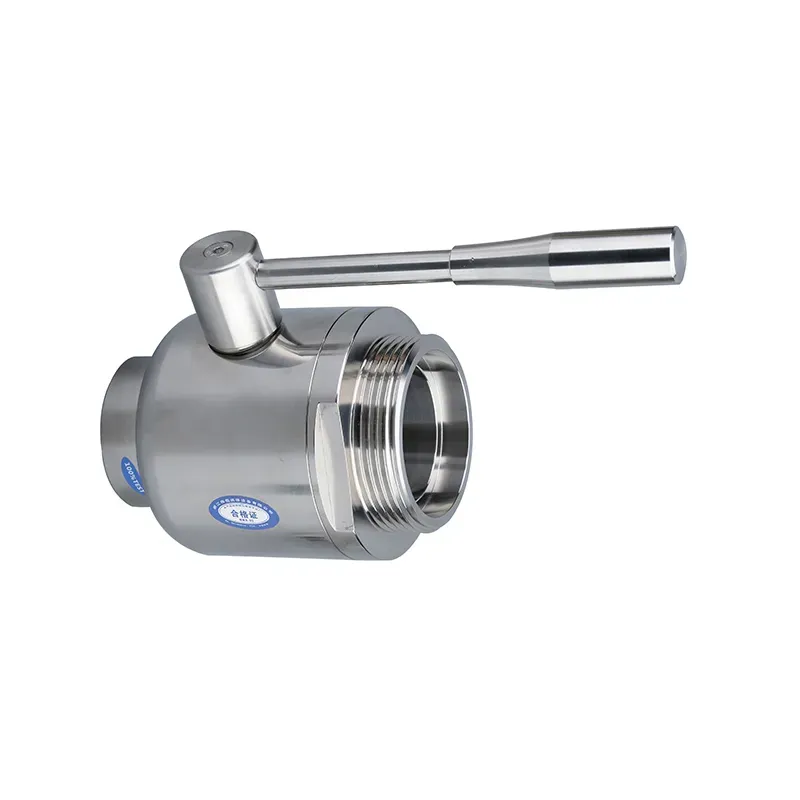

Name: Sanitary Winery Ball Valve
Size: DN10-DN100 or 1/2" - 4"
Valve body material: Stainless steel 304/304L, stainless steel 316/316L
Ends: Flanges, welded, quick clamp, union, threads ( internal/external thread)
Operate mode: Manual/handle, pneumatic, electricl
Handle: Pull handle, multiposition handle, stainless steel or plastic handle
Max. Work Pressure: 10 bar
Max. Working Temperature: 120ºC
Material of Seal: PTFE, SI, FEP, PFA, EPDM, NBR, FDA177.2600
Medium: Beer, dairy, beverage, pharmacy, cosmetics, fruit juice, liquor, red wine, chemical, chemical reagent, daily chemical, medicine, injection, botany, organic raw material, fermentation, adhesive, perfume, essential oil
WH Sanitary Winery Ball Valve Product Introduction: A Comprehensive Guide

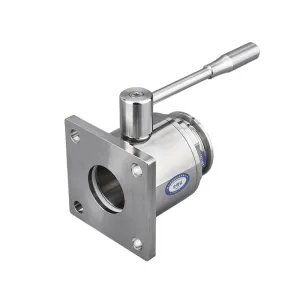

Introduction to WH Sanitary Winery Ball Valve
The WH Sanitary Winery Ball Valve is a high-performance valve designed specifically for the wine, beverage, dairy, pharmaceutical, and food processing industries. Engineered to meet stringent hygiene standards, this valve ensures optimal flow control while preventing contamination. Its sanitary design, easy cleaning, and durability make it an essential component in sanitary applications.
In this detailed product introduction, we will explore the key features, benefits, applications, and maintenance of the WH Sanitary Winery Ball Valve. This guide is optimized for Google SEO, ensuring that industry professionals can easily find this valuable information.
---
Key Features of WH Sanitary Winery Ball Valve
1. Sanitary Design for Hygienic Applications
The WH Sanitary Winery Ball Valve is constructed with 316L stainless steel, a material known for its corrosion resistance and compliance with FDA, EHEDG, and 3-A sanitary standards. The polished surface finish (Ra ≤ 0.8 μm) minimizes bacterial growth and facilitates easy cleaning.
2. Full-Port Design for Unrestricted Flow
Unlike standard ball valves, the full-port (full-bore) design ensures minimal pressure drop and maximum flow efficiency, making it ideal for high-purity liquid transfer in wineries and food processing plants.
3. Easy-to-Clean and Maintain
The clamp or threaded connections allow for quick disassembly without special tools, enabling thorough CIP (Clean-in-Place) and SIP (Sterilize-in-Place) procedures.
4. Reliable Sealing Mechanism
Equipped with PTFE or EPDM seals, the valve provides leak-proof performance even under high-pressure conditions, ensuring product integrity.
5. Temperature and Pressure Resistance
The WH Sanitary Winery Ball Valve operates efficiently in temperatures ranging from -10°C to 150°C (14°F to 302°F) and withstands pressures up to 10 bar (145 psi), making it suitable for various processing environments.
6. Manual and Automated Actuation Options
Available in manual handle, pneumatic, or electric actuation, this valve provides flexibility for different operational needs.
---
Benefits of Using WH Sanitary Winery Ball Valve
✅ Enhanced Hygiene & Compliance
- Meets FDA, EHEDG, 3-A, and ASME BPE standards.
- Electropolished surfaces prevent bacterial buildup.
✅ Superior Flow Control
- Full-port design minimizes turbulence and product waste.
- Precise shut-off prevents leakage and contamination.
✅ Durability & Long Service Life
- 316L stainless steel resists corrosion from acidic and alkaline liquids.
- Robust construction reduces maintenance costs.
✅ Easy Installation & Maintenance
- Tri-clamp, DIN, SMS, or threaded connections for quick setup.
- CIP/SIP compatibility reduces downtime.
✅ Versatile Applications
- Suitable for wine, beer, dairy, pharmaceuticals, and biotech industries.
---
Applications of WH Sanitary Winery Ball Valve
