Pneumatic and handle double-controlled ball valve is a special valve, mainly used to control the flow of medium (such as gas, wave body, etc.) in the pipeline. It consists of two independent ball valves, which are controlled by a drive mechanism. This valve has two control methods, manual and automatic, can be according to the need.
The working principle of the double ball valve is as follows:
When the two ball valves are closed, the valve can completely cut off the medium flow and play a cutoff role.
By controlling the drive mechanism, any ball valve can be opened or closed individually or simultaneously to realize the control of the flow direction of the medium. In the automatic control mode, the double ball valve can achieve automatic adjustment and control by cooperating with sensors, controllers and other equipment. For example, when the pressure and flow parameters in the pipeline change, the double ball valve can automatically adjust the opening of the ball valve according to the signal of the sensor to maintain the stable flow of the pipeline medium.
Because the double ball valve has two independent spheres, even if one of the spheres fails or is damaged, the other sphere can still work normally, thus improving the reliability and safety of the valve. Hand self integrated double ball valve is a powerful, safe and reliable valve, which has a wide range of applications in various industrial pipelines, equipment and automation systems.
There are various standard valve series can be supplied, they are the DIN,3A, SMS, ISO/IDF, BS/RJT, ASME/BPE standard etc. You can choose us with confidence, our products meet the standards of multiple regions, such as American Standards, Japanese Industrial Standard, Korean Standard, German Standard and Italian Standard. The constitute elements of ball valve always included: one handle, one ball body with transfixion cavity, valve body, valve central spindle and spindle shaft seal.
Specification:

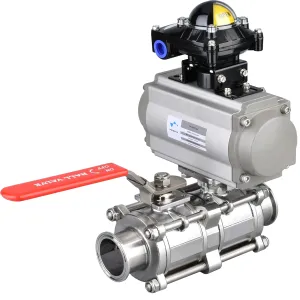

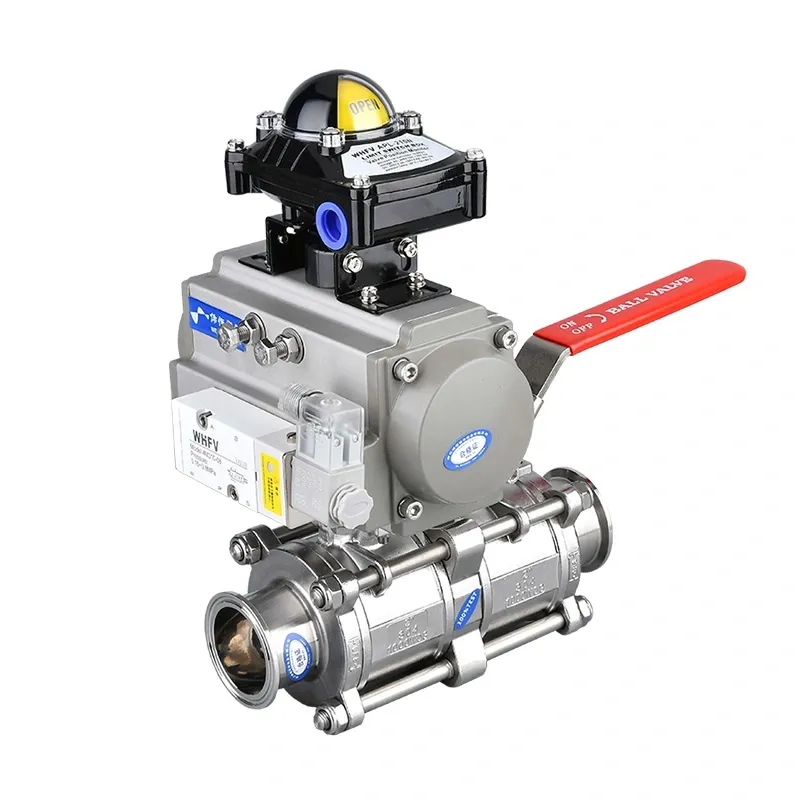

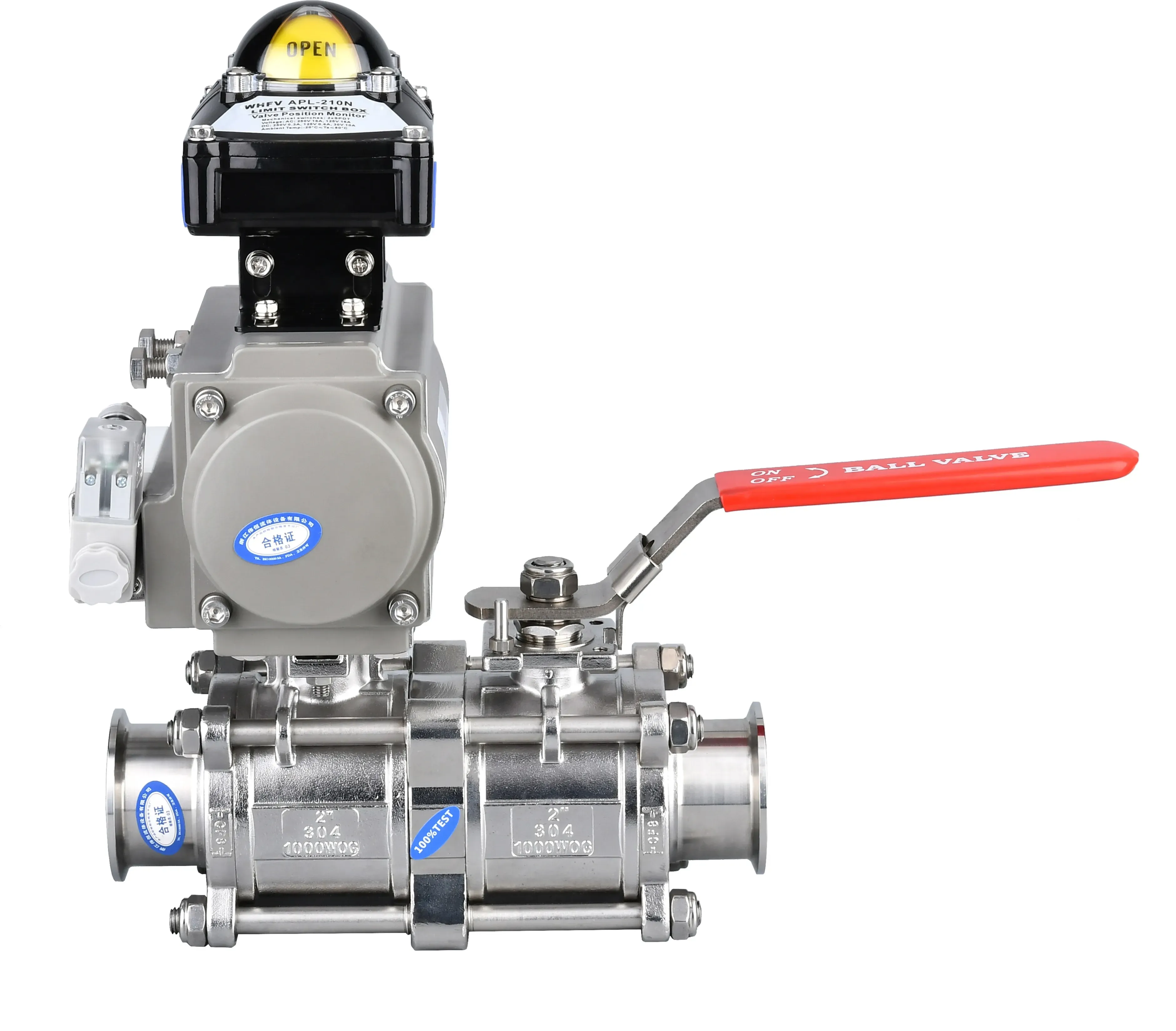

Name: Pneumatic and handle double-controlled ball valve
Size: DN10-DN100 or 1/2" - 4"
Valve body material: Stainless steel 304/304L, stainless steel 316/316L
Ends: Flanges, welded, quick clamp, union, threads ( internal/external thread)
Operate mode: Manual/handle, pneumatic, electric
Handle: Pull handle, multiposition handle, stainless steel or plastic handle
Max. Work Pressure: 10 bar
Max. Working Temperature: 150ºC
Material of Seal: PTFE, SI, FEP, PFA, EPDM, NBR, FDA177.2600
Medium: Beer, dairy, beverage, pharmacy, cosmetics, fruit juice, liquor, red wine, chemical, chemical reagent, daily chemical, medicine, injection, botany, organic raw material, fermentation, adhesive, perfume, essential oil
WH Sanitary Pneumatic and Handle Double-Controlled Ball Valve: Comprehensive Product Guide
Introduction to WH Sanitary Pneumatic and Handle Double-Controlled Ball Valve
The WH Sanitary Pneumatic and Handle Double-Controlled Ball Valve is a high-performance valve designed for industries requiring strict hygiene standards, such as food & beverage, pharmaceuticals, biotechnology, and cosmetics. This valve combines pneumatic actuation and manual handle control, offering flexibility, precision, and reliability in fluid control applications.
Built with sanitary-grade materials, this ball valve ensures contamination-free operation, making it ideal for processes where cleanliness and sterility are critical. Its double-control mechanism allows seamless switching between automated pneumatic operation and manual override, ensuring uninterrupted workflow even in case of power failure.
Key Features of WH Sanitary Pneumatic and Handle Double-Controlled Ball Valve
1. Sanitary Design for Hygienic Applications
- Constructed from 316L stainless steel or other FDA-compliant materials
- Electropolished surfaces minimize bacterial adhesion and facilitate easy cleaning
- Tri-clamp or weld ends for secure, leak-proof connections
- Compliant with 3-A, EHEDG, and ASME BPE standards
2. Pneumatic and Manual Dual-Control Mechanism
- Pneumatic actuation for automated, high-speed operation
- Manual handle control for backup operation during power outages
- Quick switch between auto and manual modes without tools
3. Precision Flow Control
- Full-port design ensures minimal pressure drop and unrestricted flow
- 90-degree rotation for fast opening/closing
- Bubble-tight shut-off for zero leakage
4. Durability and Corrosion Resistance
- High-grade seals (PTFE, EPDM, or FKM) for chemical resistance
- Long service life even in high-temperature and high-pressure environments
- Resistant to CIP (Clean-in-Place) and SIP (Sterilize-in-Place) processes
5. Easy Maintenance and Installation
- Modular design for quick disassembly and cleaning
- Interchangeable parts reduce downtime
- Compatible with industry-standard pneumatic systems
Applications of WH Sanitary Double-Controlled Ball Valve
The WH Sanitary Pneumatic and Handle Double-Controlled Ball Valve is widely used in industries requiring sterile and contamination-free fluid handling:
1. Food & Beverage Industry
- Dairy processing
- Breweries and soft drink production
- Sauce and condiment manufacturing
2. Pharmaceutical and Biotechnology
- Sterile liquid transfer
- Bioreactor and fermentation systems
- Vaccine and drug production
3. Cosmetics and Personal Care
- Cream and lotion manufacturing
- Perfume and essential oil processing
4. Chemical and Water Treatment
- Ultra-pure water systems
- Chemical dosing and mixing
Technical Specifications
| Parameter | Specification |
|------------------------|------------------|
| Material | 316L Stainless Steel, PTFE Seals |
| Connection Type | Tri-Clamp, Weld, Threaded |
| Pressure Rating | Up to 10 bar (145 psi) |
| Temperature Range | -10°C to 150°C (14°F to 302°F) |
| Actuation Type | Pneumatic (Double-Acting or Spring-Return) + Manual Handle |
| Port Size | 1/2" to 4" (DN15 to DN100) |
| Compliance | 3-A, EHEDG, ASME BPE, FDA |
Why Choose WH Sanitary Pneumatic and Handle Double-Controlled Ball Valve?
1. Hygienic Performance – Meets strict sanitary standards to prevent contamination.
2. Dual-Control Flexibility – Ensures operational continuity with both pneumatic and manual options.
3. High Efficiency – Full-port design minimizes flow resistance.
4. Reliable Sealing – Bubble-tight shut-off prevents leakage.
5. Easy Integration – Compatible with existing pneumatic and sanitary piping systems.
Installation and Maintenance Tips
Installation Guidelines
- Ensure proper alignment with the pipeline to avoid stress on the valve body.
- Use sanitary gaskets to maintain a sterile seal.
- Follow pneumatic system requirements (air pressure, flow rate).
Maintenance Best Practices
- Regularly inspect seals and O-rings for wear.
- Clean using CIP/SIP procedures to maintain hygiene.
- Lubricate moving parts (if required) with food-grade lubricants.
Conclusion
The WH Sanitary Pneumatic and Handle Double-Controlled Ball Valve is an essential component for industries demanding sterility, reliability, and operational flexibility. Its dual-control mechanism, sanitary construction, and high-performance sealing make it a top choice for fluid handling in food, pharmaceutical, and chemical applications.
For businesses seeking automated yet fail-safe valve solutions, this product offers the perfect balance of efficiency and safety.
---
Optimized Keywords for SEO:
- Pneumatic and manual ball valve
- Double-controlled Sanitary Valve
- Hygienic ball valve for food industry
- Pharmaceutical-grade ball valve
- 316L stainless steel ball valve
- Tri-clamp sanitary valve
- EHEDG compliant valve
- CIP/SIP compatible valve
- High-pressure sanitary valve
This guide provides comprehensive information while ensuring SEO optimization for better search engine visibility. Let me know if you need any modifications!
