WH Sanitary Pneumatic Three-Way quick clamp ball valve: The Ultimate Guide (3500+ Words)

 Introduction to WH Sanitary Pneumatic Three-Way Quick Clamp Ball Valves

In today's demanding industrial environments, the WH sanitary pneumatic three-way quick clamp ball valve stands out as a critical component for fluid control systems requiring high hygiene standards, reliability, and operational efficiency. These specialized valves combine the benefits of pneumatic actuation with sanitary design principles to deliver superior performance in food and beverage, pharmaceutical, biotechnology, and other process industries where contamination control is paramount.

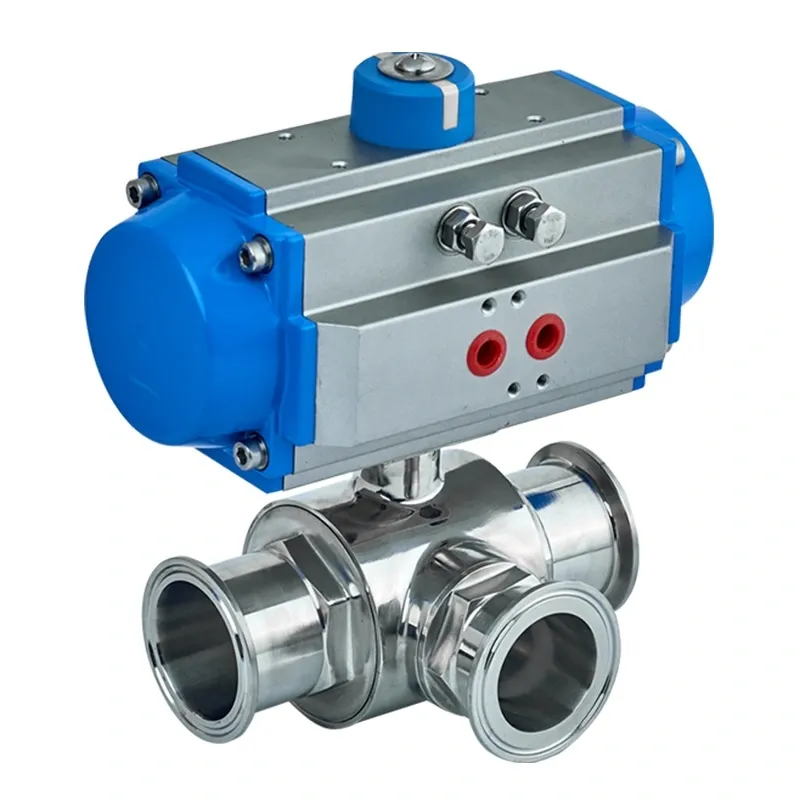

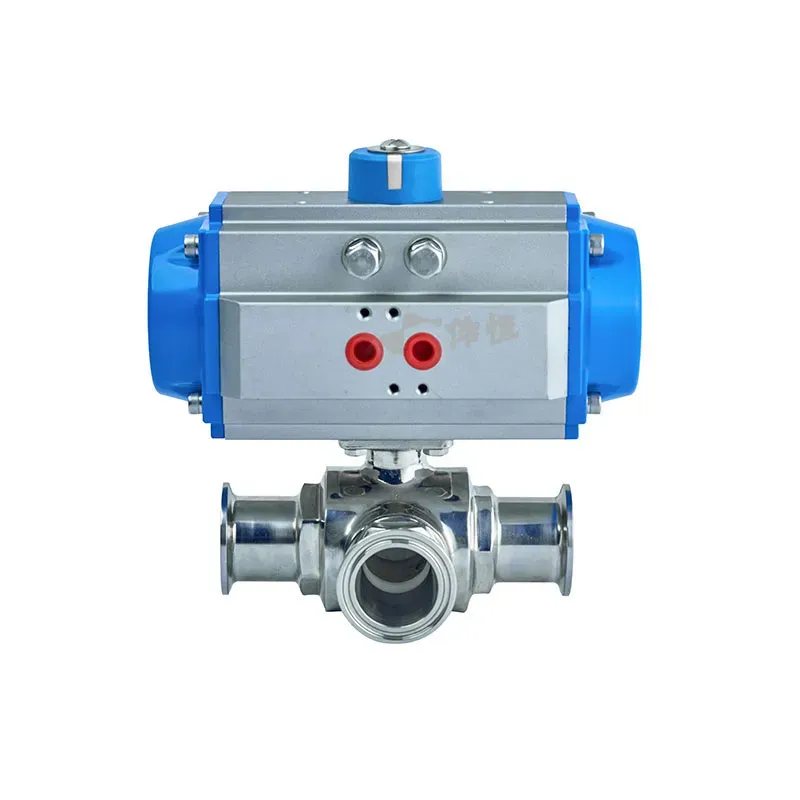

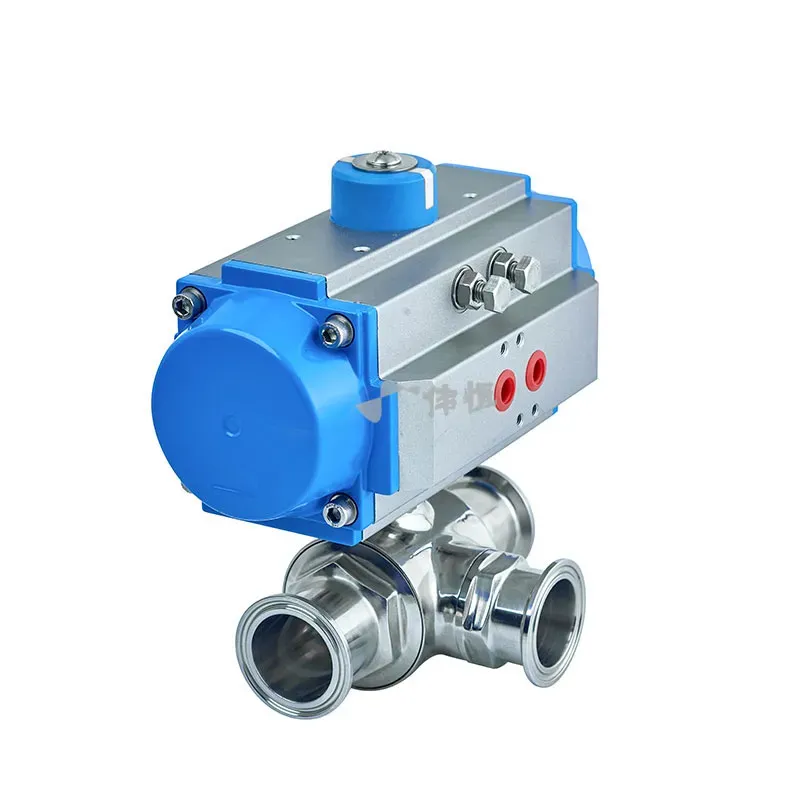

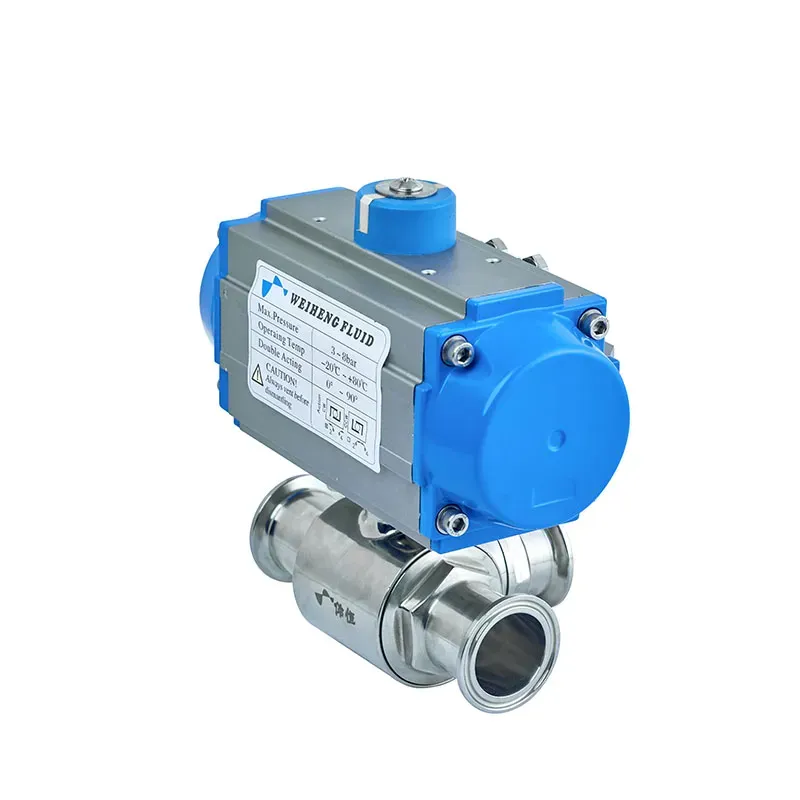

The WH sanitary pneumatic three-way quick clamp ball valve features a unique design that enables quick installation and removal while maintaining a completely sealed system. Its three-way configuration provides versatile flow direction options, making it ideal for complex piping systems that require diversion, mixing, or distribution of process media.

 Key Features and Technical Specifications

 Premium Construction Materials

WH sanitary pneumatic three-way quick clamp ball valves are constructed from high-grade materials to ensure durability and compliance with industry standards:

- Body Material: 316L stainless steel (standard), with optional electropolished finish

- Seat Material: PTFE (standard) or EPDM for specific applications

- Ball Material: 316L stainless steel with mirror finish (Ra ≤ 0.8 μm)

- Gasket Material: FDA-compliant EPDM, FKM, or silicone options

- Actuator Housing: Aluminum or stainless steel with IP65/IP67 protection

 Technical Parameters

- Size Range: 1/2" to 4" (DN15 to DN100)

- Pressure Rating: 10 bar (145 psi) standard, with higher pressure options available

- Temperature Range: -10°C to 150°C (14°F to 302°F) standard, extended ranges available

- Flow Coefficient (Cv): Varies by size (e.g., 1" valve typically has Cv of 25)

- Actuation Time: Typically 1-3 seconds depending on size and air pressure

- Air Supply: 4-7 bar (60-100 psi) clean, dry air required

 Certifications and Compliance

WH sanitary pneumatic three-way quick clamp ball valves meet numerous international standards:

- 3-A Sanitary Standards (3-A 54-07)

- EHEDG (European Hygienic Engineering & Design Group) compliance

- FDA CFR 21 compliant materials

- CE Marking (PED 2014/68/EU when applicable)

- ISO 5211 mounting interface standard for actuators

 Design Advantages and Unique Selling Points

 Hygienic Design Features

The WH sanitary pneumatic three-way quick clamp ball valve incorporates several design elements that make it exceptionally suitable for sanitary applications:

1. Tri-Clamp Connection: Quick clamp (Tri-Clover) ends allow for rapid disassembly and cleaning without tools

2. Drainable Design: No dead spaces or crevices where product could accumulate

3. Surface Finish: Internal surfaces polished to Ra ≤ 0.8 μm or better to prevent bacterial adhesion

4. CIP/SIP Capable: Designed to withstand clean-in-place and sterilize-in-place procedures

5. Seat Design: Spring-loaded seats ensure positive sealing and prevent product entrapment

 Pneumatic Actuation Benefits

The pneumatic actuation system offers significant advantages over manual or electric alternatives:

- Fast Response: Quick opening/closing times improve process control

- Explosion Proof: No electrical components in hazardous areas

- Fail-Safe Options: Spring return for fail-open or fail-closed configurations

- Position Indication: Visual and electronic position feedback available

- Modulating Control: Optional for precise flow regulation

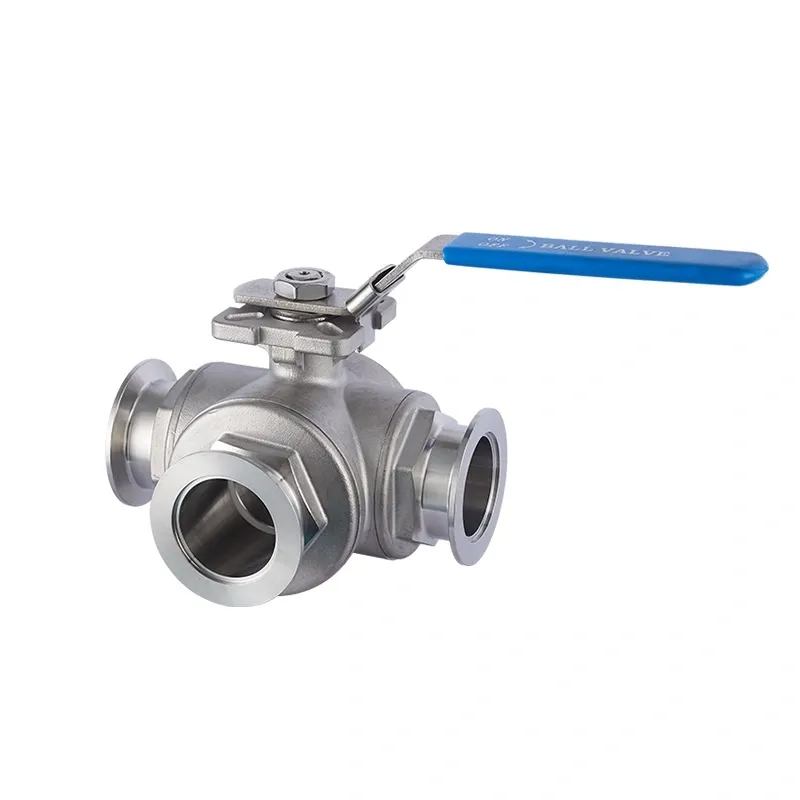

 Three-Way Configuration Versatility

The three-way design provides exceptional flexibility in system design:

1. L-Port and T-Port Options:

   - L-Port: 90° flow diversion between two ports

   - T-Port: Flow distribution to two ports simultaneously

2. Multiple Flow Patterns:

   - Mixing: Two inlets to one outlet

   - Diverting: One inlet to two outlets

   - Bypass Configurations

3. Space Savings: Eliminates need for multiple valves in some applications

 Applications Across Industries

 Food and Beverage Processing

WH sanitary pneumatic three-way quick clamp ball valves are extensively used in:

- Dairy Processing: Milk routing, CIP systems, product diversion

- Beverage Production: Juice blending, syrup distribution, filling lines

- Brewing: Wort transfer, yeast handling, filtration systems

- Meat and Poultry: Brine injection, marinade circulation, cleaning systems

 Pharmaceutical and Biotechnology

Critical applications include:

- Bioreactors: Media and harvest line control

- Filtration Systems: Direction of process streams

- Clean Utilities: WFI (Water for Injection) distribution

- Sterile Processing: Product changeover and system isolation

 Cosmetic and Personal Care

- Mixing and Blending: Precise ingredient control

- Filling Lines: Product routing between multiple packaging lines

- Cleaning Systems: Automated CIP processes

 Installation and Maintenance Guidelines

 Proper Installation Procedures

1. Pre-Installation Checks:

   - Verify valve specifications match application requirements

   - Inspect for shipping damage

   - Clean piping connections before installation

2. Mounting Considerations:

   - Support piping properly to avoid stress on valve body

   - Ensure proper alignment of clamp connections

   - Follow torque specifications for clamp bolts

3. Pneumatic Connections:

   - Use clean, dry air supply with proper filtration

   - Install quick exhaust valves if fast actuation is required

   - Verify air pressure matches actuator requirements

 Routine Maintenance

1. Preventative Maintenance Schedule:

   - Monthly: Inspect for leaks, verify actuator operation

   - Quarterly: Check seat wear, inspect sealing surfaces

   - Annually: Complete disassembly and inspection

2. Cleaning Procedures:

   - Follow plant CIP procedures for in-place cleaning

   - For manual cleaning, use approved cleaners and soft brushes

   - Always rinse thoroughly with clean water

3. Common Replacement Parts:

   - Seals and gaskets (most frequent replacement)

   - Valve seats (when wear affects performance)

   - Actuator seals and springs

 Troubleshooting Common Issues

 Performance Problems and Solutions

1. Leakage Through Valve:

   - Possible Causes: Worn seat, damaged ball, improper installation

   - Solutions: Replace seat, inspect ball surface, verify proper torque on clamps

2. Slow Actuation:

   - Possible Causes: Low air pressure, restricted air lines, actuator issues

   - Solutions: Check air supply, inspect air lines, service actuator

3. Sticking or Binding:

   - Possible Causes: Product buildup, misalignment, worn components

   - Solutions: Clean thoroughly, check piping alignment, replace worn parts

 Actuator-Specific Issues

1. Failure to Move:

   - Verify air supply is present and at correct pressure

   - Check for obstructions in mechanical linkage

   - Inspect solenoid valves in control system

2. Partial Stroke:

   - May indicate insufficient air pressure or volume

   - Could signal internal actuator damage

   - Might suggest excessive load on valve

 How to Select the Right WH Sanitary Pneumatic Three-Way Quick Clamp Ball Valve

 Key Selection Criteria

1. Process Requirements:

   - Flow rate and pressure drop considerations

   - Temperature and viscosity of process media

   - Required flow pattern (L-port vs. T-port)

2. Sanitary Standards:

   - Determine necessary certifications (3-A, EHEDG, etc.)

   - Surface finish requirements based on application

   - Material compatibility with cleaning agents

3. Actuation Needs:

   - Speed of operation requirements

   - Fail-safe position needs

   - Control interface requirements (I/P, digital, etc.)

 Sizing Considerations

1. Flow Capacity:

   - Calculate required Cv based on system parameters

   - Consider future expansion needs

2. Connection Size:

   - Match to existing piping system

   - Consider velocity limitations for sensitive products

3. Actuator Sizing:

   - Ensure sufficient torque for operating conditions

   - Account for any dynamic loads

 Comparison with Alternative Valve Types

 Versus Manual Sanitary Ball Valves

- Advantages:

  - Faster operation

  - Remote control capability

  - Better for frequent cycling

  - Improved consistency

- Disadvantages:

  - Higher initial cost

  - Requires air supply

  - More complex maintenance

 Versus Other Three-Way Valve Types

1. Diaphragm Valves:

   - Ball valves offer lower pressure drop

   - Better for higher temperature applications

   - More durable in abrasive services

2. Butterfly Valves:

   - Ball valves provide better shut-off

   - More suitable for viscous products

   - Superior cleanability

 Cost Considerations and ROI Analysis

 Initial Investment vs. Lifetime Costs

While WH sanitary pneumatic three-way quick clamp ball valves have a higher upfront cost than manual alternatives, they offer significant long-term benefits:

1. Labor Savings:

   - Reduced manual operation time

   - Lower cleaning and maintenance requirements

2. Process Improvements:

   - Reduced product loss from better control

   - Higher system uptime from reliable operation

3. Quality Benefits:

   - More consistent process control

   - Reduced contamination risk

 Typical Price Range

Prices vary based on size, materials, and features:

- 1" Basic Model: $500-$800

- 2" with Advanced Features: $1,200-$1,800

- 4" High-Performance Version: $2,500-$3,500

 Future Trends in Sanitary Valve Technology

 Emerging Innovations

1. Smart Valve Technology:

   - Integrated sensors for position, temperature, and flow

   - Wireless connectivity for condition monitoring

   - Predictive maintenance capabilities

2. Advanced Materials:

   - New polymer blends for longer seat life

   - Coatings for improved wear resistance

   - Antimicrobial surface treatments

3. Energy Efficiency:

   - Low-power actuators

   - Improved sealing to reduce air consumption

   - Lightweight designs

 Industry 4.0 Integration

WH sanitary pneumatic three-way quick clamp ball valves are evolving to meet smart factory requirements:

- Digital twins for valve performance simulation

- Cloud-based monitoring of valve fleets

- Automated documentation for regulatory compliance

- AI-driven optimization of valve performance

 Conclusion: Why Choose WH Sanitary Pneumatic Three-Way Quick Clamp Ball Valves

The WH sanitary pneumatic three-way quick clamp ball valve represents the pinnacle of hygienic fluid control technology, combining exceptional cleanability with reliable pneumatic operation and versatile three-way functionality. Its robust construction meets the most demanding sanitary standards while providing the operational flexibility needed in modern processing plants.

For engineers and plant managers seeking to optimize their fluid handling systems, these valves offer:

- Unmatched hygienic performance for critical applications

- Reliable, repeatable operation with minimal maintenance

- Flexible configuration options to solve complex flow control challenges

- Long-term cost savings through reduced downtime and improved efficiency

Whether you're designing a new processing line or upgrading existing equipment, WH sanitary pneumatic three-way quick clamp ball valves provide a future-proof solution that meets today's stringent requirements while adapting to tomorrow's technological advancements.
