The Role of Insulated Valves in Preventing Condensation

Introduction

Condensation is a common phenomenon in industrial processes, HVAC systems, and various fluid handling applications where temperature differentials exist between the process medium and the surrounding environment. This natural process can lead to numerous operational challenges, including corrosion, water hammer, reduced efficiency, and potential system failures. Insulated valves play a critical role in mitigating these issues by maintaining consistent temperatures and preventing the formation of condensate. This paper explores the mechanisms of condensation, the design and function of insulated valves, their applications across industries, and the benefits they provide in preventing condensation-related problems.

Understanding Condensation in Industrial Systems

Condensation occurs when water vapor in the air comes into contact with a surface whose temperature is below the dew point, causing the vapor to transition into liquid form. In industrial settings, this typically happens when:

1. Hot process fluids flow through pipes and valves exposed to cooler ambient air

2. Cold fluids (such as refrigerants or cryogenic materials) interact with warmer, humid environments

3. Temperature fluctuations cause surfaces to cycle above and below the dew point

The consequences of uncontrolled condensation can be severe:

- Corrosion: Water accumulation accelerates metal degradation through oxidation and electrochemical reactions

- Water hammer: Sudden vapor collapse can create destructive pressure waves in piping systems

- Freezing: In cold applications, condensate can freeze and damage valve components

- Process contamination: Water mixing with process fluids can compromise product quality

- Thermal inefficiency: Condensation represents unwanted heat transfer that reduces system efficiency

Fundamentals of Insulated Valves

Insulated valves are specially designed to minimize heat transfer between the process fluid and the external environment. They achieve this through several key features:

1. Thermal Barrier Design

The core principle involves creating a thermal break between the process fluid and the valve exterior. This is accomplished through:

- Insulation jackets: External covers filled with high-performance insulating materials

- Extended bonnets: Creating a longer path for heat transfer in cryogenic applications

- Double-walled construction: Some designs feature an air gap between inner and outer walls

2. Material Selection

Insulated valves utilize materials with low thermal conductivity:

- Stainless steel bodies: Reduce heat transfer compared to carbon steel

- Non-metallic components: Where appropriate, use of plastics or composites

- Specialized coatings: Thermal barrier coatings applied to critical surfaces

3. Insulation Integration

Modern insulated valves are designed to work seamlessly with pipe insulation systems:

- Flanged connections: Allow for continuous insulation across pipe-valve joints

- Pre-insulated models: Some valves come with factory-installed insulation

- Jacket compatibility: Designed to accommodate standard insulation thicknesses

Types of Insulated Valves

Different valve types can be insulated to address specific application requirements:

1. Insulated Gate Valves

- Used for on/off service in steam and hot fluid systems

- Feature full-port designs to minimize pressure drop

- Often include extended bonnets for high-temperature applications

2. Insulated Globe Valves

- Provide better flow control than gate valves

- Common in steam distribution systems

- Can incorporate heat tracing elements for critical services

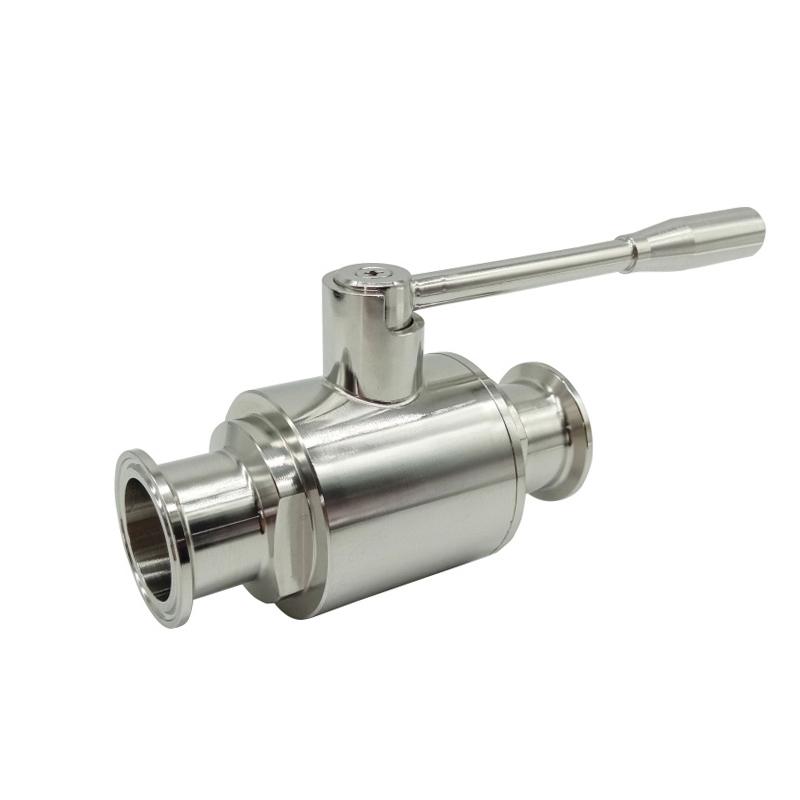

3. Insulated Ball Valves

- Quarter-turn operation ideal for frequent cycling

- Popular in cryogenic and refrigeration systems

- May include extended stems to keep operators away from extreme temperatures

4. Insulated Butterfly Valves

- Compact design suitable for large diameter pipes

- Often used in HVAC systems and district heating

- Can incorporate thermal breaks in the disc design

5. Specialized Insulated Valves

- Cryogenic valves: Feature extended bonnets to keep stem seals at ambient temperatures

- Steam jacketed valves: Use steam tracing to maintain temperature

- Electrically heat-traced valves: Incorporate heating elements for precise temperature control

Applications of Insulated Valves

1. Steam Systems

Steam distribution networks represent one of the most common applications for insulated valves:

- Prevents condensate formation: Maintaining steam quality and preventing water hammer

- Reduces heat loss: Improves overall system efficiency

- Protects personnel: Minimizes external surface temperatures for safety

2. Cryogenic Processing

In LNG, industrial gases, and low-temperature applications:

- Prevents ice formation: On valve exteriors that could interfere with operation

- Maintains fluid state: Prevents unwanted vaporization of cryogenic liquids

- Protects seals: Keeps stem packing at operable temperatures

3. HVAC Systems

Heating, ventilation and air conditioning systems benefit from insulated valves:

- Chilled water systems: Prevent condensation and dripping in humid environments

- Hot water heating: Maintain thermal efficiency in distribution networks

- Refrigeration lines: Avoid frost buildup on valve exteriors

4. Chemical Processing

Where temperature maintenance is critical to process control:

- Prevents product degradation: By maintaining consistent temperatures

- Avoids hazardous reactions: Some chemicals react dangerously with water

- Maintains viscosity: For materials that thicken at lower temperatures

5. Oil and Gas Pipelines

Particularly in cold climates or subsea applications:

- Prevents hydrate formation: In natural gas pipelines

- Maintains flow characteristics: For heavy crude oils

- Protects against freezing: In water-containing streams

Design Considerations for Effective Condensation Prevention

Proper selection and implementation of insulated valves requires attention to several factors:

1. Thermal Performance Requirements

- Temperature differential: Between process fluid and environment

- Dew point calculation: To determine insulation needs

- Heat transfer rates: Based on valve materials and design

2. Environmental Conditions

- Ambient temperature range: Seasonal variations must be considered

- Humidity levels: Higher humidity increases condensation risk

- Exposure conditions: Indoor/outdoor, weather protection needs

3. Process Parameters

- Fluid temperature: Both normal and extreme operating conditions

- Flow characteristics: Continuous vs. intermittent service

- Pressure ratings: Impact on valve material selection

4. Maintenance Accessibility

- Insulation removal/replacement: For routine maintenance

- Inspection requirements: Access points for condition monitoring

- Repairability: Design features that facilitate servicing

5. Regulatory Compliance

- Energy efficiency standards: Meeting local requirements

- Safety regulations: Particularly for high-temperature applications

- Environmental codes: Preventing hazardous leaks or emissions

Benefits of Insulated Valves in Condensation Control

The proper use of insulated valves provides numerous advantages:

1. Operational Reliability

- Reduced corrosion: Extends valve service life

- Prevents freezing: Maintains operational readiness in cold conditions

- Minimizes water hammer: Protects entire piping system integrity

2. Energy Efficiency

- Lower heat loss: Reduces energy consumption in heated systems

- Decreased cooling load: In refrigerated applications

- Improved process control: Maintaining optimal temperatures

3. Safety Improvements

- Reduced burn hazards: By lowering external surface temperatures

- Prevents slip hazards: From condensate dripping

- Minimizes ice accumulation: That could create fall risks

4. Cost Savings

- Lower maintenance costs: From reduced corrosion and wear

- Extended equipment life: Of both valves and connected systems

- Reduced energy costs: Through improved thermal efficiency

5. Environmental Benefits

- Lower carbon footprint: From reduced energy consumption

- Prevents water contamination: By keeping condensate out of processes

- Reduces material waste: Through longer service intervals

Installation and Maintenance Best Practices

To maximize the effectiveness of insulated valves in preventing condensation:

1. Proper Installation Techniques

- Continuous insulation: Ensuring no gaps at valve-pipe connections

- Correct insulation thickness: Based on thermal calculations

- Proper sealing: Of insulation jackets to prevent moisture ingress

2. Routine Maintenance

- Insulation inspection: For damage or moisture absorption

- Surface temperature checks: Using infrared thermography

- Condensate monitoring: For early detection of insulation failure

3. Common Pitfalls to Avoid

- Inadequate insulation coverage: Leaving critical areas exposed

- Compressed insulation: Reducing its effectiveness

- Ignoring manufacturer guidelines: For installation and maintenance

Emerging Technologies in Insulated Valve Design

Recent advancements are improving the performance of insulated valves:

1. Smart Insulation Systems

- Embedded sensors: To monitor temperature differentials

- Self-regulating insulation: That adjusts to environmental conditions

- IoT connectivity: For remote monitoring of valve performance

2. Advanced Materials

- Aerogel insulation: Providing superior performance in compact forms

- Phase-change materials: That absorb excess heat

- Nanocomposite coatings: Offering both insulation and corrosion protection

3. Improved Manufacturing Techniques

- Additive manufacturing: Allowing complex internal geometries for thermal breaks

- Precision casting: For consistent insulation cavity formation

- Automated assembly: Ensuring proper insulation placement

Conclusion

Insulated valves serve as critical components in preventing condensation across numerous industrial and commercial applications. By effectively managing heat transfer between process fluids and the environment, these specialized valves address the root causes of condensation while delivering operational, safety, and economic benefits. As technology advances, insulated valve designs continue to evolve, offering even greater performance in condensation control. Proper selection, installation, and maintenance of insulated valves remain essential for maximizing their effectiveness in preserving system integrity, improving energy efficiency, and ensuring reliable operation in temperature-sensitive applications. The strategic implementation of insulated valves represents a sound engineering solution to the persistent challenges posed by condensation in fluid handling systems.
