sanitary electric ball valve is a type of valve that has an electric actuator to drive the valve stem to rotate and control the opening and closing of the ball. It can be remotely controlled and is easy to install and use. It is mainly used to control the flow and unclog the media in the pipeline. Its flow pipe is smooth and seamless inside, which can be used to transfer different medium in flanges, welded, quick-install, internal/external threads the food, biopharmaceutical fields.
Ball valve is a new type of valve that has been widely used in recent years. It has been widely used in food and beverage, pharmaceutical, petroleum, chemical, biological processing and other industry.Electric ball valve is a commonly used valve, it has the characteristics of quick disassembly, suitable for the need for quick switching occasions. This valve is usually driven by an electric actuator, which controls the opening and closing of the valve through the rotation of the ball.
When installing and using electric ball valves, the following points need to be noted:
The structure of the electric ball valve is simple, mainly composed of a wide body, a ball, a sealing ring and an electric actuator, it is easy to operate, can be controlled by the electric actuator to achieve the opening and closing of the valve, in addition, its sealing performance is good, can effectively prevent the leakage of fluid
The series ball valves are used for material transfer and control. This type of valve is extensively used in food, beverage processing and pharmacy, chemical industry.
There are various standard valve series can be supplied, they are the DIN,3A, SMS , ISO/IDF , BS/RJT , ASME/BPE standard etc. ou can choose us with confidence, our products meet the standards of multiple regions, such as American Standards, Japanese Industrial Standard, Korean Standard, German Standard and Italian Standard. The constitute elements of ball valve always included: one handle, one ball body with transfixion cavity, valve body, valve central spindle and spindle shaft seal. The specification of ball valve series are welded ball valve, clamped ball valve, threaded ball valve etc.
Design and features:

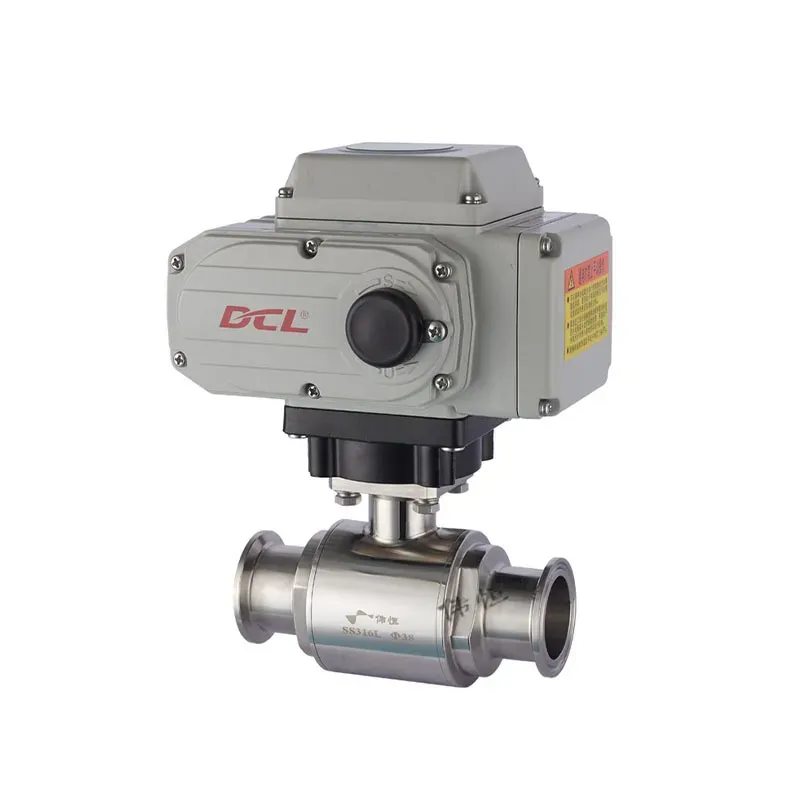

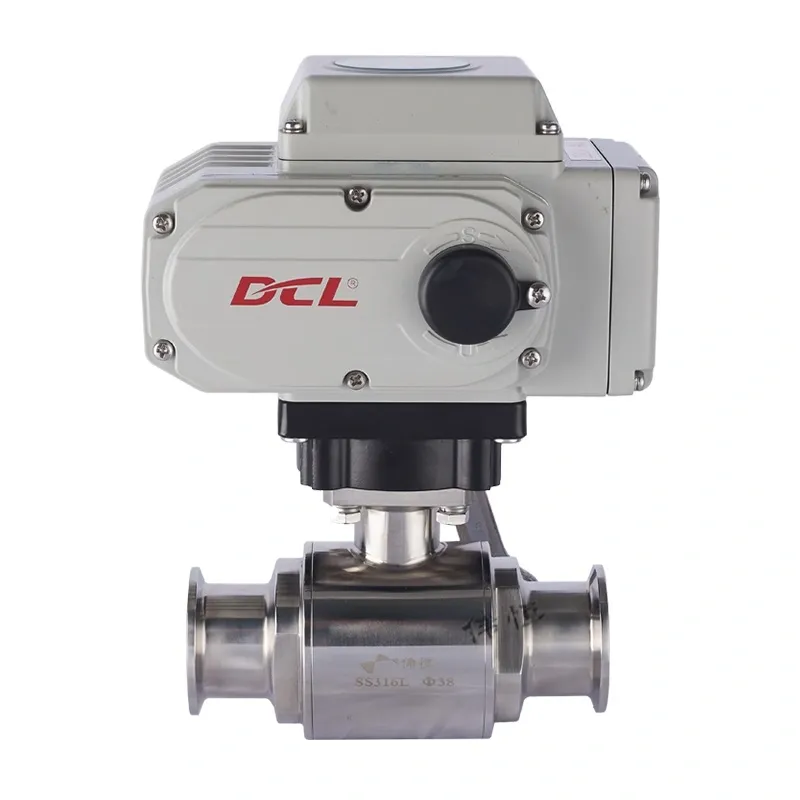

Name: Electric straight through quick clamp ball valve
Size: DN10-DN100 or 1/2" - 4"
Valve body material: Stainless steel 304/304L, stainless steel 316/316L
Ends: Flanges, welded, quick clamp, union, threads ( internal/external thread)
Operate mode: Manual/handle, pneumatic, electric
Max. Work Pressure: 10 bar
Max. Working Temperature: 150ºC
Material of Seal: PTFE, SI, FEP, PFA, EPDM, NBR, FDA177.2600
Medium: Beer, dairy, beverage, pharmacy, cosmetics, fruit juice, liquor, red wine, chemical, chemical reagent, daily chemical, medicine, injection, botany, organic raw material, fermentation, adhesive, perfume, essential oil
1. Introduction to Electric Actuator Valves
An electric actuator valve is one of the most important components in modern industrial automation, providing precise, stable, and reliable control of fluid flow through electrically driven mechanisms. As industries continue to embrace automation and digitalization, the demand for accurate and programmable valve control has increased dramatically. Electric actuator valves—also known as motorized valves, electric valve actuators, or motor operated valves (MOVs)—play a crucial role in ensuring that pipelines, process equipment, and fluid systems maintain proper operating conditions.
Unlike pneumatic or hydraulic actuator valves that rely on air pressure or oil pressure, an electric actuator valve uses an electric motor to generate torque and position the valve. This type of valve control is ideal for situations requiring high accuracy, steady control, remote automation, and integration with smart systems such as SCADA, PLC, DCS, and IoT-based industrial platforms.
Today, electric actuator valves are used across various industries, including power generation, HVAC, chemical manufacturing, water treatment, petroleum refining, food processing, and pharmaceutical production. Their exceptional performance, low maintenance requirements, and intelligent features make them a preferred choice for modern process control.
2. Working Principle of an Electric Actuator Valve
An electric actuator valve consists of two major parts:
The electric actuator, which produces the motion
The valve body, which regulates fluid flow
When the actuator receives an electrical signal, the motor rotates or moves linearly, causing the valve to open, close, or position itself somewhere in between. The control signal can be:
On/Off control (Open/Close)
Modulating control (0–10V, 4–20mA, or digital control signals)
Intelligent control via fieldbus protocols (Modbus, Profibus, CANbus, Ethernet/IP)
Rotary electric actuators rotate the valve stem 90°, used for:
Ball valves
Butterfly valves
Plug valves
Linear actuators convert rotation into linear motion, ideal for:
Globe valves
Gate valves
Diaphragm valves
These advanced systems include:
Microprocessor control
Display screens
Built-in diagnostics
Data logging
Auto-calibration
Smart actuators enhance the functionality of an electric actuator valve by offering precise control and real-time monitoring, supporting predictive maintenance and energy optimization.
3. Components of an Electric Actuator Valve
A complete electric actuator valve typically includes:
The core driving mechanism, typically AC or DC.
Motors include:
DC motors for fast switching
Servo motors for precision
Stepper motors for positioning accuracy
Reduces motor speed and increases torque, ensuring the valve receives enough power to move even under pressure.
Provides logic and control functions, including:
Position feedback
Torque sensing
Limit switches
Overheat protection
Manual override
May be made of:
Stainless steel
Carbon steel
Brass
PVC / CPVC
Cast iron
Types include ball valves, butterfly valves, globe valves, gate valves, and diaphragm valves.
Show real-time valve status.
Allows manual operation during power failure.
4. Advantages of an Electric Actuator Valve
Electric actuator valves offer several benefits that distinguish them from pneumatic or hydraulic systems:
Electric actuators provide extremely accurate positioning, ideal for:
Chemical dosing
Flow balancing
HVAC air and water systems
Sensitive laboratory processes
Since they consume electricity only when moving, motorized valves offer good energy savings compared to pneumatic valves that require constant air supply.
Electric actuator valves have fewer moving parts and do not require compressors, pipelines, or oil pumps used by pneumatic and hydraulic systems.
No air venting, oil leakage, or noise—ideal for indoor and cleanroom environments.
Advanced features include:
Auto calibration
Position memory
Overload protection
Digital communication
Remote diagnostics
These features significantly enhance system reliability.
Modern factories operate with smart platforms, and electric actuator valves integrate seamlessly with:
PLC
SCADA
BMS
Industrial IoT
Building automation systems
Electric actuator valves are used in multiple industrial and commercial sectors thanks to their accuracy and programmability.
Used in:
Pump control
Sludge management
Filtration systems
Desalination plants
Electric actuator valves ensure precise flow control and reduce water consumption.
Resistant to corrosive chemicals and high temperatures. Ideal for:
Chemical blending
Petrochemical pipeline control
Storage tank safety systems
Widely used in central air conditioning and building automation:
Chilled water control
VAV systems
Steam and hot water systems
Used for:
Cooling towers
Boiler feedwater
Fuel gas flow
Steam management
Electric actuator valves help maintain hygiene standards due to their clean operation.
Used in:
Purified water systems
Sterile steam lines
Precise drug formulation processes
Ideal for ultra-clean environments where contamination must be avoided.
Used for slurry, ore processing, and reagent distribution.
6. Types of Electric Actuator Valves
Benefits:
Tight shutoff
Quick rotation
Suitable for gas and liquid
Used in water systems, chemical pipelines, and HVAC.
Lightweight and high-flow capacity.
Used in ventilation, air ducts, water distribution, and industrial plants.
Designed for accurate throttling and flow regulation.
Used in high-pressure and large-diameter pipelines.
Common in pharmaceutical and hygienic processing.
Used for gate and globe valves needing multi-turn motion.
Used for ball, butterfly, and plug valves.
7. Technical Specifications
Common specifications include:
Voltage: 24VDC, 110VAC, 220VAC, 380VAC
Control Mode: On/off, modulating, intelligent
Torque Range: 5–5000 Nm
Working Temperature: –20°C to 250°C
Ingress Protection: IP67 / IP68 (optional)
Communication Protocols: Modbus, Profibus, CANbus, HART
Valve Size: DN15–DN2000
Material: SS304, SS316, WCB, brass, PVC
8. Installation and Maintenance
Ensure proper wiring according to electrical standards
Check torque setting and alignment
Protect actuator from moisture and vibration
Perform initial stroke test
Regular lubrication
Check electrical connections
Clean actuator housing
Inspect gasket and seals
Update firmware in smart actuators
9. Selecting the Right Electric Actuator Valve
When choosing an electric actuator valve, consider:
Valve type (ball, butterfly, globe)
Control requirements (open/close or modulating)
Voltage and power supply
Torque and speed
Environment (hazardous area, outdoor, humidity)
Media type (water, chemicals, steam, gas)
Industrial certifications
