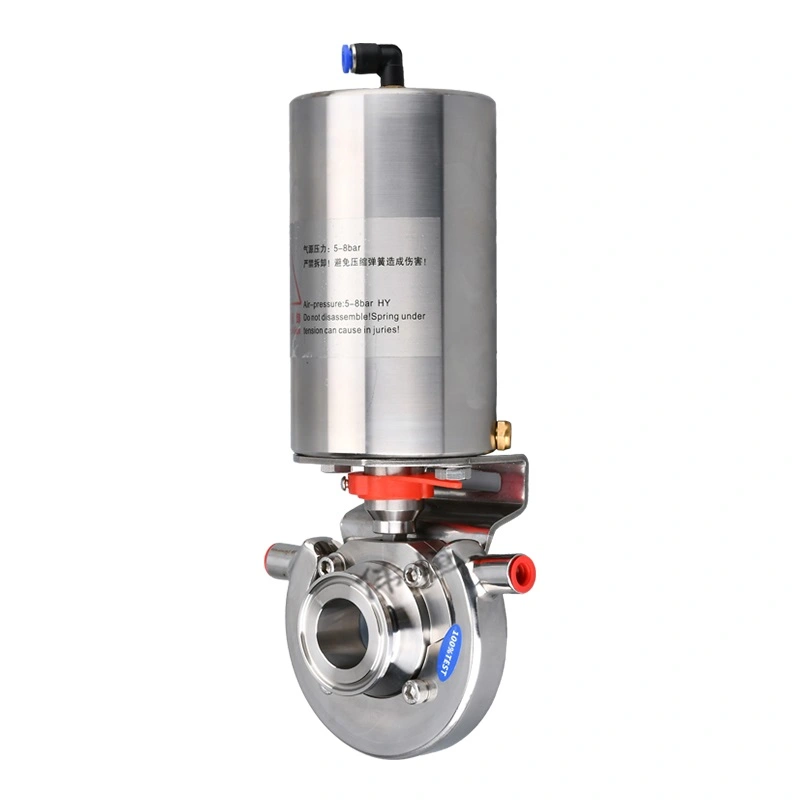

Best Practices for Installing Sanitary Forged Valves

Introduction

Sanitary forged valves are critical components in industries where hygiene, cleanliness, and contamination control are paramount, such as pharmaceuticals, food and beverage, biotechnology, and cosmetics. These valves are designed to meet stringent sanitary standards, ensuring smooth operation, easy cleaning, and minimal risk of bacterial growth.

Proper installation of sanitary forged valves is essential to maintain system integrity, prevent leaks, and ensure long-term performance. This guide outlines the best practices for installing sanitary forged valves, covering preparation, installation techniques, testing, and maintenance.

---

1. Pre-Installation Preparation

Before installing sanitary forged valves, thorough preparation is necessary to ensure a successful installation process.

1.1. Valve Selection and Inspection

- Material Compatibility: Ensure the valve material (typically 316L stainless steel) is compatible with the process media to prevent corrosion or contamination.

- Pressure and Temperature Ratings: Verify that the valve meets the system’s pressure and temperature requirements.

- Surface Finish: Check the internal surface finish (typically Ra ≤ 0.8 µm or better) to ensure it meets sanitary standards.

- Inspection: Examine the valve for any visible defects, such as scratches, dents, or improper machining. Ensure all components (gaskets, seals, and clamps) are included.

1.2. Pipeline Preparation

- Cleanliness: The pipeline must be thoroughly cleaned and free from debris, oils, or residues before installation.

- Alignment: Ensure proper alignment of pipe ends to avoid stress on the valve.

- End Connections: Verify that the pipe ends are properly prepared for clamp or weld connections.

1.3. Safety Considerations

- Personal Protective Equipment (PPE): Wear appropriate PPE, including gloves and safety glasses.

- System Isolation: Ensure the system is depressurized and drained before installation.

---

2. Installation Procedures

The installation process varies depending on the type of connection (clamp, weld, or threaded). Below are the best practices for each method.

2.1. Clamp-Type Installation (Tri-Clamp)

Clamp-type connections are common in sanitary systems due to their ease of assembly and disassembly.

Steps:

1. Position the Valve: Align the valve between the pipe ends, ensuring proper orientation (flow direction should match the valve’s arrow indicator).

2. Install Gaskets: Place a sanitary gasket (typically EPDM, PTFE, or silicone) between the valve and pipe flanges.

3. Secure with Clamps: Position the tri-clamp over the connection and tighten evenly to avoid distortion.

4. Torque Check: Follow the manufacturer’s recommended torque specifications to prevent over-tightening.

2.2. Welded Installation

Welded connections provide a permanent, leak-proof solution but require skilled execution.

Steps:

1. Fit-Up: Align the valve and pipes precisely to ensure a proper fit before welding.

2. Tack Weld: Secure the valve in place with tack welds before full welding.

3. Orbital Welding (Preferred): Use automated orbital welding for consistent, high-quality welds.

4. Purge Welding (for Stainless Steel): Use inert gas (argon) to prevent oxidation during welding.

5. Post-Weld Inspection: Check for weld defects (porosity, cracks) and ensure a smooth internal surface.

2.3. Threaded Installation

Threaded connections are less common in sanitary applications but may be used in low-pressure systems.

Steps:

1. Apply Thread Sealant: Use a food-grade thread sealant to prevent leaks.

2. Hand-Tighten First: Avoid cross-threading by initially tightening by hand.

3. Final Tightening: Use a wrench to secure the connection, but avoid excessive force.

---

3. Post-Installation Testing

After installation, testing is crucial to ensure the valve functions correctly and the system remains leak-free.

3.1. Pressure Testing

- Conduct a hydrostatic or pneumatic pressure test to verify integrity.

- Gradually increase pressure to the system’s maximum operating level and hold for a specified duration.

- Inspect for leaks at connections and welds.

3.2. Functional Testing

- Cycle the valve (open/close) several times to ensure smooth operation.

- Check for proper actuation (if automated) and verify position indicators.

3.3. Cleanliness Verification

- Perform a visual inspection for contamination.

- Use swab tests or particle counters if required by industry standards.

---

4. Maintenance and Troubleshooting

Proper maintenance extends the lifespan of sanitary forged valves and prevents operational issues.

4.1. Routine Maintenance

- Cleaning: Clean valves regularly using CIP (Clean-in-Place) or SIP (Sterilize-in-Place) methods.

- Lubrication: Apply food-grade lubricant to moving parts (if applicable).

- Gasket Replacement: Inspect and replace gaskets periodically to prevent leaks.

4.2. Common Issues and Solutions

| Issue | Possible Cause | Solution |

|-----------|------------------|--------------|

| Leakage | Damaged gasket, improper torque | Replace gasket, re-torque clamps |

| Sticking Valve | Contamination, lack of lubrication | Clean, lubricate, or replace seals |

| Corrosion | Incorrect material selection | Replace with compatible material |

---

5. Conclusion

Installing sanitary forged valves correctly is essential for maintaining system hygiene, efficiency, and reliability. By following best practices in selection, installation, testing, and maintenance, industries can ensure optimal performance and compliance with sanitary standards. Proper training and adherence to procedures will minimize risks and enhance operational longevity.

By implementing these guidelines, engineers and technicians can achieve seamless integration of sanitary forged valves into critical processing systems, ensuring safety, cleanliness, and operational excellence.
