Sanitary Forged Valves for High-Purity Gas Systems

Introduction

In high-purity gas systems used across semiconductor manufacturing, pharmaceutical production, biotechnology, and other critical industries, maintaining contamination-free environments is paramount. Sanitary forged valves play a crucial role in these applications by providing reliable flow control while meeting stringent purity requirements. These specialized valves combine the durability of forged construction with the cleanliness standards necessary for ultra-high-purity (UHP) applications.

This comprehensive guide explores the design principles, materials, manufacturing processes, and performance characteristics of sanitary forged valves for high-purity gas systems. We'll examine their advantages over conventional valves, industry standards governing their production, installation considerations, and maintenance best practices to ensure optimal performance in sensitive applications.

Fundamentals of Sanitary Forged Valves

Definition and Purpose

Sanitary forged valves are precision-engineered flow control devices designed specifically for high-purity gas systems where contamination control is critical. The term "sanitary" refers to their ability to maintain cleanliness and prevent particle generation, while "forged" indicates their manufacturing method using forged metal components for superior strength and reliability.

These valves serve three primary functions in high-purity systems:

1. Flow regulation - Controlling the rate of gas flow through pipelines

2. Isolation - Completely stopping gas flow when needed

3. Direction control - Managing flow paths in complex distribution systems

Key Design Features

Sanitary forged valves incorporate several distinctive design elements that differentiate them from industrial-grade valves:

1. Forged Body Construction: The valve body and critical components are forged from high-quality metals rather than cast, providing better structural integrity and resistance to stress cracking.

2. Electropolished Surfaces: All wetted surfaces undergo electropolishing to achieve ultra-smooth finishes (typically<10 Ra µin) that minimize particle adhesion and outgassing.

3. Minimal Dead Space: Special geometries eliminate pockets where gas could stagnate or contaminants could accumulate.

4. High-Purity Seals: Use of non-shedding materials like PTFE, Kalrez, or metal-to-metal seals that won't degrade or contaminate the gas stream.

5. Cleanroom Assembly: Valves are assembled in controlled environments to prevent particulate contamination during manufacturing.

6. Bleed-and-Purge Capabilities: Many designs incorporate features to facilitate proper system purging and eliminate dead legs.

Materials Selection for High-Purity Applications

The choice of materials in sanitary forged valves significantly impacts their performance in high-purity gas systems. Material selection must consider:

- Chemical compatibility with process gases

- Corrosion resistance to maintain purity

- Mechanical properties for durability

- Thermal characteristics for operating conditions

- Cleanability for maintenance procedures

Common Body Materials

1. Stainless Steel 316L: The most widely used material for high-purity valves due to its excellent corrosion resistance, mechanical strength, and cleanability. The "L" designation indicates low carbon content (<0.03%) to prevent carbide precipitation during welding.

2. Stainless Steel 316L-VAR: Vacuum arc remelted (VAR) version with even lower impurity levels and improved homogeneity for critical applications.

3. Alloy C-22: A nickel-chromium-molybdenum alloy offering superior resistance to corrosive gases like hydrogen chloride or chlorine.

4. Alloy 625: Another nickel-based superalloy with outstanding corrosion resistance and high-temperature capabilities.

Seal Materials

1. PTFE (Polytetrafluoroethylene): Offers excellent chemical resistance and low outgassing but has limited temperature range (-200°C to +260°C).

2. PFA (Perfluoroalkoxy): Similar to PTFE but with improved mechanical properties and higher purity.

3. FFKM (Perfluoroelastomers): Kalrez and similar materials provide exceptional chemical resistance at higher temperatures than PTFE.

4. Metal Seals: Used in ultra-high vacuum applications where elastomers would outgas excessively.

Surface Treatments

1. Electropolishing: Removes surface impurities and creates a passive oxide layer while achieving ultra-smooth surfaces.

2. Passivation: Chemical treatment to enhance the natural chromium oxide layer on stainless steel.

3. Special Coatings: In some cases, coatings like gold or nickel may be applied for specific gas compatibility.

Manufacturing Processes

The production of sanitary forged valves involves specialized manufacturing techniques to ensure they meet the stringent requirements of high-purity gas systems.

Forging Process

1. Material Selection: High-purity metal billets are carefully inspected and tested for composition.

2. Heating: Billets are heated to precise temperatures for optimal forging.

3. Forging: Using hydraulic presses or hammers, the heated metal is shaped into near-net valve components.

4. Heat Treatment: Components undergo controlled heating and cooling to achieve desired mechanical properties.

5. Machining: Precision CNC machining creates final dimensions and surface finishes.

Cleaning and Finishing

1. Degreasing: Removal of all machining oils and lubricants.

2. Acid Cleaning: Chemical baths remove surface contaminants.

3. Passivation: Nitric or citric acid treatments enhance corrosion resistance.

4. Electropolishing: Final surface treatment to achieve ultra-smooth finishes.

5. Cleanroom Assembly: Final assembly in ISO Class 4 or better cleanrooms.

Quality Control Measures

1. Material Certification: Verification of alloy composition and properties.

2. Dimensional Inspection: Precision measurement of all critical dimensions.

3. Surface Roughness Verification: Confirmation of Ra values meet specifications.

4. Helium Leak Testing: Detection of even minute leaks.

5. Particle Count Testing: Verification of cleanliness levels.

6. Functional Testing: Operational testing under simulated service conditions.

Types of Sanitary Forged Valves

Several valve types are commonly used in high-purity gas systems, each with specific advantages for different applications.

Diaphragm Valves

1. Design: Uses a flexible diaphragm to regulate flow without internal dead space.

2. Advantages:

- Zero dead volume

- Excellent cleanliness

- Smooth flow characteristics

- Minimal particle generation

3. Applications:

- Semiconductor gas delivery

- Pharmaceutical bulk gas systems

- Analytical instrumentation

Bellows-Sealed Valves

1. Design: Incorporates metal bellows to create a hermetic stem seal.

2. Advantages:

- Eliminates stem leakage

- Suitable for toxic or hazardous gases

- Long service life

3. Applications:

- Specialty gas delivery

- High-pressure systems

- Toxic gas handling

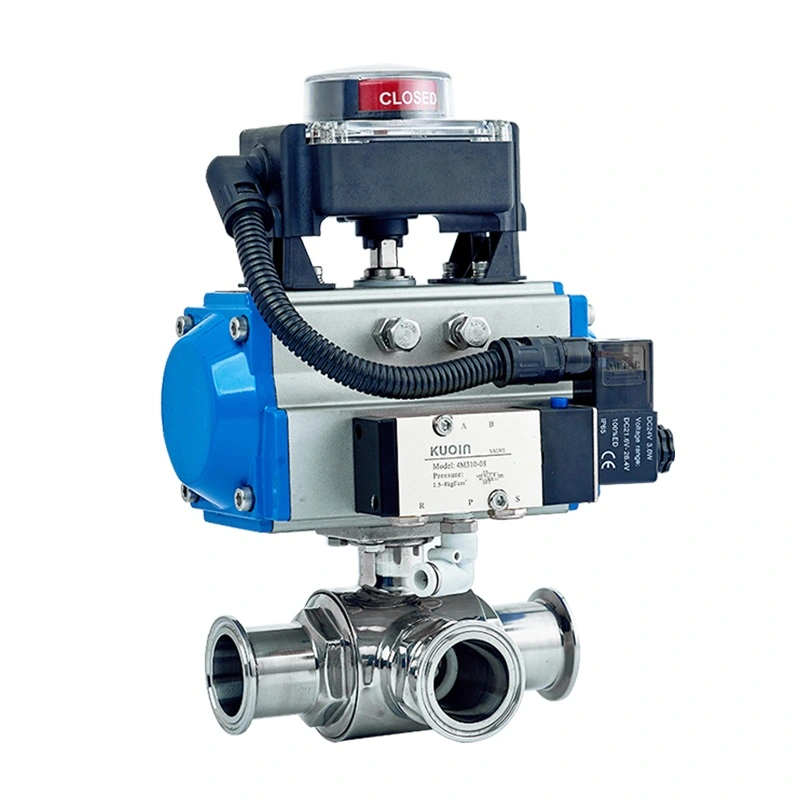

Ball Valves

1. Design: Uses a rotating ball with a bore to control flow.

2. Advantages:

- Quick operation

- Low pressure drop

- Bi-directional sealing

3. Applications:

- Main gas supply lines

- High-flow applications

- Systems requiring fast shutoff

Check Valves

1. Design: Allows flow in one direction only.

2. Advantages:

- Prevents backflow

- Low cracking pressure

- Clean design

3. Applications:

- Pump protection

- System isolation

- Preventing gas mixing

Performance Characteristics

Sanitary forged valves for high-purity gas systems must meet exacting performance standards across several key parameters.

Purity Maintenance

1. Particulate Control: Valves must not generate or release particles above specified limits (typically<5 particles="">0.1µm per cubic foot).

2. Outgassing: Minimal release of volatile compounds that could contaminate the gas stream.

3. Leak Integrity: Extremely low leakage rates (often<1×10⁻⁹ atm·cc/sec helium).

4. Surface Chemistry: Non-reactive surfaces that won't adsorb or react with process gases.

Flow Characteristics

1. Pressure Drop: Minimized to reduce energy consumption and maintain system pressure.

2. Flow Capacity: Adequate Cv values for the intended flow rates.

3. Flow Profile: Smooth, laminar flow to prevent turbulence-induced contamination.

Operational Parameters

1. Temperature Range: Typically -20°C to +150°C for standard designs, with special versions for extreme temperatures.

2. Pressure Rating: Common ratings from 150 psi to 6000 psi depending on application.

3. Cycle Life: Often rated for 100,000+ cycles in high-purity designs.

4. Response Time: Critical for some applications, especially in automated systems.

Industry Standards and Certifications

Sanitary forged valves for high-purity applications must comply with numerous industry standards and certifications.

Purity Standards

1. SEMI Standards: SEMI F19 for high-purity gas delivery components.

2. ASME BPE: Bioprocessing Equipment standards for surface finishes and design.

3. ISO 8573: Compressed air purity classes.

4. USP<797>: Pharmaceutical compounding standards.

Material Standards

1. ASTM A270: Standard specification for seamless and welded stainless steel sanitary tubing.

2. ASTM A182: Standard for forged or rolled alloy and stainless steel pipe flanges.

3. ASTM F138: Specification for wrought 18Cr-14Ni-2.5Mo stainless steel bar.

Performance Standards

1. ISO 15848: Fugitive emissions testing for valves.

2. ANSI/FCI 70-2: Seat leakage classifications.

3. MSS SP-61: Pressure testing of steel valves.

4. CE Marking: Compliance with European safety, health, and environmental requirements.

Installation Considerations

Proper installation is critical to maintaining system purity and valve performance.

Pre-Installation Preparation

1. Inspection: Verify valve cleanliness and integrity before installation.

2. Purging: Ensure all connecting piping is properly purged and cleaned.

3. Handling: Use clean gloves and tools to prevent contamination.

Installation Techniques

1. Orientation: Install in correct flow direction (marked on valve body).

2. Alignment: Avoid pipe strain by ensuring proper alignment before tightening.

3. Torque Control: Use calibrated torque wrenches for proper gasket compression.

4. Welding: For welded connections, use high-purity procedures with proper purge gas.

Post-Installation Verification

1. Leak Testing: Perform helium leak testing on all connections.

2. Particle Testing: Verify system cleanliness after installation.

3. Functional Testing: Confirm proper operation through full range of motion.

Maintenance Best Practices

Regular maintenance ensures long-term performance and purity in high-purity gas systems.

Routine Maintenance

1. Visual Inspections: Check for external leaks, corrosion, or damage.

2. Operational Checks: Verify smooth operation and proper sealing.

3. Cleaning: Periodic cleaning with approved solvents if needed.

Preventive Maintenance

1. Seal Replacement: Proactive replacement of elastomeric seals before failure.

2. Lubrication: Use of high-purity lubricants where required.

3. Calibration: For automated valves, periodic calibration of actuators.

Troubleshooting Common Issues

1. Leakage: Identify source (stem, body seal, or connection) and replace affected components.

2. Sticking: May indicate contamination or seal degradation requiring cleaning or replacement.

3. Increased Particulates: Could signal internal wear or seal deterioration.

4. Flow Reduction: May indicate partial blockage or valve malfunction.

Emerging Trends and Future Developments

The field of sanitary forged valves for high-purity applications continues to evolve with technological advancements.

Material Innovations

1. Advanced Alloys: Development of new corrosion-resistant materials for aggressive gases.

2. Ceramic Components: Increasing use of high-purity ceramics for wear resistance.

3. Nanostructured Surfaces: Novel surface treatments to further reduce adsorption and outgassing.

Design Improvements

1. Smart Valves: Integration of sensors for real-time monitoring of valve condition.

2. Compact Designs: Space-saving configurations for high-density installations.

3. Modular Systems: Easier integration and maintenance through modular construction.

Manufacturing Advancements

1. Additive Manufacturing: Potential for complex internal geometries with reduced part counts.

2. Automated Cleaning: More consistent and thorough cleaning processes.

3. Advanced Testing: Improved non-destructive testing methods for quality assurance.

Conclusion

Sanitary forged valves represent a critical component in high-purity gas systems where contamination control is essential. Their forged construction provides unmatched durability and reliability while specialized designs and materials ensure they meet stringent purity requirements. From semiconductor fabrication to pharmaceutical production, these valves play a vital role in maintaining the integrity of sensitive processes.

Understanding the design principles, material considerations, and proper installation techniques for sanitary forged valves enables engineers and technicians to select and maintain the optimal valves for their specific applications. As technology advances, these components will continue to evolve, offering even greater performance and reliability for the most demanding high-purity systems.

By adhering to industry standards, implementing proper maintenance procedures, and staying informed about emerging technologies, users can maximize the performance and longevity of sanitary forged valves in their high-purity gas systems. The investment in high-quality valves and proper system design pays dividends in reduced downtime, improved product quality, and lower total cost of ownership over the system lifecycle.
