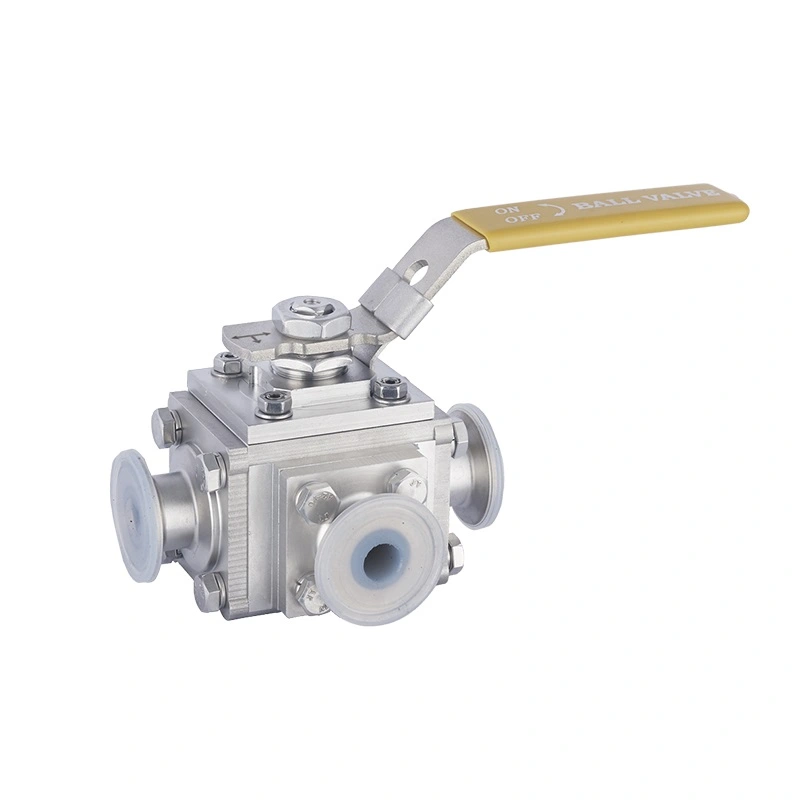

How to Validate a Welded Sanitary Valve Installation

Introduction

Welded sanitary valves are critical components in industries such as pharmaceuticals, biotechnology, food and beverage, and cosmetics, where hygiene and contamination control are paramount. Proper installation and validation of these valves ensure system integrity, product safety, and regulatory compliance.

Validation of a welded sanitary valve installation involves verifying that the valve is correctly installed, functions as intended, and meets industry standards. This process includes inspection, testing, and documentation to confirm compliance with Good Manufacturing Practices (GMP), ASME BPE (Bioprocessing Equipment), and other relevant standards.

This guide outlines the key steps for validating a welded sanitary valve installation, covering pre-installation checks, welding procedures, post-weld inspections, functional testing, and documentation.

---

1. Pre-Installation Validation

Before welding a sanitary valve, several checks must be performed to ensure the components and installation environment meet requirements.

1.1 Material Verification

- Confirm that the valve and piping materials (typically 316L stainless steel) comply with specifications.

- Check material certificates (Mill Test Reports) for chemical composition, mechanical properties, and surface finish (Ra ≤ 0.8 µm for sanitary applications).

- Ensure all components are clean and free from defects such as scratches or contamination.

1.2 Valve and Piping Inspection

- Verify that the valve type (butterfly, diaphragm, ball, etc.) is appropriate for the application.

- Inspect the valve for proper markings (material grade, pressure rating, and manufacturer details).

- Ensure the piping system is properly aligned to prevent stress on the valve after welding.

1.3 Weld Procedure Qualification

- Confirm that the welding procedure specification (WPS) is qualified per ASME BPE or other applicable standards.

- Ensure welders are certified for orbital or manual TIG (Tungsten Inert Gas) welding.

- Verify that purge gas (argon or nitrogen) is available for back purging to prevent oxidation.

---

2. Welding Process Validation

The welding process must be carefully controlled to maintain sanitary conditions and prevent defects.

2.1 Weld Preparation

- Clean the weld joint using a lint-free cloth and an appropriate solvent (e.g., isopropyl alcohol).

- Ensure proper fit-up with minimal gap (≤ 0.5 mm) to achieve full penetration.

- Use alignment clamps to maintain concentricity.

2.2 Welding Execution

- Follow the WPS for parameters such as amperage, travel speed, and gas flow rate.

- Maintain a consistent purge gas flow (typically 10-20 CFH) to prevent discoloration.

- Perform autogenous (no filler) or filler-added welding as required, using 316L filler wire if needed.

2.3 Weld Quality Checks

- Visually inspect the weld for defects (cracks, porosity, undercuts, or lack of fusion).

- Ensure the weld bead is smooth and continuous with no discoloration (straw to silver color is acceptable; blue or black indicates oxidation).

- Measure the weld profile to confirm full penetration and proper reinforcement.

---

3. Post-Weld Inspection and Cleaning

After welding, the valve and piping must be inspected and cleaned to ensure sanitary conditions.

3.1 Visual Inspection

- Check for weld defects using magnification (10x loupe) if necessary.

- Verify that the internal weld surface is smooth and free from pits or crevices.

3.2 Passivation (If Required)

- Passivate the welded area using nitric or citric acid to restore corrosion resistance.

- Rinse thoroughly with purified water (WFI or DI water) to remove residual chemicals.

3.3 Surface Finish Verification

- Use a profilometer to measure surface roughness (Ra ≤ 0.8 µm).

- Conduct a borescope inspection if access is limited.

---

4. Functional Testing

Functional testing ensures the valve operates correctly within the system.

4.1 Pressure Testing

- Perform a hydrostatic or pneumatic pressure test at 1.5x the working pressure.

- Hold for at least 10 minutes and check for leaks.

4.2 Valve Operation Test

- Cycle the valve multiple times to verify smooth operation.

- Check for proper sealing (bubble-tight for shutoff valves).

- Verify actuator response (if automated).

4.3 Cleanability Test (If Required)

- Perform a clean-in-place (CIP) or steam-in-place (SIP) cycle.

- Inspect for residue or bacterial growth post-cleaning.

---

5. Documentation and Compliance

Proper documentation is essential for regulatory compliance.

5.1 Record Keeping

- Document weld logs, inspection reports, and test results.

- Include material certifications, WPS, and welder qualifications.

5.2 Validation Report

- Summarize all validation steps, deviations (if any), and corrective actions.

- Ensure compliance with FDA, EU GMP, or other regulatory requirements.

5.3 Final Sign-Off

- Obtain approval from quality assurance (QA) and engineering teams.

- Archive records for future audits.

---

Conclusion

Validating a welded sanitary valve installation is a systematic process that ensures product safety, system reliability, and regulatory compliance. By following pre-installation checks, controlled welding procedures, post-weld inspections, functional testing, and thorough documentation, manufacturers can maintain high hygiene standards and prevent contamination risks.

Adherence to industry standards such as ASME BPE and GMP ensures that the installation meets the stringent requirements of sanitary applications. Proper validation not only safeguards product quality but also minimizes downtime and operational risks in critical industries.
