How to Select a Sanitary Lined Valve for Aggressive Chemicals

Introduction

Selecting the right sanitary lined valve for handling aggressive chemicals is a critical decision that impacts process efficiency, product quality, and operational safety in industries such as pharmaceuticals, food processing, biotechnology, and chemical manufacturing. These valves must maintain strict hygienic standards while resisting corrosion, preventing contamination, and withstanding harsh operating conditions. This comprehensive guide explores the key considerations, valve types, lining materials, and selection criteria to help engineers and procurement specialists make informed decisions.

Understanding Sanitary Lined Valves

Sanitary lined valves are specialized flow control devices designed for applications requiring high purity and corrosion resistance. They feature a non-reactive lining material that isolates the valve's metallic components from the process media, providing several advantages:

- Corrosion resistance: Protects against aggressive chemicals

- Contamination prevention: Maintains product purity

- Smooth surfaces: Minimizes bacterial growth and facilitates cleaning

- Chemical compatibility: Suitable for diverse process media

These valves are essential in industries where even minute contamination or corrosion products can compromise product quality or safety.

Types of Sanitary Lined Valves

1. Diaphragm Valves

Diaphragm valves offer excellent contamination control with their smooth, crevice-free design. The flexible diaphragm isolates all wetted parts from the process fluid, making them ideal for sterile applications.

Advantages:

- No internal pockets or dead spaces

- Easy to clean and sterilize

- Excellent for slurries and viscous fluids

- Bubble-tight shut-off

Limitations:

- Limited pressure and temperature range

- Diaphragm may require frequent replacement

- Not suitable for high-pressure drops

2. Butterfly Valves

Sanitary lined butterfly valves provide a compact, economical solution for larger pipe diameters. The lined version features corrosion-resistant materials in all wetted parts.

Advantages:

- Low pressure drop

- Lightweight and compact

- Quick operation

- Cost-effective for large sizes

Limitations:

- Potential for product entrapment in certain designs

- Limited throttling capability

- Seal wear over time

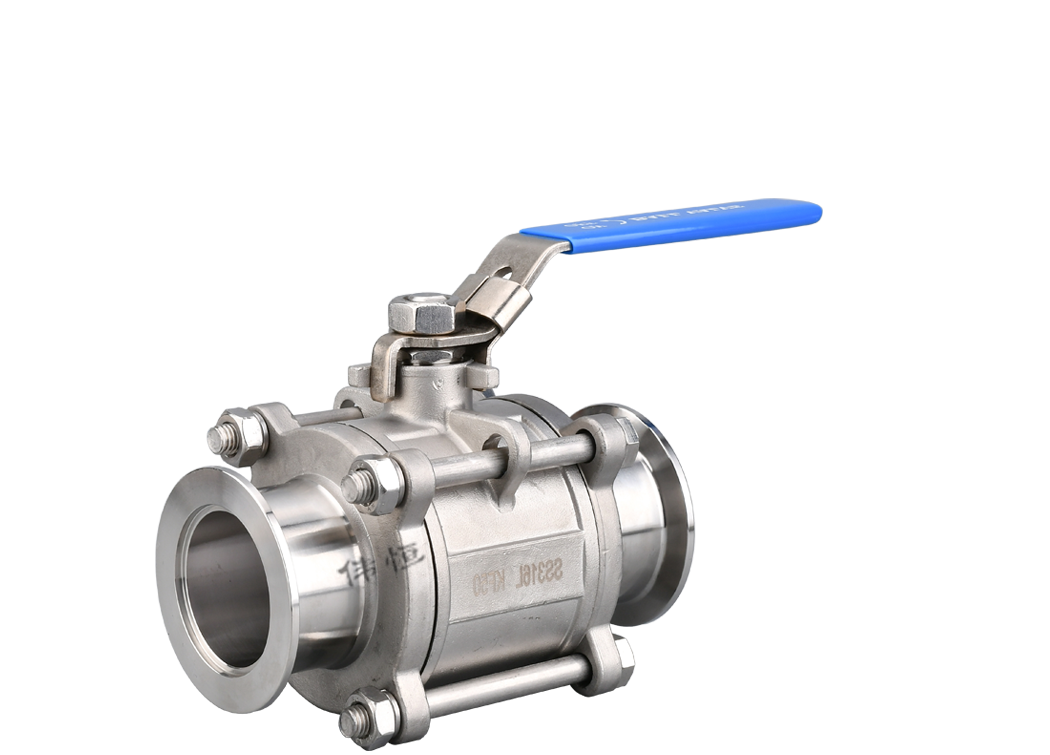

3. Ball Valves

Lined ball valves offer reliable quarter-turn operation with minimal pressure drop. The full-port design ensures smooth flow with minimal turbulence.

Advantages:

- Low maintenance

- Excellent shut-off capability

- Minimal pressure drop

- Suitable for high-purity applications

Limitations:

- Potential for product buildup in cavities

- Higher torque requirements for larger sizes

- Limited suitability for slurries

4. Plug Valves

Lined plug valves provide positive shut-off and are particularly suitable for viscous fluids or applications requiring frequent operation.

Advantages:

- Straight-through flow path

- Excellent for viscous media

- Precise flow control

- Durable construction

Limitations:

- Higher torque requirements

- Potential for galling in metal parts

- More complex maintenance

Key Selection Criteria

1. Chemical Compatibility

The most critical factor is ensuring the lining material is compatible with the process media across the entire operating temperature range. Consider:

- Chemical composition and concentration

- Temperature effects on material properties

- Presence of abrasives or particulates

- Potential for chemical reactions or degradation

2. Temperature Range

Evaluate both the continuous operating temperature and any peak temperatures during cleaning or sterilization cycles. The lining material must maintain its integrity across this entire range.

3. Pressure Requirements

Consider:

- Maximum working pressure

- Pressure fluctuations or surges

- Vacuum conditions

- Pressure drop limitations

4. Flow Characteristics

Assess:

- Required flow rate

- Acceptable pressure drop

- Flow regime (laminar/turbulent)

- Presence of solids or abrasives

5. Cleanability and Sterilization

For sanitary applications, evaluate:

- Surface finish requirements (typically Ra ≤ 0.8 μm)

- Ability to withstand CIP/SIP procedures

- Drainability and absence of dead legs

- Compliance with relevant sanitary standards

6. Mechanical Requirements

Consider:

- Actuation method (manual, pneumatic, electric)

- Cycle life expectations

- Maintenance accessibility

- Installation constraints

7. Regulatory Compliance

Ensure the valve meets:

- FDA requirements for food and pharmaceutical applications

- 3-A Sanitary Standards for dairy applications

- EHEDG guidelines for hygienic equipment design

- Other industry-specific regulations

Lining Material Options

1. Polytetrafluoroethylene (PTFE)

PTFE offers exceptional chemical resistance and non-stick properties.

Properties:

- Temperature range: -200°C to +260°C

- Excellent chemical resistance

- Low friction coefficient

- Non-contaminating

Applications:

- Strong acids and bases

- Organic solvents

- High-purity applications

2. Perfluoroalkoxy (PFA)

PFA combines PTFE's chemical resistance with improved mechanical properties.

Properties:

- Temperature range: -200°C to +260°C

- Excellent stress crack resistance

- Translucent for visual inspection

- Can be melt-processed

Applications:

- Ultrapure chemical handling

- Semiconductor industry

- Applications requiring transparency

3. Ethylene Chlorotrifluoroethylene (ECTFE)

ECTFE offers good mechanical strength and chemical resistance.

Properties:

- Temperature range: -76°C to +150°C

- Excellent impact strength

- Good resistance to oxidizing acids

- Flame retardant

Applications:

- Bleach solutions

- Chlorine handling

- Applications requiring mechanical strength

4. Polyvinylidene Fluoride (PVDF)

PVDF provides good chemical resistance with excellent mechanical properties.

Properties:

- Temperature range: -40°C to +150°C

- Excellent purity characteristics

- Good radiation resistance

- High mechanical strength

Applications:

- Ultrapure water systems

- Pharmaceutical water for injection

- Applications requiring structural integrity

5. Natural and Synthetic Rubbers

Various elastomers are used for specific chemical applications.

Common Types:

- EPDM: For mild acids and bases

- FKM (Viton®): For oils and fuels

- Butyl rubber: For strong oxidizing agents

Design Considerations

1. Surface Finish

Sanitary applications typically require:

- Internal surface roughness Ra ≤ 0.8 μm

- Electropolished surfaces for high-purity applications

- Crevice-free designs to prevent bacterial growth

2. Joint Design

Common sanitary connections include:

- Tri-clamp fittings

- Butt-weld ends

- Flanged connections with sanitary finishes

- DIN/SMS standard connections

3. Cleanability Features

Look for:

- Self-draining orientation

- Minimal internal cavities

- Smooth transitions

- Accessible surfaces for inspection

4. Material Verification

Ensure:

- Certificates of compliance for materials

- Traceability of wetted components

- Documentation of surface finishes

- Validation support for regulated industries

Installation and Maintenance Considerations

1. Proper Installation

- Follow manufacturer's torque specifications

- Ensure proper alignment

- Verify gasket integrity

- Confirm proper orientation for drainability

2. Routine Maintenance

- Establish regular inspection schedules

- Monitor for signs of wear or degradation

- Maintain proper lubrication (where applicable)

- Keep records of maintenance activities

3. Cleaning Procedures

- Follow validated CIP/SIP protocols

- Use compatible cleaning agents

- Verify cleaning effectiveness

- Document cleaning cycles

4. Spare Parts Management

- Maintain critical spare parts inventory

- Use OEM-approved replacement components

- Store spare parts properly

- Rotate spare parts to prevent aging

Common Pitfalls to Avoid

1. Overlooking temperature effects: Chemical resistance can change dramatically with temperature variations.

2. Ignoring mechanical stresses: Consider vibration, water hammer, and other mechanical factors that may affect liner integrity.

3. Underestimating cleaning requirements: Aggressive cleaning protocols may degrade some liners faster than the process chemicals.

4. Focusing only on initial cost: Consider total cost of ownership including maintenance, downtime, and replacement costs.

5. Neglecting industry standards: Compliance with relevant standards ensures proper design and material selection.

Emerging Trends

1. Advanced lining materials: Development of new fluoropolymers with enhanced properties.

2. Smart valve technology: Integration of sensors for condition monitoring and predictive maintenance.

3. Improved manufacturing techniques: Enhanced lining processes for better adhesion and durability.

4. Sustainable materials: Development of more environmentally friendly lining options.

5. Modular designs: Easier maintenance and component replacement features.

Conclusion

Selecting the appropriate sanitary lined valve for aggressive chemical service requires careful consideration of multiple factors including chemical compatibility, operating conditions, regulatory requirements, and total cost of ownership. By systematically evaluating each of these aspects and consulting with technical experts when needed, engineers can specify valves that will provide reliable, long-term service while maintaining the stringent hygiene and purity standards required in sensitive applications. Regular maintenance and proper installation further ensure optimal performance throughout the valve's service life. As material science and valve technology continue to advance, even more robust solutions are becoming available to meet the challenging demands of handling aggressive chemicals in sanitary applications.
