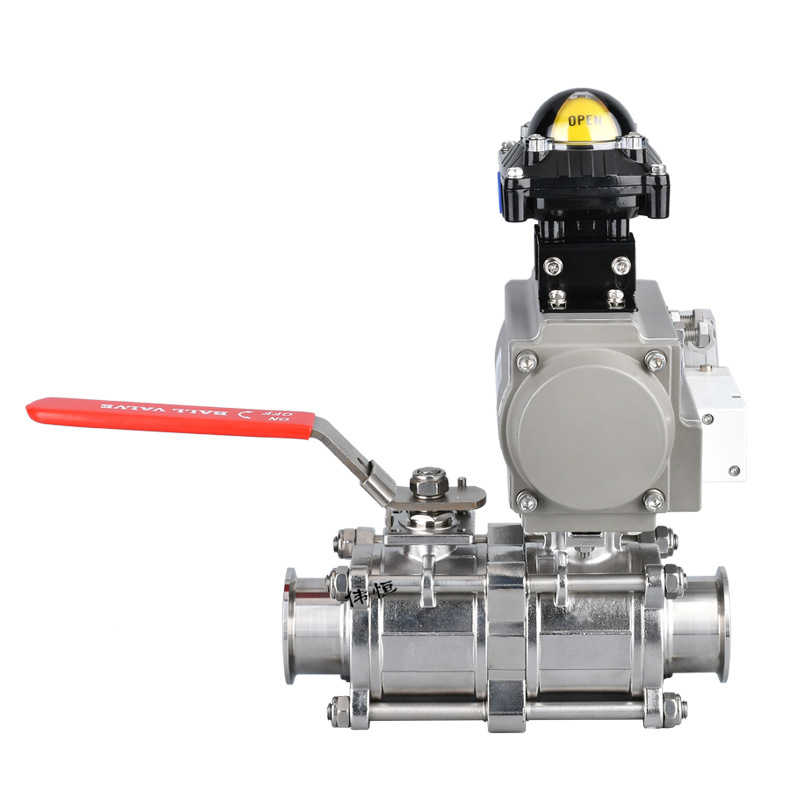

Common Welding Defects in Sanitary Valves and How to Avoid Them

Introduction

Welding is a critical process in the manufacturing of sanitary valves used in industries such as pharmaceuticals, food and beverage, biotechnology, and chemical processing. These valves must meet stringent hygienic standards to prevent contamination and ensure product purity. However, welding defects can compromise the integrity, functionality, and cleanliness of sanitary valves, leading to product recalls, system failures, and potential safety hazards.

This comprehensive guide examines the most common welding defects encountered in sanitary valve production, their root causes, and practical strategies to prevent them. By understanding these welding challenges and implementing proper quality control measures, manufacturers can produce high-quality sanitary valves that meet industry standards and customer expectations.

1. Porosity

Description

Porosity refers to the presence of small cavities or pores within the weld metal caused by trapped gas during solidification. In sanitary valve welding, porosity is particularly problematic as it creates potential sites for bacterial growth and product contamination.

Causes

- Contaminated base metal or filler material (oil, grease, moisture)

- Improper shielding gas coverage or flow rate

- Excessive moisture in the welding environment

- Incorrect welding parameters (too high current or travel speed)

- Poor surface preparation (oxide layers, paint residues)

Prevention Methods

1. Surface Preparation: Thoroughly clean all base metals and filler materials using appropriate solvents and mechanical methods to remove contaminants.

2. Shielding Gas Control: Maintain proper gas flow rates (typically 15-25 CFH for TIG welding) and ensure gas hoses and connections are leak-free.

3. Environmental Control: Weld in controlled environments with low humidity (below 60% RH is recommended).

4. Parameter Optimization: Use correct welding current and travel speed to allow proper gas escape before solidification.

5. Material Handling: Store welding materials in dry conditions and properly preheat when necessary.

2. Incomplete Penetration

Description

Incomplete penetration occurs when the weld metal fails to extend through the full thickness of the joint, leaving a void at the root. This defect significantly weakens the joint and creates crevices where product can accumulate in sanitary applications.

Causes

- Insufficient heat input (low current or high travel speed)

- Improper joint design (excessive root gap or face)

- Incorrect torch angle or electrode positioning

- Excessive filler metal addition

- Poor fit-up of components

Prevention Methods

1. Joint Design: Use proper joint configurations (typically square butt joints for thin-wall sanitary tubing) with appropriate root gaps (0.5-1.5mm).

2. Welding Parameters: Select adequate current settings and maintain consistent travel speed.

3. Technique: Maintain correct torch angles (10-15° push angle for TIG) and ensure proper electrode positioning.

4. Fit-up Control: Implement strict dimensional tolerances and use proper fixturing to maintain alignment.

5. Visual Inspection: Conduct frequent visual checks during welding to ensure complete penetration.

3. Lack of Fusion

Description

Lack of fusion happens when the weld metal fails to fuse completely with the base metal or previous weld pass. This creates weak points in the joint that can lead to leaks or structural failure in sanitary valves.

Causes

- Low heat input

- Improper welding technique (incorrect torch manipulation)

- Contamination at the joint interface

- Excessive travel speed

- Incorrect filler metal selection

Prevention Methods

1. Heat Input Control: Use sufficient current to achieve proper melting of base metals.

2. Technique Training: Ensure welders maintain proper arc length (1-3mm for TIG) and use appropriate weaving patterns.

3. Surface Preparation: Clean joint surfaces immediately before welding.

4. Travel Speed: Maintain moderate travel speeds to allow proper fusion.

5. Filler Metal Selection: Choose filler metals with appropriate fluidity and melting characteristics.

4. Cracking

Description

Cracks are linear discontinuities that can occur in the weld metal (solidification cracks) or heat-affected zone (HAZ cracks). They are particularly dangerous in sanitary applications as they can propagate and lead to catastrophic failure.

Types:

- Hot cracks (occur during solidification)

- Cold cracks (occur after cooling)

- Stress corrosion cracks (develop over time)

Causes

- High restraint conditions

- Improper filler metal selection

- Excessive heat input leading to large HAZ

- Rapid cooling rates

- Contamination (sulfur, phosphorus)

- Residual stresses from fabrication

Prevention Methods

1. Filler Metal Selection: Use low-impurity filler metals with appropriate alloy composition (e.g., ER316L for 316L stainless steel).

2. Heat Input Control: Optimize welding parameters to balance penetration and HAZ size.

3. Preheating/Post-Weld Heat Treatment: Apply when necessary to control cooling rates.

4. Joint Design: Minimize restraint through proper joint configuration.

5. Stress Relief: Implement proper sequencing of welds to distribute stresses.

5. Undercut

Description

Undercut is a groove melted into the base metal adjacent to the weld toe or root that is not filled by weld metal. In sanitary valves, undercut creates areas where product can accumulate and bacteria can grow.

Causes

- Excessive welding current

- Incorrect torch angle or arc length

- High travel speed

- Improper filler metal addition

- Poor joint preparation

Prevention Methods

1. Current Control: Reduce welding current to appropriate levels.

2. Technique Adjustment: Maintain proper torch angles and consistent arc length.

3. Travel Speed: Decrease travel speed to allow proper filler metal deposition.

4. Filler Metal Addition: Ensure adequate filler metal is added to fill the joint completely.

5. Joint Preparation: Bevel edges when necessary to facilitate proper filler metal flow.

6. Weld Discoloration (Heat Tint)

Description

Discoloration appears as blue, gold, or rainbow-colored oxides on the weld and surrounding HAZ. While not always a structural defect, it indicates excessive oxidation that can reduce corrosion resistance in sanitary applications.

Causes

- Excessive heat input

- Inadequate shielding gas coverage

- Slow cooling in oxidizing atmosphere

- Improper post-weld cleaning

Prevention Methods

1. Gas Purging: Use proper back purging techniques for interior surfaces (maintain oxygen levels below 0.1%).

2. Heat Input Control: Optimize welding parameters to minimize HAZ.

3. Trailing Shields: Employ trailing shields to extend protective atmosphere coverage.

4. Cooling Rate: Allow controlled cooling under inert atmosphere when possible.

5. Post-Weld Cleaning: Immediately clean welds using appropriate methods (pickling, electropolishing, or mechanical brushing).

7. Spatter

Description

Spatter consists of small droplets of molten metal expelled during welding that adhere to the base metal surface. In sanitary valves, spatter creates surface irregularities that can trap product and bacteria.

Causes

- Excessive current or voltage

- Contaminated base metal or filler wire

- Improper shielding gas composition

- Unstable arc conditions

- Moisture in the welding environment

Prevention Methods

1. Parameter Optimization: Adjust current and voltage to stable settings.

2. Surface Preparation: Ensure clean, dry surfaces before welding.

3. Gas Selection: Use appropriate shielding gas mixtures (typically argon or argon/helium for stainless steel).

4. Technique: Maintain steady arc length and smooth torch movement.

5. Anti-spatter Compounds: Apply approved compounds to adjacent areas when permitted.

8. Distortion

Description

Distortion refers to the unwanted deformation of components due to uneven heating and cooling during welding. In sanitary valves, distortion can affect sealing performance and cleanability.

Causes

- Uneven heat distribution

- Excessive heat input

- Improper welding sequence

- High restraint conditions

- Thin-wall sections

Prevention Methods

1. Welding Sequence: Implement balanced welding sequences to distribute heat evenly.

2. Fixture Use: Employ proper jigs and fixtures to restrain components during welding.

3. Heat Input Control: Use minimum necessary heat input to complete the weld.

4. Tack Welding: Apply sufficient tack welds at appropriate intervals.

5. Pre-setting: Offset components slightly opposite to expected distortion direction.

9. Concave or Convex Weld Profiles

Description

Improper weld contour (excessively concave or convex) can affect fluid flow characteristics and cleanability in sanitary valves.

Causes

- Incorrect filler metal addition (too much or too little)

- Improper welding technique

- Incorrect travel speed

- Improper joint preparation

Prevention Methods

1. Filler Control: Add appropriate amount of filler metal to achieve slightly convex profile.

2. Technique: Maintain consistent travel speed and torch manipulation.

3. Joint Design: Prepare joints with proper gap and bevel when needed.

4. Visual Standards: Provide welders with visual references of acceptable profiles.

5. Procedure Qualification: Qualify welding procedures to produce optimal profiles.

10. Inclusions

Description

Inclusions are non-metallic solid materials trapped in the weld metal or between weld passes. They create weak points and potential corrosion sites in sanitary valves.

Types:

- Tungsten inclusions (in TIG welding)

- Slag inclusions

- Oxide inclusions

Causes

- Contaminated base metal or filler wire

- Improper cleaning between passes

- Tungsten electrode touching the weld pool

- Improper shielding gas coverage

Prevention Methods

1. Interpass Cleaning: Thoroughly clean between weld passes using stainless steel brushes.

2. Electrode Control: Maintain proper arc length to prevent tungsten contamination.

3. Material Handling: Protect filler metals from contamination during storage and use.

4. Shielding Gas: Ensure adequate gas coverage throughout welding.

5. Visual Inspection: Examine each pass before proceeding with next.

Quality Assurance and Inspection Methods

To ensure welding quality in sanitary valve production, implement these inspection techniques:

1. Visual Inspection (VT): First line of defense using magnification and proper lighting.

2. Dye Penetrant Testing (PT): Detects surface-breaking defects.

3. Radiographic Testing (RT): Identifies internal defects like porosity and inclusions.

4. Ultrasonic Testing (UT): Detects subsurface defects and measures wall thickness.

5. Ferrite Content Measurement: Ensures proper phase balance in austenitic stainless steels.

6. Leak Testing: Verifies integrity of pressure-containing welds.

7. Surface Roughness Measurement: Ensures proper finish for cleanability.

Best Practices for Sanitary Valve Welding

1. Implement Welding Procedure Specifications (WPS): Develop and qualify detailed procedures for each joint type.

2. Welder Qualification: Certify welders according to ASME Section IX or other relevant standards.

3. Material Traceability: Maintain complete records of all materials used.

4. Cleanroom Practices: Weld in controlled environments when possible.

5. Documentation: Keep comprehensive records of all welding parameters and inspections.

6. Continuous Training: Regularly update welders on techniques and quality requirements.

7. Preventive Maintenance: Regularly service welding equipment to ensure consistent performance.

8. Process Validation: Validate welding processes for critical applications.

Conclusion

Welding defects in sanitary valves can have serious consequences for product quality, safety, and regulatory compliance. By understanding the common defects, their causes, and prevention methods, manufacturers can significantly improve weld quality and reliability. Implementing rigorous quality control measures, proper training programs, and standardized procedures will help produce sanitary valves that meet the demanding requirements of hygienic industries.

Remember that prevention is always more cost-effective than rework or failure in service. Investing in proper welding techniques, equipment, and quality systems will pay dividends in product performance and customer satisfaction in the highly regulated sanitary valve market.
