A Glossary of Sanitary Welding and Valve Terms

Introduction

Sanitary welding and valve systems are critical in industries where hygiene, cleanliness, and contamination control are paramount, such as food and beverage, pharmaceuticals, biotechnology, and cosmetics. Proper terminology ensures clear communication among engineers, technicians, and quality control personnel. This glossary provides definitions for key terms related to sanitary welding and valves, helping professionals understand industry standards and best practices.

---

Sanitary Welding Terms

1. Automatic Orbital Welding

A welding process where a machine-controlled electrode rotates around a stationary workpiece, ensuring consistent, high-quality welds with minimal human intervention. Commonly used in sanitary applications for repeatability and reduced contamination risk.

2. Back Purging

A technique where an inert gas (typically argon) is introduced on the backside of a weld to prevent oxidation and contamination. Essential for maintaining weld integrity in sanitary piping systems.

3. Bevel Angle

The angle formed between the prepared edge of a pipe or fitting and a perpendicular line to the surface. Proper beveling ensures full penetration in butt welds.

4. Butt Weld

A welding technique where two pieces of metal are joined end-to-end. In sanitary applications, butt welds are ground and polished to a smooth finish to prevent bacterial harborage.

5. Cladding

A process where a corrosion-resistant material (e.g., stainless steel) is bonded to a base metal to enhance durability and hygiene.

6. Contamination (Weld Defect)

The presence of foreign materials (e.g., oxides, slag, or dirt) in a weld, which can compromise hygiene and structural integrity.

7. Electropolishing

An electrochemical process that removes surface material to improve corrosion resistance and cleanability. Often applied to sanitary welds to achieve a smooth, passive surface.

8. Ferrite Number (FN)

A measurement of ferrite content in austenitic stainless steel welds, affecting corrosion resistance and mechanical properties.

9. Full Penetration Weld

A weld where the fusion extends completely through the joint thickness, ensuring maximum strength and hygiene in sanitary systems.

10. Gas Tungsten Arc Welding (GTAW/TIG)

A precise welding method using a non-consumable tungsten electrode and inert gas shielding. Preferred for sanitary applications due to clean, high-quality welds.

11. Heat-Affected Zone (HAZ)

The area of base metal altered by welding heat, which may affect corrosion resistance. Proper welding techniques minimize HAZ impact.

12. Hot Pass

A secondary welding pass that ensures full penetration and removes impurities from the root pass.

13. Inert Gas Shielding

The use of argon or helium to protect the weld pool from atmospheric contamination, critical for sanitary welding.

14. Passivation

A chemical treatment (typically nitric or citric acid) that removes free iron from stainless steel surfaces, enhancing corrosion resistance.

15. Root Pass

The first weld pass in a multi-pass weld, establishing the foundation for subsequent passes.

16. Smooth Finish (Ra Value)

A surface roughness measurement (in micrometers) indicating weld smoothness. Sanitary welds typically require an Ra ≤ 0.8 µm.

17. Spatter

Unwanted metal droplets expelled during welding, which can create contamination risks. Minimized in sanitary welding.

18. Tungsten Inclusion

A weld defect where tungsten particles from the electrode contaminate the weld, requiring removal in sanitary applications.

19. Weld Purge Monitor

A device that measures oxygen levels in the welding environment to ensure proper inert gas shielding.

20. Weld Seam

The line where two welded pieces meet. In sanitary systems, seams must be smooth and free of crevices.

---

Sanitary Valve Terms

1. Aseptic Valve

A valve designed to maintain sterility, often used in pharmaceutical and biotech applications.

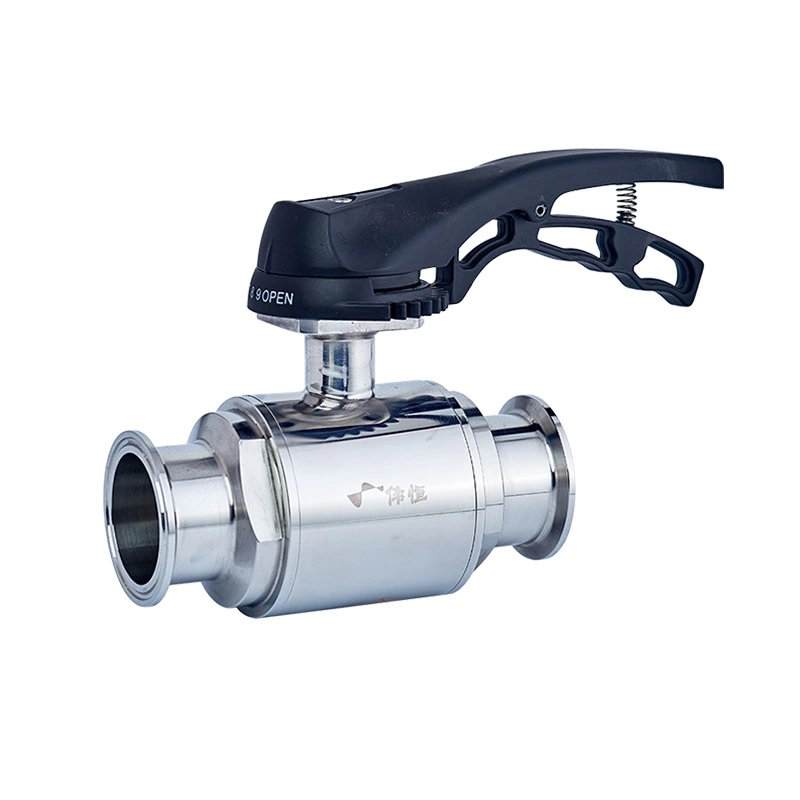

2. Ball Valve

A quarter-turn valve with a rotating ball to control flow. Sanitary versions have polished surfaces and minimal dead space.

3. Butterfly Valve

A valve with a rotating disc for flow control. Sanitary versions use elastomeric seals and polished metal surfaces.

4. Clean-in-Place (CIP)

A method of cleaning valves and piping without disassembly, using high-velocity cleaning solutions.

5. Dead Leg

An area in piping or valves where fluid can stagnate, increasing contamination risk. Minimized in sanitary designs.

6. Diaphragm Valve

A valve where a flexible diaphragm regulates flow, preventing product contact with internal mechanisms. Common in sterile processes.

7. Double Seat Valve

A valve with two sealing surfaces, reducing leakage risk. Used in high-hygiene applications.

8. EPDM (Ethylene Propylene Diene Monomer)

A common elastomer for valve seals, resistant to steam and chemicals.

9. Face-to-Face Dimension

The length of a valve between connection points, standardized for easy installation.

10. Flush Bottom Valve

A tank valve designed to drain completely, eliminating residual product.

11. Hygienic Clamp Connection

A tri-clamp or DIN-style fitting allowing quick disassembly for cleaning.

12. Jacketed Valve

A valve with an external heating/cooling jacket to maintain product temperature.

13. Leakage Class

A rating (e.g., ANSI/FCI 70-2) defining permissible valve leakage.

14. Material Certificate

Documentation verifying a valve’s material composition and compliance with standards.

15. Non-Return Valve (Check Valve)

A valve allowing flow in one direction only, preventing backflow contamination.

16. PTFE (Polytetrafluoroethylene)

A chemically inert seal material used in sanitary valves.

17. Raised Face Flange

A flange with a raised sealing surface, often used with gaskets in sanitary systems.

18. Sanitary Gasket

A FDA-compliant sealing ring (e.g., silicone or EPDM) for hygienic connections.

19. Steam Sterilizable

A valve capable of withstanding steam cleaning (SIP - Sterilize-in-Place).

20. Zero Dead Space (ZDS)

A valve design eliminating areas where product can accumulate, ensuring full drainability.

---

Conclusion

Understanding sanitary welding and valve terminology is essential for maintaining hygiene, compliance, and operational efficiency in regulated industries. This glossary provides a foundation for professionals working with high-purity fluid systems, ensuring clarity in design, installation, and maintenance practices.

By adhering to industry standards and best practices, organizations can achieve contamination-free processes, product integrity, and regulatory compliance.
