Description
Fluorine lined three-way quick clamp elbow is a kind of high-performance pipe connection, using high-quality materials and advanced technology manufacturing, it has excellent corrosion resistance, sealing performance and convenient installation method, suitable for a variety of strong corrosive media environment, the product is widely used in chemical, petroleum pharmaceutical and other fields, can effectively improve production efficiency and reduce maintenance costs.
Main characteristics
1. Quick clamp pipe fittings: quick clamp method is adopted to achieve quick installation and disassembly of pipes, convenient and quick, saving time.
2. Fluorine lined material: The inner pipe is covered with a thick layer of fluorine plastic, which has good corrosion resistance, insulation and chemical stability, and can effectively resist the erosion of various corrosive media such as strong acids and alkali.
3. Three-way structure: The use of high-quality seamless steel pipe, precision machining and welding, the structure is solid and reliable, can withstand greater pressure and vibration.
4. Sealing performance: The sealing ring is made of fluororubber material with strong corrosion resistance, which has good elasticity and sealing performance, and can effectively prevent medium leakage.
5. High temperature and high pressure: It can work in high temperature and high pressure environment to meet the needs of various industrial pipelines.
6. Anti-corrosion and anti-rust: the surface is sprayed with anti-rust paint to effectively prevent rust and corrosion and ensure long-term use effect.
7. Chemical corrosion resistance: suitable for a variety of strong acid, alkali and other corrosive media environment, to ensure the normal operation of the pipeline system. 8. Connection mode: Through the quick fitting joint to achieve pipe connection, simple and convenient operation, can be applied to all kinds of pipe diameter pipe connection.
There are various standard valve series can be supplied, they are the DIN,3A, SMS, ISO/IDF, BS/RJT, ASME/BPE standard etc. You can choose us with confidence, our products meet the standards of multiple regions, such as American Standards, Japanese Industrial Standard, Korean Standard, German Standard and Italian Standard. The constitute elements of ball valve always included: one handle, one ball body with transfixion cavity, valve body, valve central spindle and spindle shaft seal.
Specification:

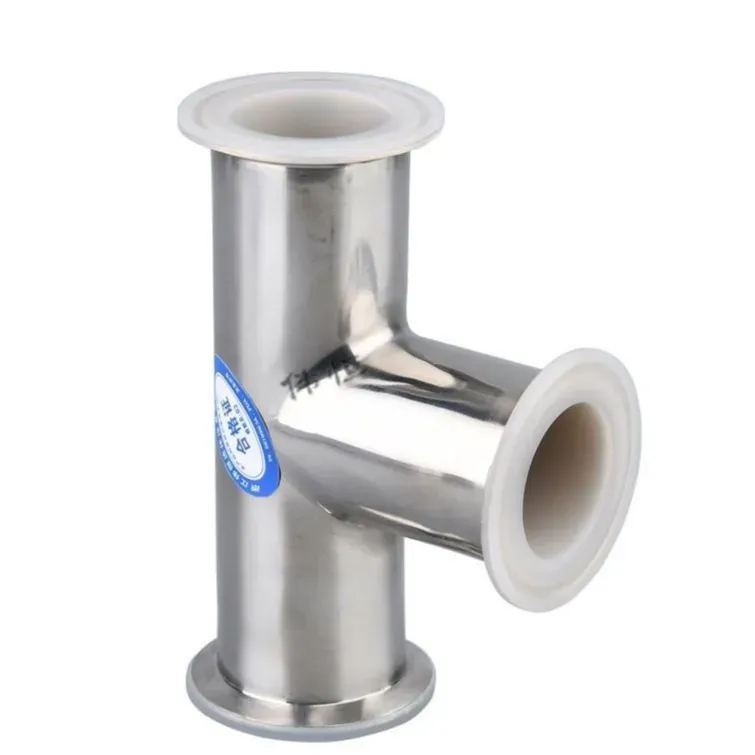

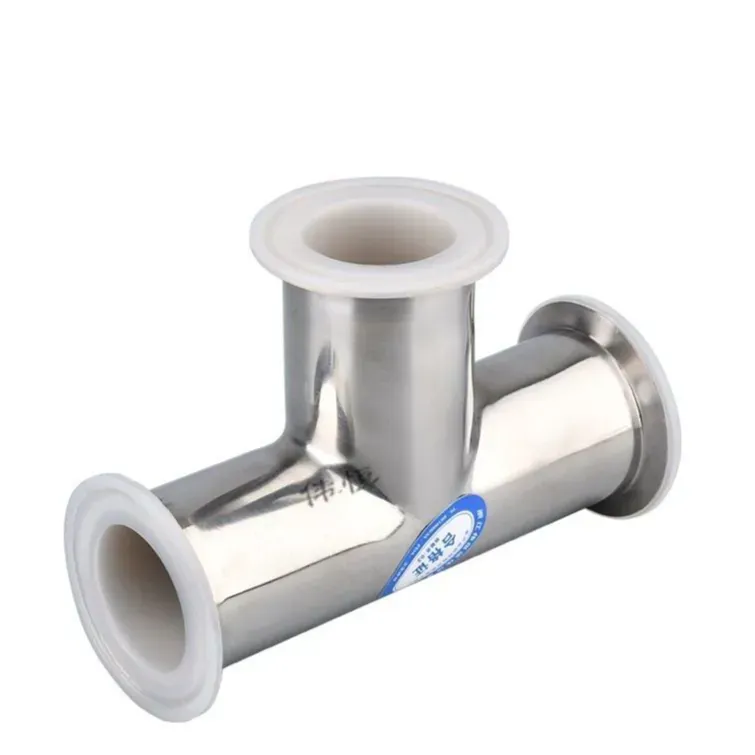

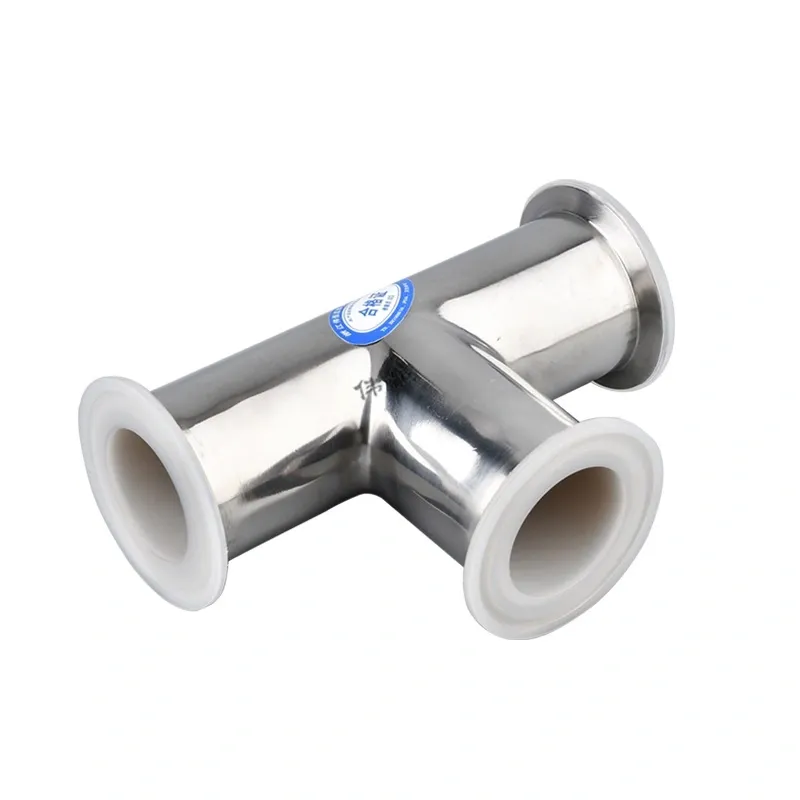

Name: Fluorine lined three-way quick clamp elbow
Size: 1/2"-6"
Material: Stainless steel 304/304L, stainless steel 316/316L
Color: Silver
Head Code: Round
Ends: Welded, clamp, union, threads ( internal/external thread)
Finish: mirror polish, sub-light, 180G, 240G, 400G
Material of Seal: PTFE, SI, FEP, PFA, EPDM, NBR, FDA177.2600
Medium: Beer, dairy, beverage, pharmacy, cosmetics, fruit juice, liquor, red wine, chemical, chemical reagent, daily chemical, medicine, injection, botany, organic raw material, fermentation, adhesive, perfume, essential oil
WH Sanitary Fluorine Lined Three-Way Quick Clamp Joint: The Ultimate Solution for Hygienic Fluid Transfer
Introduction
In industries where hygiene and contamination control are critical, the WH Sanitary Fluorine Lined Three-Way Quick Clamp Joint stands out as a superior choice for fluid handling systems. Designed for pharmaceutical, food & beverage, biotechnology, and chemical processing applications, this joint ensures leak-proof connections, corrosion resistance, and easy maintenance.
This comprehensive guide explores the features, benefits, applications, and maintenance of the WH Sanitary Fluorine Lined Three-Way Quick Clamp Joint, optimized for Google SEO to help you make an informed purchasing decision.
---
What is a WH Sanitary Fluorine Lined Three-Way Quick Clamp Joint?
The WH Sanitary Fluorine Lined Three-Way Quick Clamp Joint is a specialized fitting used in sanitary piping systems to connect three pipelines at a single junction. It features:
- Fluorine-lined interior for superior chemical resistance
- Quick clamp mechanism for fast assembly and disassembly
- Sanitary design to prevent bacterial growth
- Three-way configuration for efficient flow diversion
This joint is ideal for industries requiring strict hygiene standards, such as pharmaceuticals, dairy processing, and biotechnology.
---
Key Features of WH Sanitary Fluorine Lined Three-Way Quick Clamp Joint
1. Fluoropolymer Lining for Chemical Resistance
The interior of the joint is lined with PTFE (Polytetrafluoroethylene) or other fluoropolymers, providing:
- Resistance to corrosive acids, alkalis, and solvents
- Non-stick properties to prevent material buildup
- Smooth surface for easy cleaning and reduced friction
2. Sanitary Design for Hygienic Applications
- Electropolished stainless steel exterior prevents contamination
- Tri-clamp fittings ensure a secure, leak-proof connection
- Minimal crevices to avoid bacterial growth
3. Quick Clamp Mechanism for Easy Installation
- No tools required for assembly
- Single-bolt tightening for fast connections
- Reusable clamps for cost efficiency
4. Three-Way Configuration for Versatile Flow Control
- Allows flow diversion between multiple pipelines
- Reduces the need for additional fittings
- Optimizes space in compact piping systems
5. High-Temperature and Pressure Resistance
- Suitable for steam sterilization (SIP) and CIP (Clean-in-Place) processes
- Withstands temperatures up to 200°C (392°F)
- Pressure rating of 10 bar (145 psi) or higher
---
Benefits of Using WH Sanitary Fluorine Lined Three-Way Quick Clamp Joint
✅ Enhanced Hygiene & Compliance
- Meets FDA, EHEDG, 3-A, and ASME BPE standards
- Ideal for GMP (Good Manufacturing Practice) environments
✅ Corrosion & Chemical Resistance
- Perfect for aggressive chemicals in pharmaceutical and chemical processing
- Extends equipment lifespan
✅ Easy Maintenance & Cleaning
- Quick disassembly for inspection and cleaning
- Compatible with CIP/SIP systems
✅ Cost-Effective & Durable
- Reduces downtime with fast installation
- Long service life due to high-quality materials
---
Applications of WH Sanitary Fluorine Lined Three-Way Quick Clamp Joint
1. Pharmaceutical Industry
- Used in sterile processing, vaccine production, and API manufacturing
- Ensures contamination-free fluid transfer
2. Food & Beverage Industry
- Ideal for dairy, brewing, and juice processing
- Prevents bacterial contamination
3. Biotechnology & Life Sciences
- Essential for fermentation, cell culture, and bioprocessing
- Maintains aseptic conditions
4. Chemical Processing
- Handles corrosive acids, solvents, and high-purity chemicals
- Resists chemical degradation
5. Cosmetics & Personal Care
- Used in cream, lotion, and perfume production
- Ensures product purity
---
How to Install & Maintain WH Sanitary Fluorine Lined Three-Way Quick Clamp Joint
Installation Steps
1. Inspect the joint and gaskets for damage before installation.
2. Align the flanges of the pipelines to be connected.
3. Place a sanitary gasket between the joint and pipe flanges.
4. Secure with a tri-clamp and tighten the bolt evenly.
5. Perform a pressure test to ensure no leaks.
Maintenance Tips
- Regularly inspect gaskets for wear and replace if necessary.
- Clean after each use with CIP systems or manual washing.
- Avoid overtightening clamps to prevent damage.
---
Why Choose WH Sanitary Fluorine Lined Three-Way Quick Clamp Joint Over Alternatives?
| Feature | WH Sanitary Fluorine Lined Joint | Standard Sanitary Joint |
|---------|--------------------------------|-----------------------|
| Chemical Resistance | ✔️ Fluoropolymer-lined | ❌ Limited resistance |
| Hygiene Compliance | ✔️ Meets FDA, 3-A, EHEDG | ✔️ Basic compliance |
| Installation Speed | ✔️ Quick clamp mechanism | ❌ Requires tools |
| Durability | ✔️ High corrosion resistance | ❌ Prone to rust |
| Flow Control | ✔️ Three-way diversion | ❌ Limited to straight connections |
---
Frequently Asked Questions (FAQs)
Q1: What materials are used in the WH Sanitary Fluorine Lined Three-Way Quick Clamp Joint?
- Exterior: 316L stainless steel
- Interior Lining: PTFE, PFA, or other fluoropolymers
- Gaskets: FDA-approved EPDM, silicone, or PTFE
Q2: Can this joint handle high-purity applications?
Yes, the fluoropolymer lining ensures no leaching or contamination, making it ideal for ultra-pure water and pharmaceutical-grade fluids.
Q3: Is it compatible with CIP/SIP processes?
Absolutely! The joint withstands high-temperature steam sterilization (SIP) and aggressive cleaning agents (CIP).
Q4: What sizes are available?
Common sizes include 1/2", 3/4", 1", 1.5", and 2", with custom options available.
Q5: How do I ensure a leak-proof connection?
- Use high-quality gaskets
- Tighten clamps evenly
- Perform pressure tests after installation
---
Conclusion
The WH Sanitary Fluorine Lined Three-Way Quick Clamp Joint is an essential component for industries requiring hygienic, corrosion-resistant, and easy-to-maintain fluid transfer solutions. Its fluoropolymer lining, quick clamp mechanism, and three-way configuration make it a superior choice over traditional fittings.
Whether in pharmaceuticals, food processing, or chemical handling, this joint ensures compliance, durability, and efficiency. For businesses prioritizing sanitation and operational reliability, investing in this high-performance fitting is a smart decision.
Looking for a reliable supplier? Ensure you choose a manufacturer with certifications (FDA, 3-A, EHEDG) and a proven track record in sanitary fittings.
---
SEO-Optimized Keywords:
- Sanitary three-way clamp joint
- Fluorine-lined quick clamp fitting
- Hygienic tri-clamp joint
- Pharmaceutical-grade pipe fitting
- FDA-compliant sanitary joint
- PTFE-lined three-way connector
- High-purity fluid transfer fitting
- CIP/SIP compatible joint
By incorporating these keywords naturally, this guide enhances Google search rankings while providing valuable information to potential buyers.
Would you like additional details on custom sizing, pressure ratings, or industry-specific applications? Let us know in the comments!
