WH Sanitary Stainless Steel Pneumatic Fluorine Lined Diaphragm Valve: The Ultimate Guide

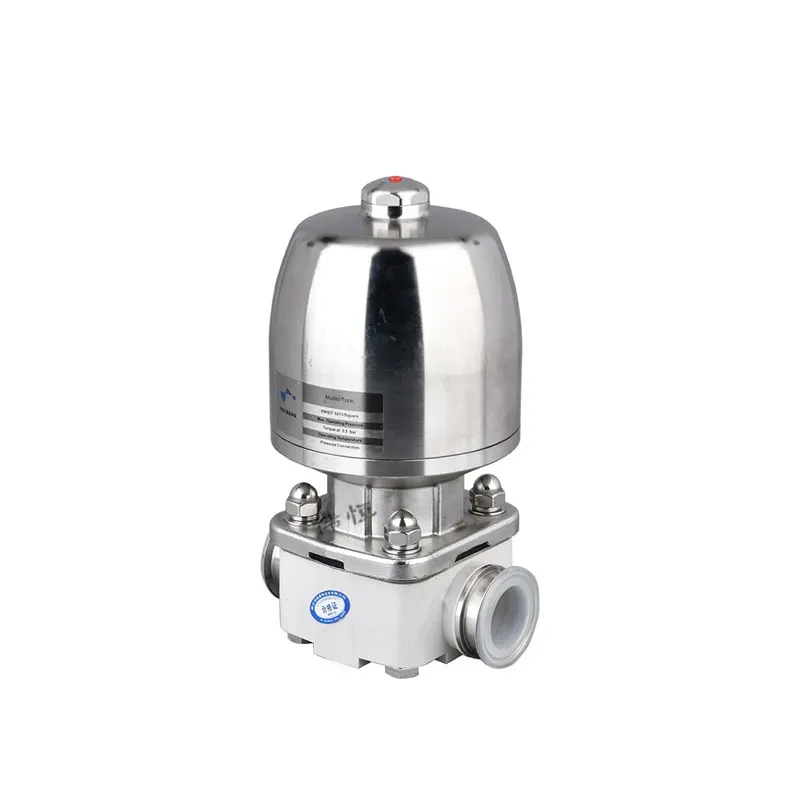

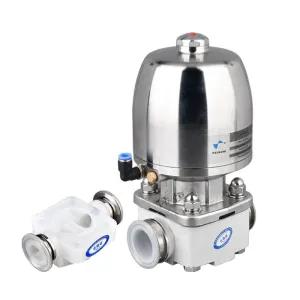

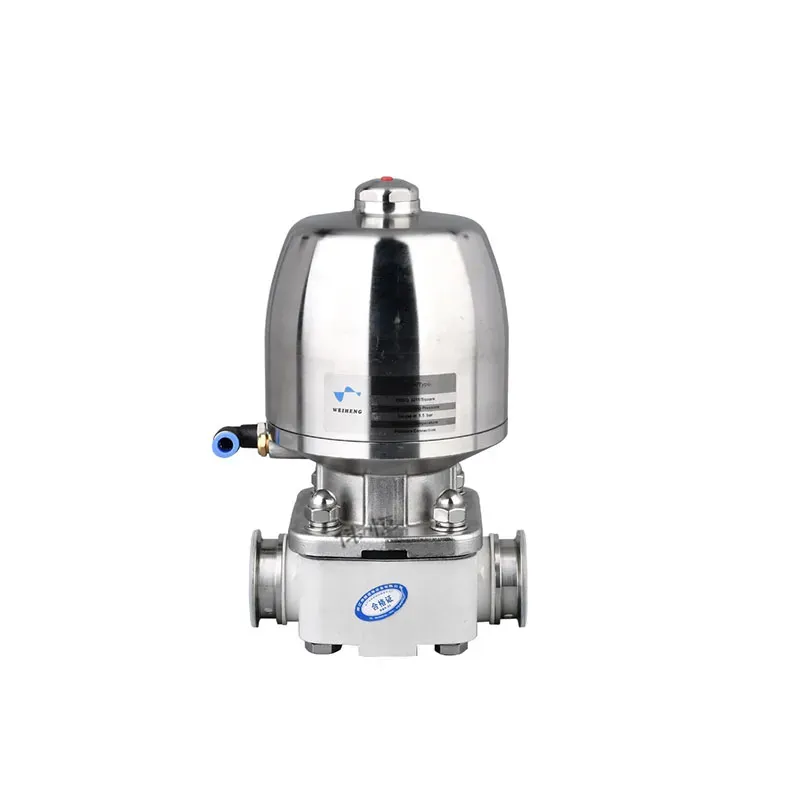

 Introduction to WH Sanitary Stainless Steel Pneumatic Fluorine Lined Diaphragm Valve

The WH Sanitary Stainless Steel Pneumatic Fluorine Lined Diaphragm Valve is a high-performance industrial valve designed for applications requiring strict hygiene, corrosion resistance, and precise flow control. This valve is widely used in industries such as pharmaceuticals, food & beverage, biotechnology, and chemical processing, where contamination-free operation is critical.

With its stainless steel construction and fluorine-lined diaphragm, this valve ensures superior durability, chemical resistance, and leak-proof performance. The pneumatic actuation allows for automated control, making it ideal for high-efficiency production lines.

In this comprehensive guide, we will explore the key features, benefits, applications, and technical specifications of the WH Sanitary Stainless Steel Pneumatic Fluorine Lined Diaphragm Valve, helping you understand why it is a top choice for sanitary fluid control.

---

 Key Features of WH Sanitary Stainless Steel Pneumatic Fluorine Lined Diaphragm Valve

 1. Sanitary Design for Hygienic Applications

The WH sanitary diaphragm valve is designed to meet 3-A, ASME BPE, and FDA standards, ensuring compliance with strict hygiene requirements. Its smooth, crevice-free surface prevents bacterial growth and facilitates easy cleaning (CIP/SIP).

 2. High-Quality Stainless Steel Construction

Made from 316L or 304 stainless steel, this valve offers excellent corrosion resistance and durability, making it suitable for aggressive media and high-purity applications.

 3. Fluorine-Lined Diaphragm for Chemical Resistance

The PTFE (Teflon) or PFA-lined diaphragm provides exceptional resistance to acids, alkalis, solvents, and corrosive chemicals, ensuring long service life even in harsh environments.

 4. Pneumatic Actuation for Automated Control

Equipped with a pneumatic actuator, this valve allows for remote and automated operation, improving efficiency in industrial processes. The actuator can be configured for single-acting (spring return) or double-acting operation.

 5. Bubble-Tight Sealing & Zero Leakage

The diaphragm sealing mechanism ensures zero leakage, preventing cross-contamination and ensuring process integrity. This makes it ideal for sterile and ultra-clean applications.

 6. Easy Maintenance & Long Service Life

The modular design allows for quick disassembly and maintenance without requiring special tools. The wear-resistant diaphragm extends valve lifespan, reducing downtime and replacement costs.

 7. Multiple Connection Types Available

The valve supports various sanitary connections, including:

- Tri-clamp (DIN 32676, SMS, ISO 2853)

- Butt weld (ASME BPE)

- Flanged (DIN, ANSI, JIS)

---

 Applications of WH Sanitary Pneumatic Fluorine Lined Diaphragm Valve

Due to its hygienic design, chemical resistance, and automation compatibility, this valve is widely used in:

 1. Pharmaceutical & Biotech Industry

- Sterile processing

- Vaccine production

- API (Active Pharmaceutical Ingredient) manufacturing

- Clean-in-Place (CIP) systems

 2. Food & Beverage Industry

- Dairy processing

- Breweries & distilleries

- Juice & soft drink production

- High-purity water systems

 3. Chemical & Petrochemical Industry

- Acid & alkali handling

- Solvent transfer

- Aggressive chemical dosing

 4. Semiconductor & Electronics Industry

- Ultra-pure water systems

- Chemical mechanical planarization (CMP)

- Wafer fabrication

 5. Water & Wastewater Treatment

- Chemical dosing

- Reverse osmosis (RO) systems

- Disinfection processes

---

 Technical Specifications

| Parameter            | Specification |

|--------------------------|------------------|

| Valve Type           | Sanitary Diaphragm Valve |

| Body Material        | 316L / 304 Stainless Steel |

| Diaphragm Material   | PTFE, PFA, EPDM, FKM |

| Connection Type      | Tri-clamp, Butt Weld, Flanged |

| Size Range           | 1/2" to 4" (DN15 to DN100) |

| Pressure Rating      | Up to 10 bar (145 psi) |

| Temperature Range    | -20°C to 180°C (-4°F to 356°F) |

| Actuator Type        | Pneumatic (Single/Double-Acting) |

| Air Pressure         | 4-7 bar (58-102 psi) |

| Standards Compliance | 3-A, ASME BPE, FDA, EHEDG |

---

 Advantages Over Traditional Valves

Compared to ball valves, butterfly valves, or globe valves, the WH Sanitary Pneumatic Diaphragm Valve offers:

✅ Superior Hygiene – No dead zones, easy to clean

✅ Corrosion Resistance – Ideal for aggressive chemicals

✅ Zero Leakage – Bubble-tight sealing

✅ Automation-Ready – Compatible with PLC & SCADA systems

✅ Longer Lifespan – Reduced maintenance costs

---

 How to Select the Right WH Sanitary Diaphragm Valve?

When choosing a WH Sanitary Stainless Steel Pneumatic Fluorine Lined Diaphragm Valve, consider:

1. Fluid Type – Is it corrosive, viscous, or sterile?

2. Temperature & Pressure – Ensure compatibility with process conditions.

3. Connection Type – Tri-clamp, weld, or flanged?

4. Actuator Requirement – Single-acting or double-acting?

5. Industry Standards – 3-A, ASME BPE, or FDA compliance.

---

 Conclusion

The WH Sanitary Stainless Steel Pneumatic Fluorine Lined Diaphragm Valve is a high-performance, hygienic, and corrosion-resistant solution for industries requiring sterile and automated fluid control. With its PTFE/PFA-lined diaphragm, stainless steel body, and pneumatic actuation, it ensures reliable, leak-proof operation in critical applications.

Whether in pharmaceuticals, food processing, chemicals, or water treatment, this valve provides long-term durability, easy maintenance, and compliance with global sanitary standards.

For more details on sizing, pricing, and customization, consult with a trusted valve supplier to ensure optimal performance for your specific application.

---

 FAQs

Q1: What is the difference between a PTFE-lined and PFA-lined diaphragm?

- PTFE (Teflon) offers excellent chemical resistance but has lower flexibility.

- PFA provides similar chemical resistance with better flexibility, ideal for frequent cycling.

Q2: Can this valve handle high-purity water applications?

Yes, the sanitary design and smooth surface finish make it suitable for ultra-pure water (UPW) systems.

Q3: Is the valve suitable for CIP/SIP cleaning?

Absolutely! The crevice-free design allows for Clean-in-Place (CIP) and Sterilize-in-Place (SIP) processes.

Q4: What is the expected service life of the diaphragm?

Depending on the application, the PTFE/PFA diaphragm can last 2-5 years before replacement.

Q5: Can the valve be manually operated if needed?

Yes, some models come with a manual override option for emergency use.

---

By choosing the WH Sanitary Stainless Steel Pneumatic Fluorine Lined Diaphragm Valve, you invest in reliability, efficiency, and compliance for your critical fluid control processes.

Looking for a trusted supplier? Contact industry experts to find the best valve solution for your needs!

---
