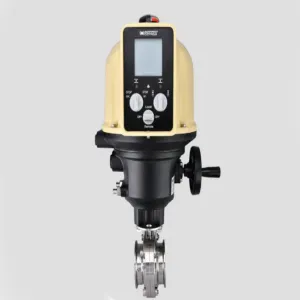

hygienic butterfly valve with actuator – Complete Guide

A hygienic butterfly valve with actuator is an essential control component in modern sanitary processing systems. Whether used in food, beverage, dairy, pharmaceutical, or cosmetic industries, this valve ensures reliable flow control, superior hygiene, and automation-friendly performance.

This comprehensive product introduction explains everything you need to know about the sanitary pneumatic or electric actuated butterfly valve — its features, working principle, advantages, technical specifications, and typical applications across multiple industries.

What Is a Hygienic Butterfly Valve with Actuator?

A hygienic butterfly valve is a type of stainless steel Sanitary Valve that uses a rotating disc to control the flow of liquids. When the disc (or “butterfly”) is turned 90 degrees, it either allows full flow or completely shuts off the line.

When equipped with an actuator — pneumatic or electric — the valve can be opened or closed automatically, allowing precise and efficient control of liquid, gas, or steam flow in clean-in-place (CIP) and sterilize-in-place (SIP) systems.

Common Names:

• Sanitary actuated butterfly valve

• Hygienic pneumatic butterfly valve

• Tri-clamp butterfly valve with actuator

• Food-grade butterfly valve

• Automatic Sanitary Butterfly Valve

Main Components of a Hygienic Butterfly Valve with Actuator

1. Valve Body – Constructed from high-quality 304 or 316L stainless steel, ensuring corrosion resistance and long service life.

2. Disc (Butterfly Plate) – Controls the flow path; polished to a mirror finish for maximum cleanliness.

3. Seal (Gasket/Seat) – Made from FDA-approved materials such as EPDM, PTFE, or silicone.

4. Actuator – Can be pneumatic (air-operated) or electric; provides automated valve movement.

5. Connection Ends – Typically tri-clamp, weld, or thread, allowing easy installation in Sanitary Pipelines.

6. Position Feedback Unit (Optional) – Detects valve position for automation control systems.

7. Control Head (Optional) – Integrates sensors, solenoids, and visual indicators for automated monitoring.

Working Principle

When air or electrical energy is applied to the actuator, it rotates the valve shaft by 90 degrees:

• Open position: The disc is parallel to the flow, allowing fluid to pass freely.

• Closed position: The disc is perpendicular to the flow, blocking the passage completely.

The actuator can be configured as:

• Single-acting (spring return): Automatically returns to a safe position when air is lost.

• Double-acting: Requires air pressure for both opening and closing actions.

This automation provides high accuracy, repeatability, and safety in sanitary process control.

Key Features of Hygienic Butterfly Valves with Actuators

1. Full Bore Design – Ensures unrestricted fluid flow with minimal pressure loss.

2. Polished Surface Finish – Internal Ra ≤ 0.8 μm for easy cleaning and sterilization.

3. Compact Structure – Space-saving and lightweight for easy installation.

4. Durable Construction – Stainless steel 316L body resists corrosion and chemical attack.

5. Fast Operation – Quick open/close response with pneumatic or electric actuation.

6. Low Torque Requirement – Smooth operation even at high flow rates.

7. Flexible Mounting Options – Available with clamp, weld, or flange ends.

8. Hygienic Sealing Design – FDA-compliant elastomers prevent leakage and contamination.

9. Automation Ready – Compatible with PLC systems, sensors, and process controllers.

10. CIP/SIP Compatible – Designed for clean-in-place and sterilize-in-place processes.

Functions of a Hygienic Butterfly Valve with Actuator

Hygienic actuated butterfly valves serve several important process functions across industries:

1. Flow Regulation – Control the flow rate of liquids or gases with precise modulation.

2. Shutoff/Isolation – Provide tight sealing when closed, preventing product loss or contamination.

3. Direction Control – Switch or divert process flow between pipelines.

4. Automation Integration – Operate via pneumatic or electric signals, allowing remote or automatic control.

5. Safety Assurance – Spring-return actuators ensure default safe position during power or air failure.

6. Process Optimization – Enable efficient sequencing and timing in automated systems.

Advantages of Hygienic Butterfly Valves with Actuators

1. Excellent Hygiene and Cleanability

• Mirror-polished surfaces prevent residue buildup.

• Internal design eliminates dead spaces where bacteria could grow.

• Fully compatible with CIP/SIP cleaning systems.

• All materials meet 3-A Sanitary, EHEDG, and ASME BPE standards.

2. Automation and Efficiency

• Pneumatic or electric actuator provides instant and repeatable motion.

• Reduces manual labor and improves consistency.

• Ideal for integration with automated production lines and process control systems.

3. Energy-Saving Design

• Low operating torque means reduced air or power consumption.

• Lightweight structure requires smaller actuators and less energy to operate.

4. Easy Maintenance

• Clamp-style connection enables tool-free disassembly.

• Seals and seats can be replaced quickly without removing the valve from the line.

• Simple structure minimizes downtime during maintenance cycles.

5. Durability and Long Service Life

• Built from corrosion-resistant 316L stainless steel.

• Suitable for high-pressure and high-temperature applications.

• Elastomer seats provide strong sealing even after repeated operation cycles.

6. Versatility

• Suitable for liquids, gases, and semi-viscous materials.

• Works effectively in multiple industries: food, beverage, pharmaceutical, cosmetic, and water treatment.

7. Precise Control

• Optional control heads provide position feedback and signal communication.

• Enables full integration with PLC and SCADA systems for real-time automation.

8. Safety and Compliance

• FDA-approved materials guarantee product safety.

• Meets or exceeds international sanitary valve standards (3-A, EHEDG, ASME BPE).

• Leak-free operation ensures environmental and product safety.

Technical Specifications (Typical Reference)

Applications Across Industries

The hygienic butterfly valve with actuator is designed for multi-industry sanitary applications, including:
